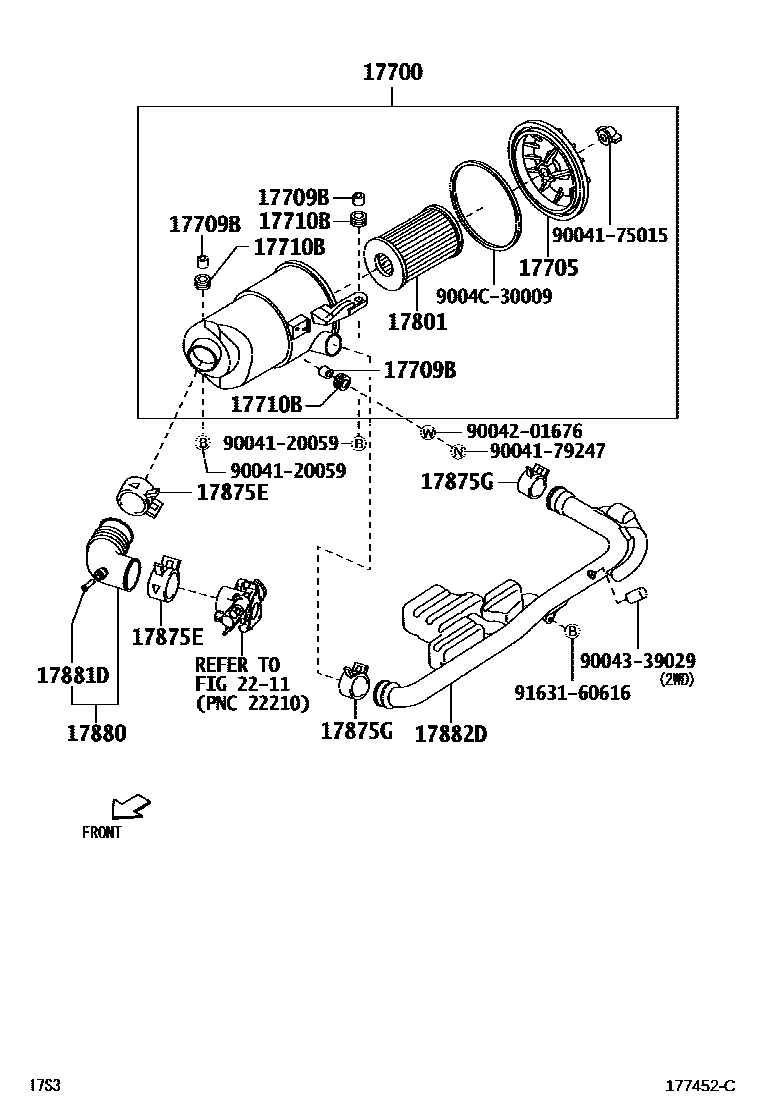

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-B2141iKFVE..S201,211201112

17705CAP SUB-ASSY, AIR CLEANER

main17705-87529iKFVE..S201,211201112

17709BSPACER, AIR CLEANER INLET

main90045-60163×3iKFVE..S201,211201112

17710BGROMMET

main90044-80405×3iKFVE..S201,211201112

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-87512iKFVE..S201,211201112

17875ECLIP(FOR HOSE, NO.2)

main90044-67476×2iKFVE..S201,211201112

17875GCLIP(FOR HOSE, NO.3)

main90044-68277×2iKFVE..S201,211201112

17880HOSE ASSY, AIR CLEANER

main17880-B2010iKFVE..S201,211201112

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90044-46416iKFVE..S201,211201112

17882DHOSE, COOL AIR INTAKE

main87211-B5030iKFVE..S201,211201112

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9004120059

main90041-20059

9004175015

main90041-75015

9004179247

main90041-79247

9004201676

main90042-01676

9004339029

main90043-39029

9004C30009

main9004C-30009

9163160616

main91631-60616

18 parts on this diagram · 1 diagram in section
