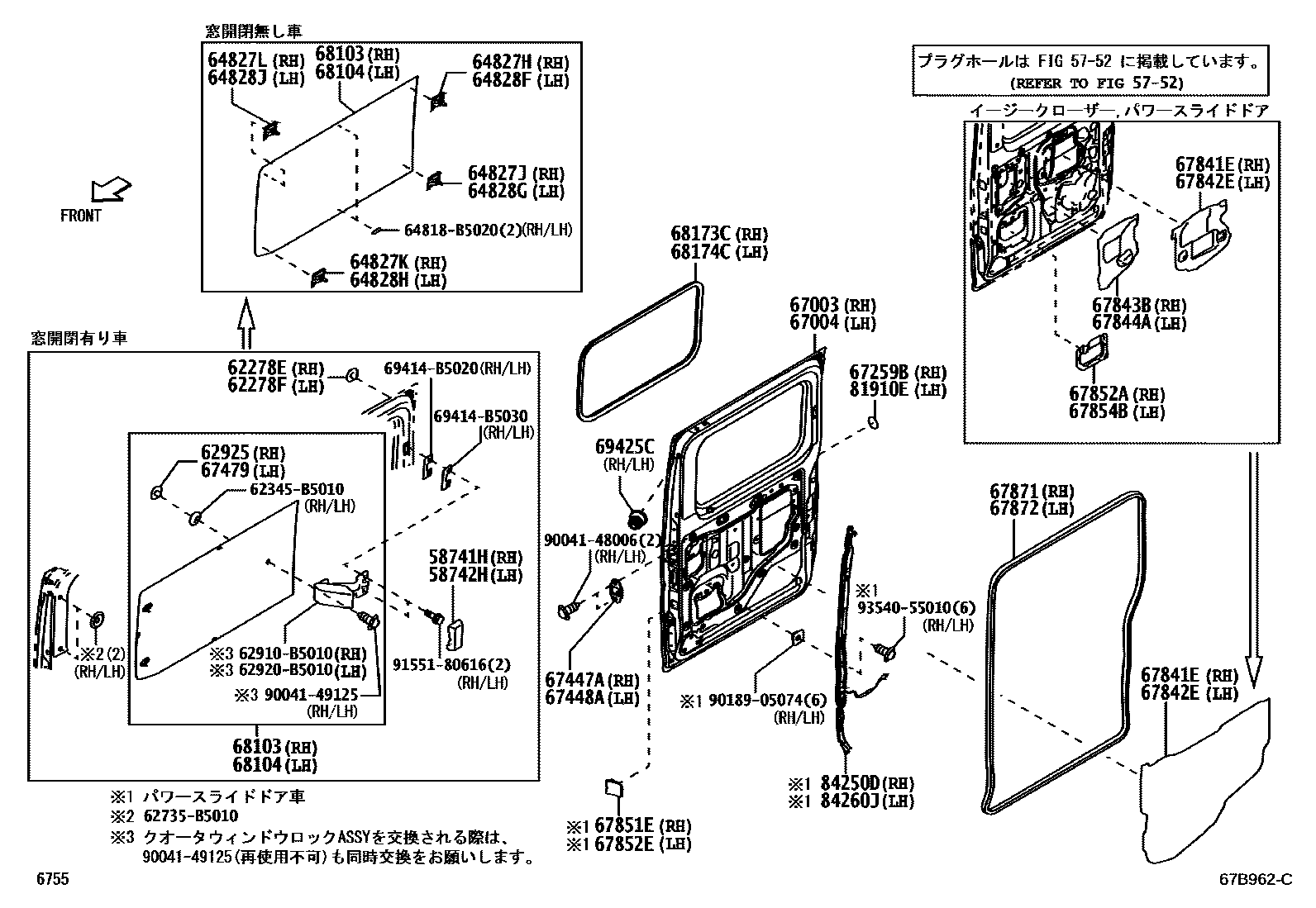

REAR DOOR PANEL & GLASS
5752HOLE PLUG
58741HPROTECTOR, SLIDE DOOR, RH
58742HPROTECTOR, SLIDE DOOR, LH
62278EPROTECTOR, SIDE WINDOW
62278FPROTECTOR, SIDE WINDOW
62925RETAINER, REAR DOOR WINDOW LOCK
64827HCLIP, REAR DOOR GLASS, NO.1 RH
64827JCLIP, REAR DOOR GLASS, NO.2 RH
64827KCLIP, REAR DOOR GLASS, NO.3 RH
64827LCLIP, REAR DOOR GLASS, NO.4 RH
64828FCLIP, REAR DOOR GLASS, NO.1 LH
64828GCLIP, REAR DOOR GLASS, NO.2 LH
64828HCLIP, REAR DOOR GLASS, NO.3 LH
64828JCLIP, REAR DOOR GLASS, NO.4 LH
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67259BREFLECTOR, SLIDE DOOR
67447APLATE, REAR DOOR INSIDE PANEL, RH
67448APLATE, REAR DOOR INSIDE PANEL, LH
67479RETAINER, REAR DOOR SIDE WINDOW, LOCK
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67851ECOVER, SLIDE DOOR SERVICE HOLE, RH
67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
67852ECOVER, SLIDE DOOR SERVICE HOLE, LH
67854BCOVER, SLIDE DOOR SERVICE HOLE, NO.3
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68173CWEATHERSTRIP, SLIDE DOOR GLASS, INNER RH
68174CWEATHERSTRIP, SLIDE DOOR GLASS, INNER LH
69425CCUSHION, SLIDE DOOR STOP
81910EREFLECTOR ASSY, REFLEX
84250DSENSOR ASSY, POWER SLIDE DOOR, RH
84260JSENSOR ASSY, POWER SLIDE DOOR, LH
62345B5010SPACER, REAR DOOR BELT, FRONT RH
main62345-B5010
62735B5010RETAINER, QUARTER WINDOW HINGE
main62735-B5010
62910B5010LOCK ASSY, QUARTER OR SIDE WINDOW, RH
main62910-B5010
62920B5010LOCK ASSY, QUARTER WINDOW, LH
main62920-B5010
64818B5020SPACER, BACK WINDOW GLASS
main64818-B5020
69414B5020SHIM, SLIDE DOOR DOWN STOP MALE
main69414-B5020
69414B5030SHIM, SLIDE DOOR DOWN STOP MALE
main69414-B5030
9004148006
main90041-48006
9004149125
main90041-49125
9018905074
main90189-05074
9155180616
main91551-80616
9354055010
main93540-55010
50 parts on this diagram · 2 diagrams in section
