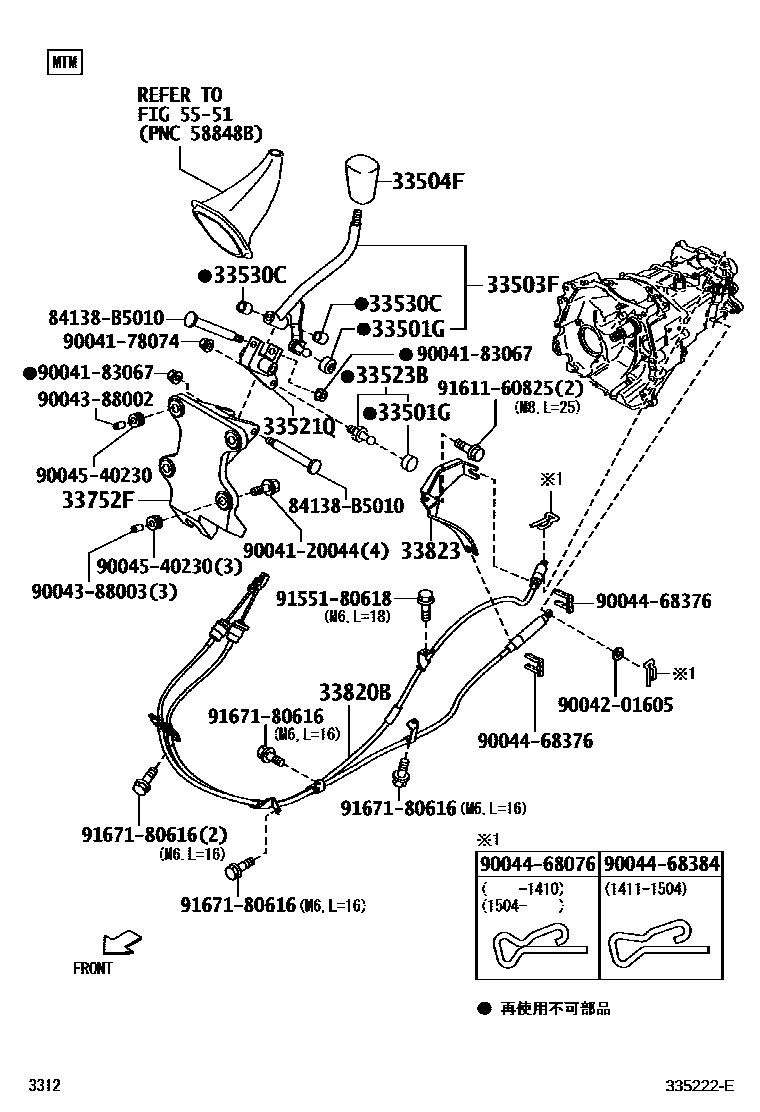

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90043-86132×2iS321,331..5F201711

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-B5010iS321,331..5F..PS1201112-201711

main33055-B5020iS321,331..5F201711

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-B2050-B1iS321,331..5F..PS1201112-201504

DK.GRAY,TRIM1#

main33504-B2050-C0iS321,331..5F201711

BLACK,TRIM2#

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-B5010iS321,331..5F201711

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main33523-B9010iS321,331..5F..PS1201112-201711

33530CBUSH (FOR SHIFT LEVER)

main90043-86133×2iS321,331..5F..PS1201112-201504

33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)

main33752-B5040iS321,331..5F..PS1201112-201504

main33752-B5050iS321,331..5F201711

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-B5060iS321,331..5F..PS1201112-201504

main33820-B5071iS321,331..4FC..PS1201112-201504

main33820-B5100iS321,331..4FC201504-201711

main33820-B5110iS321,331..4FC201711-201808

main33820-B5111iS321..4FC;S331..4FC..(PS3,PS6);S331..4FC..NTBO..PS5201808

main33820-B5120iS321,331..5F..NTBO201711

main33820-B5130iS321,331..5F..TBO201711

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-B5040iS321,331..5F201711

main33823-B5070iS331..4FC..TBO..PS5201711-202008

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

84138B5010

main84138-B5010

9004120044

main90041-20044

9004178074

main90041-78074

9004183067

main90041-83067

9004201605

main90042-01605

9004388002

main90043-88002

9004388003

main90043-88003

9004468076

main90044-68076

9004468376

main90044-68376

9004468384

main90044-68384

9004540230

main90045-40230

9155180618

main91551-80618

9161160825

main91611-60825

9167180616

main91671-80616

24 parts on this diagram · 6 diagrams in section
