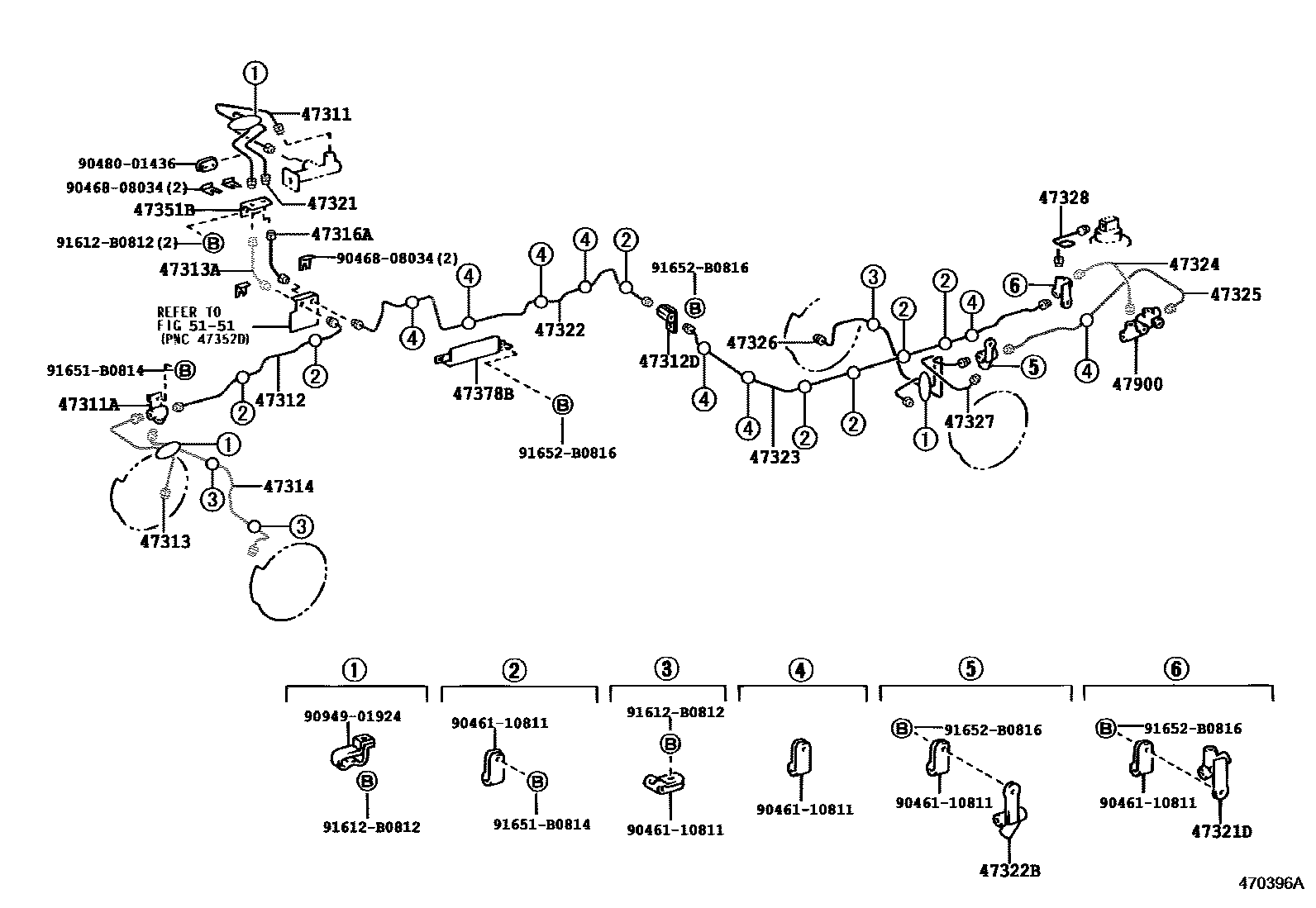

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-65050iBXD20199601-199906

main47311-65060iBXD20199906

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-13005iBXD20199601

47312TUBE, FRONT BRAKE, NO.2

main47312-65020iBXD20199601

47312DWAY, 2(FOR REAR BRAKE TUBE)

main90412-10006iBXD20199601

47313TUBE, FRONT BRAKE, NO.3

main47313-65030iBXD20199601

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main96950-32705iBXD20199601-200008

main96950-32707iBXD20200008

47314TUBE, FRONT BRAKE, NO.4

main47314-65030iBXD20199601

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96950-32705iBXD20199601-200008

main96950-32707iBXD20200008

47321TUBE, REAR BRAKE, NO.1

main47321-65020iBXD20199601-199906

main47321-65030iBXD20199906

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-12037iBXD20199601

main90904-13004iBXD20199601

47322TUBE, REAR BRAKE, NO.2

main47322-65010iBXD20199601

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90904-13003iBXD20199601

47323TUBE, REAR BRAKE, NO.3

main47323-65010iBXD20199601

47324TUBE, REAR BRAKE, NO.4

main47310-65010iBXD20199601

47325TUBE, REAR BRAKE, NO.5

main47320-65010iBXD20199601

47326TUBE, REAR BRAKE, NO.6

main47326-65020iBXD20199601

47327TUBE, REAR BRAKE, NO.7

main47327-65020iBXD20199601

47328TUBE, REAR BRAKE, NO.8

main47328-65010iBXD20199601

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-65020iBXD20199601-199906

main47351-65030iBXD20199906

47378BPROTECTOR, TUBE, UPPER

main17551-58070iBXD20199601

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-65010iBXD20199601

5151FRAME

→ Go to FIG 51-51

9046110811

main90461-10811

9046808034

main90468-08034

9048001436

main90480-01436

9094901924

main90949-01924

91612B0812

main91612-B0812

91651B0814

main91651-B0814

91652B0816

main91652-B0816

29 parts on this diagram · 2 diagrams in section
