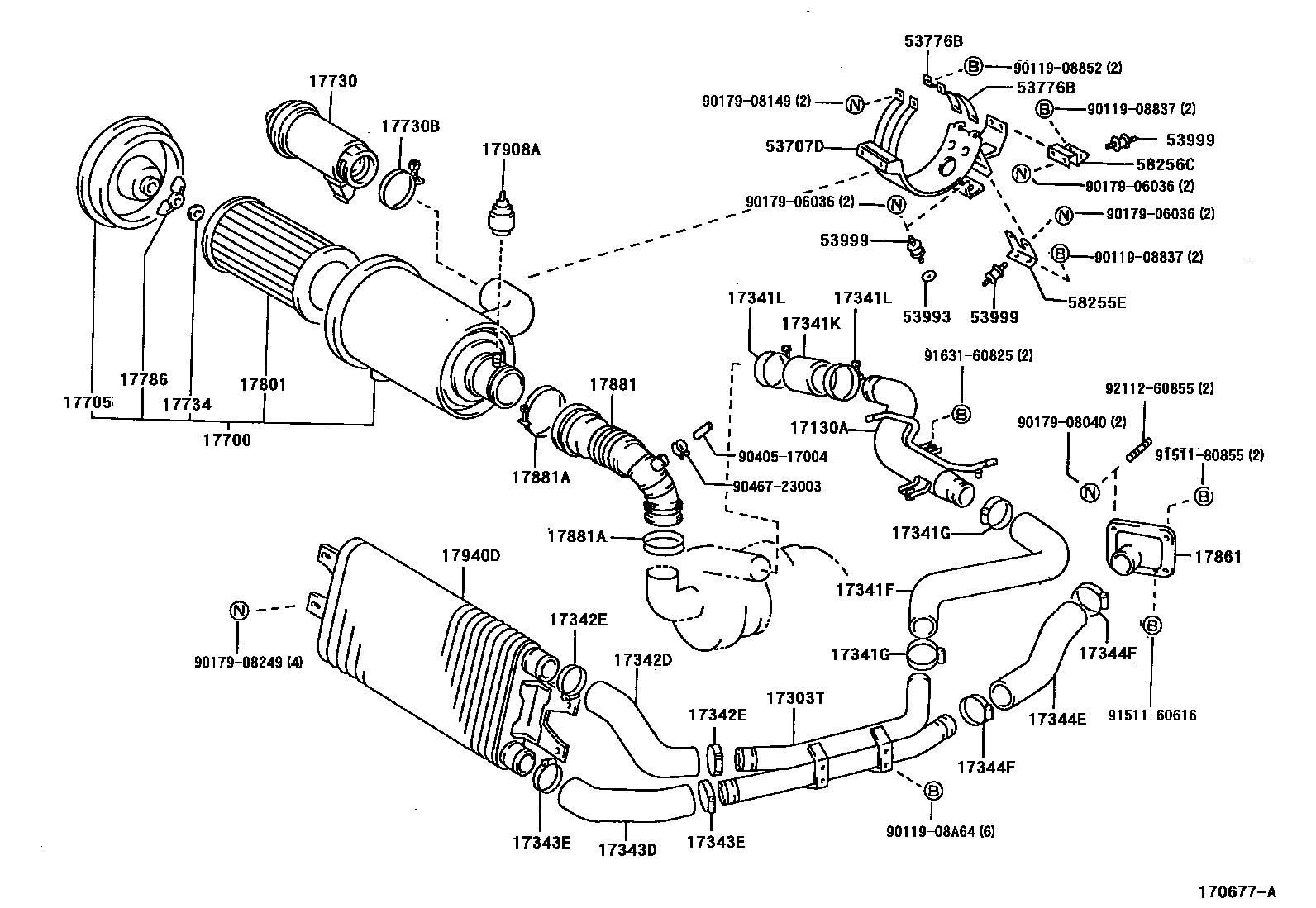

AIR CLEANER
17303TPIPE SUB-ASSY, AIR
17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)
17341KHOSE, AIR, NO.1(FOR INTERCOOLER)
17341LCLAMP, HOSE
17342DHOSE, AIR, NO.2
17342ECLAMP OR CLIP(FOR AIR HOSE, NO.2)
17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)
17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)
17705CAP SUB-ASSY, AIR CLEANER
17730PRECLEANER ASSY, AIR W/HOSE
17730BCLAMP, HOSE(FOR PRECLEANER HOSE)
17734SEAT, AIR CLEANER CAP SPRING
17786CLAMP, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
TURBO SIDE
TURBO SIDE
AIR CLEANER SIDE
AIR CLEANER SIDE
17908AINDICATOR SUB-ASSY, AIR CLEANER
53707DBRACKET SUB-ASSY, COOL AIR INTAKE, NO.3
53776BBRACKET, COOL AIR INTAKE DUCT MOUNT, NO.2
53993PACKING, AIR CLEANER INLET HOLE
53999CUSHION, AIR CLEANER INLET BRACKET
58255EBRACKET, AIR CLEANER
58256CBRACKET, AIR CLEANER, REAR
9011908837
main90119-08837
9011908852
main90119-08852
9011908A64
main90119-08A64
9017906036
main90179-06036
9017908040
main90179-08040
9017908149
main90179-08149
9017908249
main90179-08249
9040517004
main90405-17004
9046723003
main90467-23003
9151160616
main91511-60616
9151180855
main91511-80855
9163160825
main91631-60825
9211260855
main92112-60855
43 parts on this diagram · 2 diagrams in section
