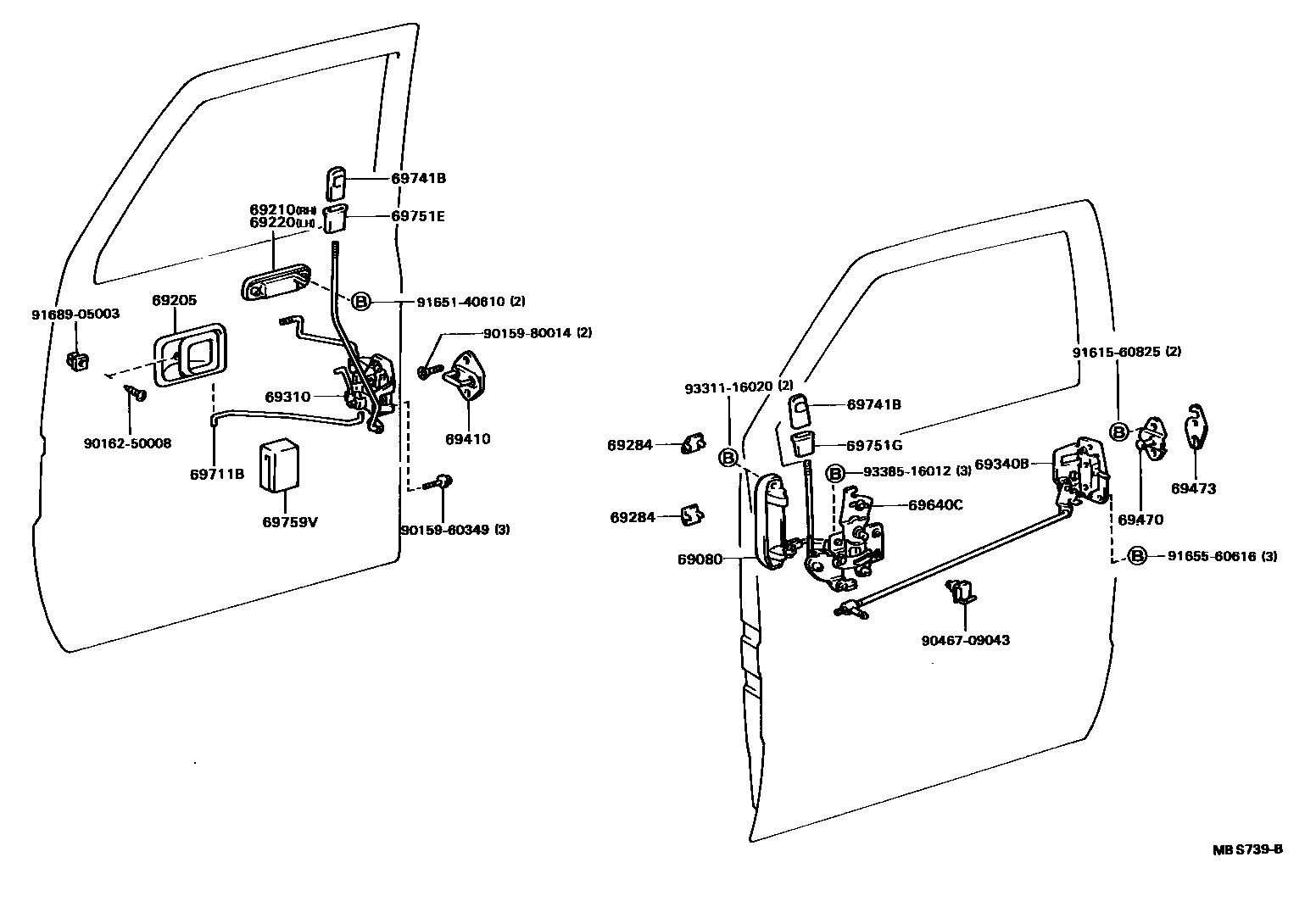

FRONT DOOR LOCK & HANDLE

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-90P80-03iCXC10,KXC10198907-199511

LIGHT GRAY,TRIM1#

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-33iCXC10,KXC10198907-199511

LIGHT GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-90P00iCXC10,KXC10198907-199511

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69240-87002iCXC10,KXC10198907-199511

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-33×2iCXC10,KXC10198907-199511

LIGHT GRAY,TRIM1#

69310LOCK ASSY, FRONT DOOR, RH

main69310-90P80iCXC10,KXC10198907-199511

69340BLOCK ASSY, SLIDE DOOR, LH

main69340-90P80iCXC10,KXC10198907-199511

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iCXC10,KXC10198907-199511

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-95700iCXC10,KXC10198907-199511

69473SPACER, SLIDE DOOR REAR LOCK STRIKER

main69474-95700iCXC10,KXC10198907-199511

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-90P80iCXC10,KXC10198907-199511

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-90P80iCXC10,KXC10198907-199511

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-90K00-33×2iCXC10,KXC10198907-199511

LIGHT GRAY,TRIM1#

69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69079-90K00-13iCXC10,KXC10198907-199501

LIGHT GRAY,TRIM1#

69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69079-90K00-13iCXC10,KXC10198907-199501

LIGHT GRAY,TRIM1#

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-30021iCXC10,KXC10198907-199511

9015960349

main90159-60349

9015980014

main90159-80014

9016250008

main90162-50008

9046709043

main90467-09043

9161560825

main91615-60825

9165140610

main91651-40610

9165560616

main91655-60616

9168905003

main91689-05003

9331116020

main93311-16020

9338516012

main93385-16012

26 parts on this diagram · 1 diagram in section
