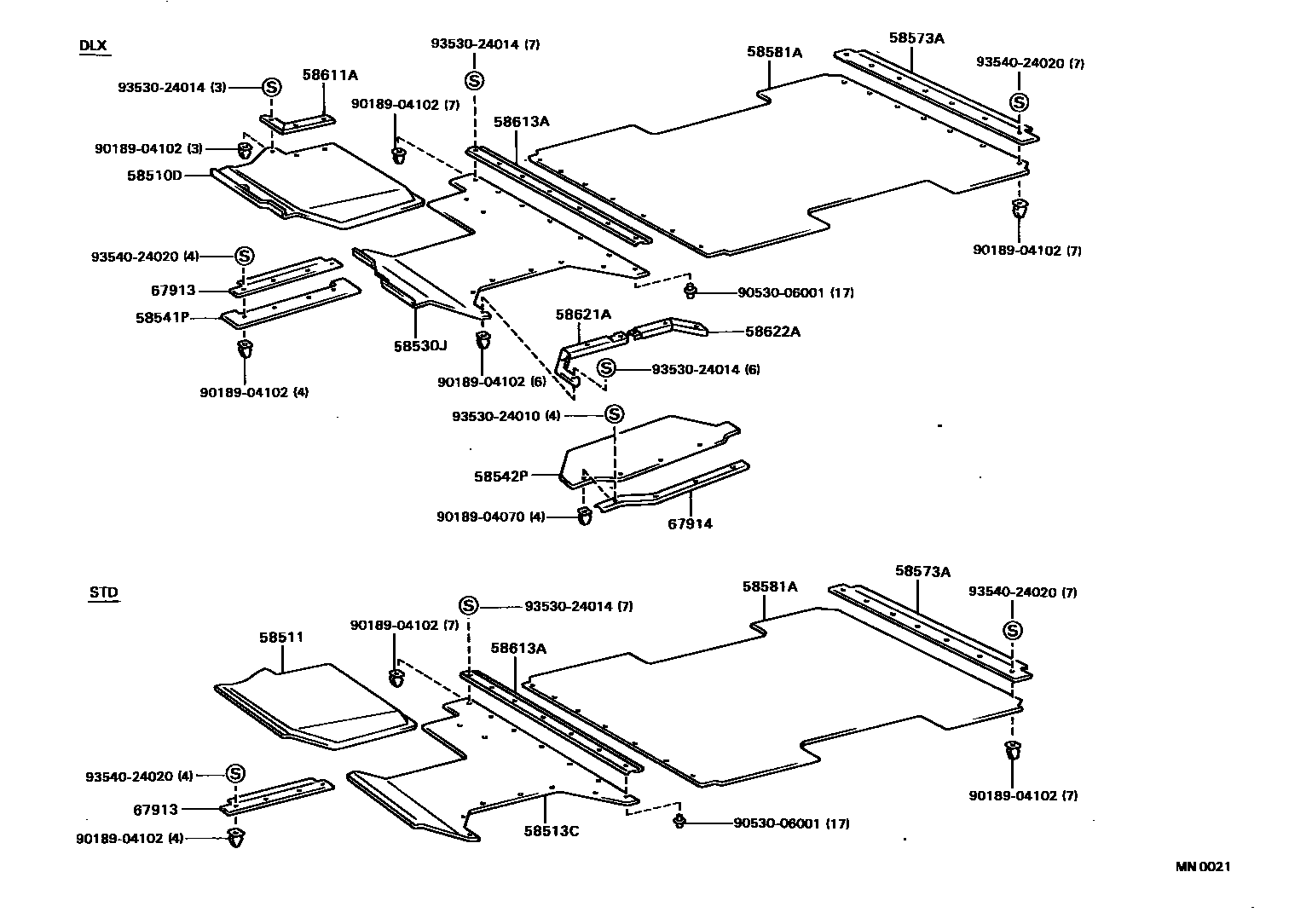

FLOOR MAT & SILENCER PAD

58510DCARPET ASSY, FLOOR, FRONT

main58510-38060-03iCXC10,KXC10..DX199105-199511

SHADOW GRAY,TRIM1#

main58510-90P80-03iKXC10..DX198907-198910

SHADOW GRAY,TRIM1#

main58510-90P81-03iKXC10..DX198910-199105

SHADOW GRAY,TRIM1#

58511MAT, FLOOR, FRONT

main58511-90P80-03iKXC10..STD198907-198910

SHADOW GRAY,TRIM1#

main58511-90P82-03iKXC10..STD198910-199511

SHADOW GRAY,TRIM1#

58513CMAT, FLOOR, FRONT CENTER

main58513-38010-B0iKXC10..STD199205-199511

SHADOW GRAY,TRIM1#

main58513-90P80-03iKXC10..STD198907-199205

SHADOW GRAY,TRIM1#

58530JCARPET ASSY, FLOOR, CENTER

main58530-38040-B0iCXC10,KXC10..DX199105-199205

SHADOW GRAY,TRIM1#

main58530-38041-B0iCXC10,KXC10..DX199205-199511

SHADOW GRAY,TRIM1#

main58530-90P80-03iKXC10..DX198907-199105

SHADOW GRAY,TRIM1#

58541PMAT, STEP, RH

main58541-38010-B0iCXC10,KXC10..DX199205-199511

SHADOW GRAY,TRIM1#

main58541-90P80-03iCXC10,KXC10..DX198907-199205

SHADOW GRAY,TRIM1#

58542PMAT, STEP, LH

main58542-90P80-03iCXC10,KXC10..DX198907-199511

SHADOW GRAY,TRIM1#

58573APLATE, REAR FLOOR MAT SUPPORT

main58573-90P80iCXC10,KXC10..DX; KXC10..STD198907-199511

main58573-90P81iKXC10..STD198907-199511

58581AMAT, REAR FLOOR

main58581-90P82-03iCXC10,KXC10198907-199511

SHADOW GRAY,TRIM1#

58611APLATE, MAT SET, NO.1 RH

main58611-38020iCXC10,KXC10..DX199104-199511

main58611-90P80iKXC10..DX198907-199104

58613APLATE, MAT SET, NO.3

main58613-90P80iCXC10,KXC10..DX; KXC10..STD198907-199511

main58613-90P81iKXC10..STD198907-199511

58621APLATE, MAT SET, NO.1 LH

main58621-38010iCXC10,KXC10..DX199104-199511

main58621-90P80iKXC10..DX198907-199104

58622APLATE, MAT SET, NO.2 LH

main58622-38010iCXC10,KXC10..DX199104-199511

main58622-90P80iKXC10..DX198907-199104

67913PLATE, FRONT DOOR SCUFF, RH

main67913-90P80iCXC10,KXC10..DX198907-199511

main67913-90P81iKXC10..STD198907-199511

67914PLATE, FRONT DOOR SCUFF, LH

main67914-90P80iCXC10,KXC10..DX198907-199511

9018904070

main90189-04070

9018904102

main90189-04102

9053006001

main90530-06001

9353024010

main93530-24010

9353024014

main93530-24014

9354024020

main93540-24020

20 parts on this diagram · 1 diagram in section
