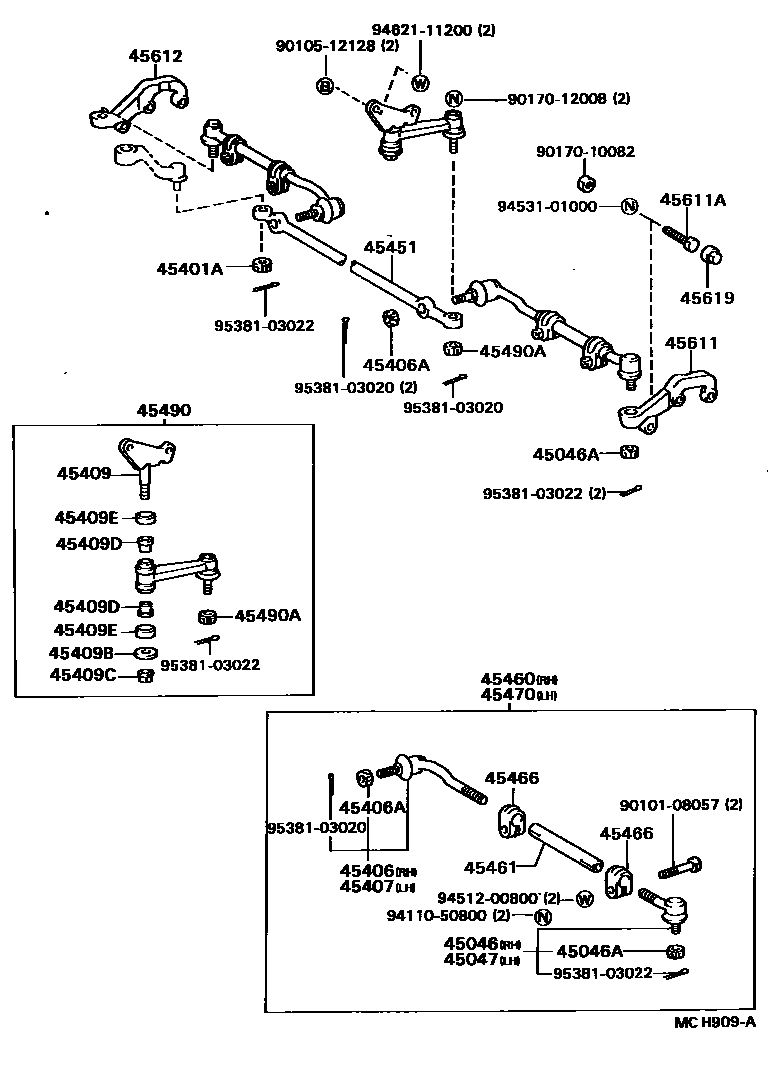

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45401ANUT, CASTLE(FOR PITMAN ARM)
45406ROD SUB-ASSY, TIE, RH
45406ANUT, CASTLE(FOR TIE ROD)
45407ROD SUB-ASSY, TIE, LH
45409SUPPORT SUB-ASSY, IDLER ARM
45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
45409CNUT(FOR IDLER ARM SUPPORT)
45409DBUSH(FOR IDLER ARM)
45409ESEAL, DUST(FOR IDLER ARM SUPPORT)
45451ROD, STEERING RELAY
45460ROD ASSY, TIE, RH
45461ROD, STEERING TIE
45466CLAMP, TIE ROD END
45470ROD ASSY, TIE, LH
45490ARM ASSY, STEERING IDLER
45490ANUT, CASTLE(FOR IDLER ARM)
45611ARM, STEERING KNUCKLE, RH
45611ABOLT, KNUCKLE STOPPER
45612ARM, STEERING KNUCKLE, LH
45619COVER, KNUCKLE STOPPER
9010108057
main90101-08057
9010512128
main90105-12128
9017010082
main90170-10082
9017012008
main90170-12008
9411050800
main94110-50800
9451200800
main94512-00800
9453101000
main94531-01000
9462111200
main94621-11200
9538103020
main95381-03020
9538103022
main95381-03022
34 parts on this diagram · 6 diagrams in section
