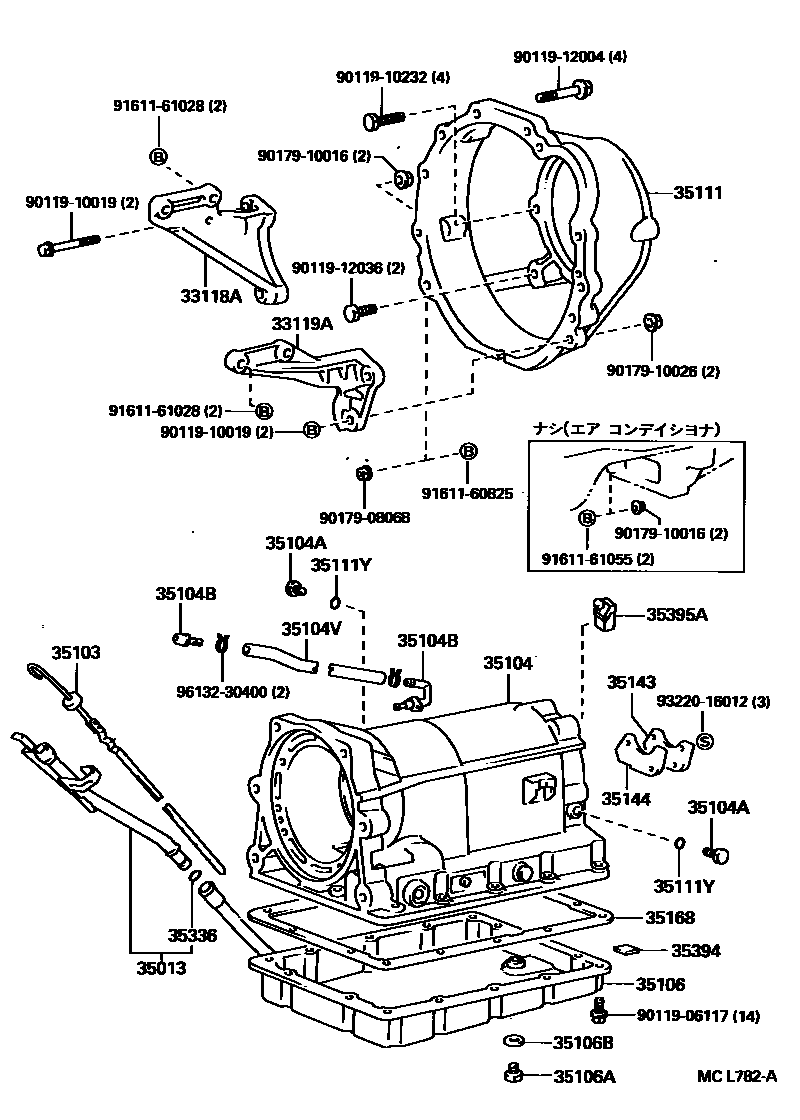

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A41 0002 1A42D

33118APLATE, STIFFENER, RH(ATM)

main33118-12080iKXC10..3HC199105-199511

main33118-14033iCXC10..4HC199105-199409

33119APLATE, STIFFENER, LH(ATM)

main33119-12050iKXC10..3HC199105-199511

main33119-14050iCXC10..4HC199105-199409

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-27060iCXC10..4HC199105-199409

main35013-27070iKXC10..3HC199105-199511

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-27041iCXC10..4HC199105-199409

main35103-27050iKXC10..3HC199105-199511

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22026iKXC10..3HC199105-199511

main35104-26021iCXC10..4HC199105-199409

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iCXC10,KXC10..ATM199105-199511

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iCXC10,KXC10..ATM199105-199511

T/M CASE SIDE

main90930-03099iCXC10,KXC10..ATM199105-199511

BODY SIDE

35104VHOSE (FOR BREATHER PLUG)

main90445-11084iCXC10,KXC10..ATM199105-199204

main90445-11096iCXC10,KXC10..ATM199204-199511

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22021iKXC10..3HC199105-199411

main35106-22022iKXC10..3HC199411-199511

main35106-30051iCXC10..4HC199105-199409

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iCXC10,KXC10..ATM199105-199511

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iCXC10,KXC10..ATM199105-199511

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-27030iCXC10..4HC199105-199409

main35111-27040iKXC10..3HC199105-199511

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iCXC10,KXC10..ATM199105-199511

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iCXC10,KXC10..ATM199105-199511

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iCXC10,KXC10..ATM199105-199511

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iCXC10,KXC10..ATM199105-199511

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iCXC10,KXC10..ATM199105-199511

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iCXC10,KXC10..ATM199105-199511

35395ASTRAINER, GOVERNOR OIL

main35395-40010iCXC10,KXC10..ATM199105-199511

9011906117

main90119-06117

9011910019

main90119-10019

9011910232

main90119-10232

9011912004

main90119-12004

9011912036

main90119-12036

9017908068

main90179-08068

9017910016

main90179-10016

9017910026

main90179-10026

9161160825

main91611-60825

9161161028

main91611-61028

9161161055

main91611-61055

9322016012

main93220-16012

9613230400

main96132-30400

32 parts on this diagram · 2 diagrams in section
