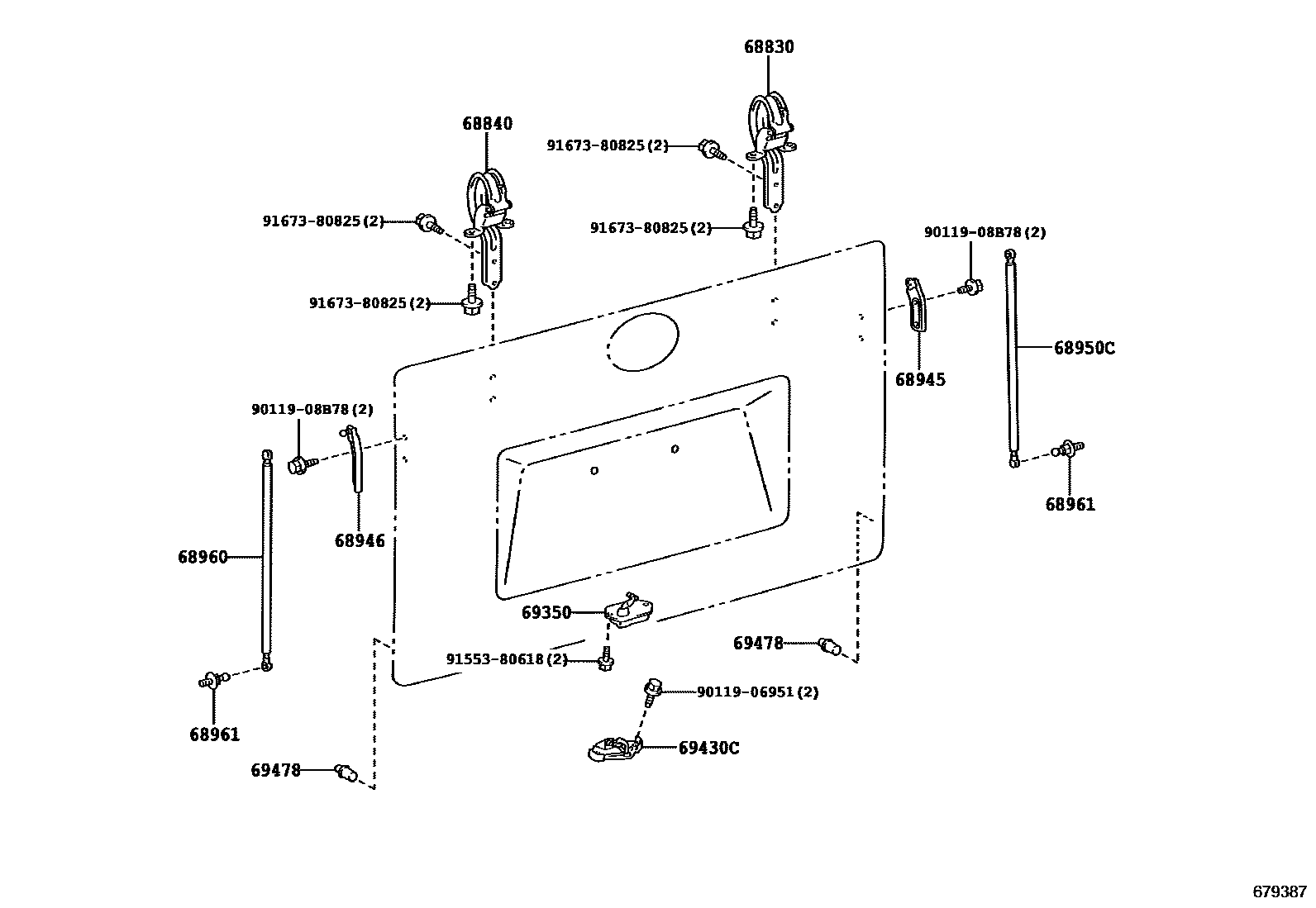

BACK DOOR LOCK & HINGE

0001 1��������� 0002 1���������������(���� & ��� & 0003 1���������������(����������)

68830HINGE ASSY, BACK DOOR, RH

main68803-36030iXZB70..29S;XZB60..25S..5F202201-202312

68840HINGE ASSY, BACK DOOR, LH

main68803-36030iXZB70..29S;XZB60..25S..5F202201-202312

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-36010iXZB70..29S;XZB60..25S..5F202201-202312

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-36010iXZB70..29S;XZB60..25S..5F202201-202312

68950CSTAY ASSY, BACK DOOR, RH

main68950-36080iXZB70..29S;XZB60..25S..5F202201-202312

68960STAY ASSY, BACK DOOR, LH

main68950-36080iXZB70..29S;XZB60..25S..5F202201-202312

68961BOLT, BACK DOOR STAY

main68961-47010×2iXZB70..29S;XZB60..25S..5F202201-202312

69350LOCK ASSY, BACK DOOR

main69110-36060iXZB60..09S;XZB70..24S..5F;XZB70,80..(13S,21S,24S)..HDCR201701-202201

main69350-36030iXZB60..25S..6FC201701

main69350-36060iXZB60..6FC..S201701

main69110-36050iXZB60,70..25S,29S201701-201807

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-90B02iXZB70..29S;XZB60..25S..5F202201-202312

main69430-95702iGDB60,70,80..09S,13S,24S,39S202201-202412

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-48020×2iXZB70..29S;XZB60..25S..5F202201-202312

9011906951

main90119-06951

9011908B78

main90119-08B78

9155380618

main91553-80618

9167380825

main91673-80825

14 parts on this diagram · 3 diagrams in section
