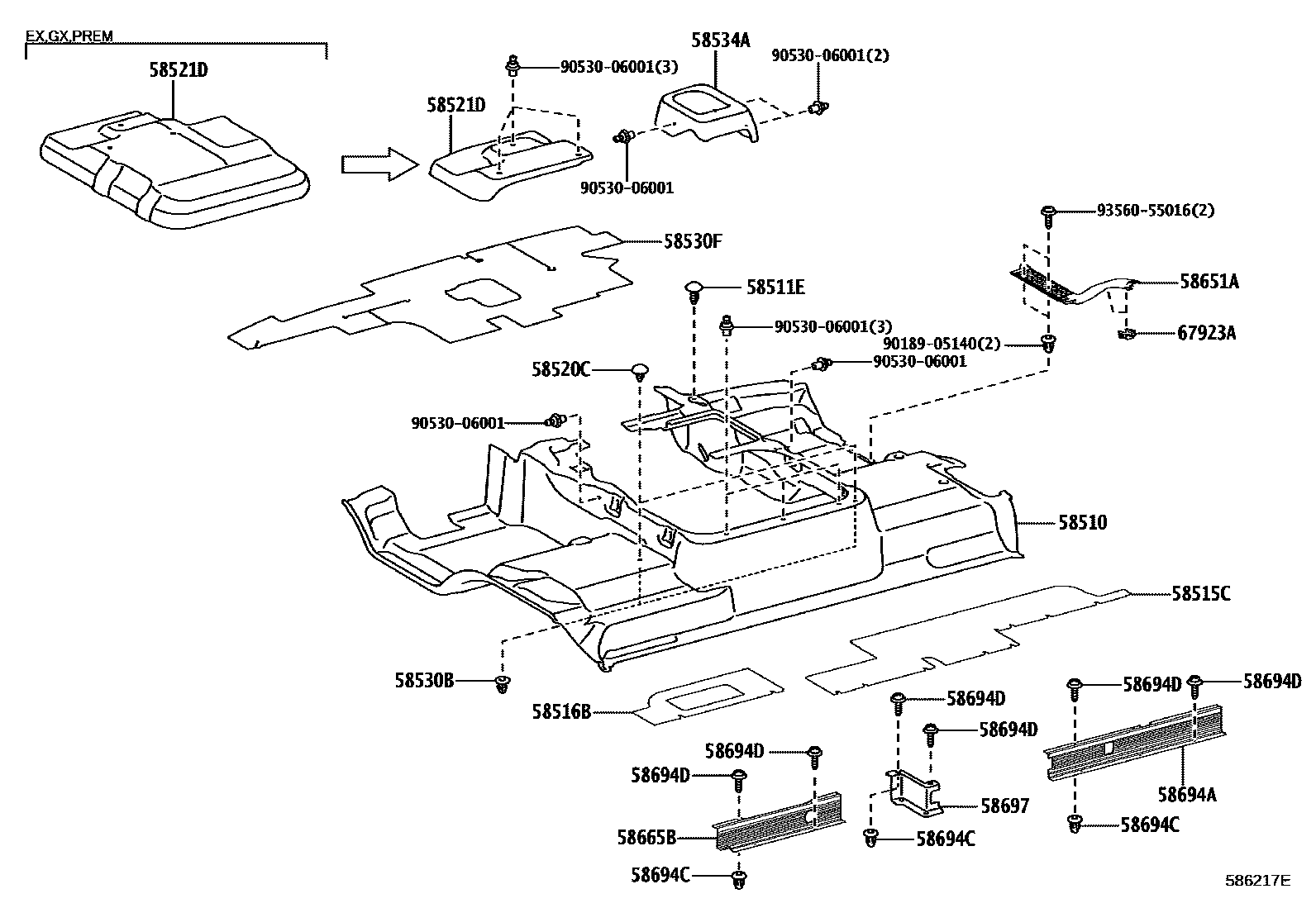

FLOOR MAT & SILENCER PAD

0001 1���� 0002 1�� 0003 1�� 0004 1����������� & ���������������0005 1�������� 0006 1�������������

58510MAT ASSY, FRONT FLOOR, FRONT NO.1

main58510-36F40-B0iXZB60,70..5F..S201701-201908

MD.GRAY,TRIM1#

main58510-36F50-B0iXZB60,70..6FC..S201701-201908

MD.GRAY,TRIM1#

main58510-36F70-B0iXZB60,70..5F..LX202201-202312

MD.GRAY,TRIM1#

main58510-36F90-B0iXZB60..09S;XZB70..29S..6FC..LX202201-202312

MD.GRAY,TRIM1#

main58510-36G10-B0iXZB60,70..5F..GX202201-202312

MD.GRAY,TRIM1#

main58510-36G30-B0iXZB70,80..(EX,GX)..HDCR;XZB70..29S..6FC..GX..DCR; XZB70..PREM202201-202312

MD.GRAY,TRIM1#; MD.GRAY,TRIM2#

main58510-36K60-B0iXZB60..6FC..S201908

MD.GRAY,TRIM1#

main58510-36K70-B0iXZB60,70..5F..S201908-202201

MD.GRAY,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-05164-B5iXZB60..5F;XZB60..09S;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR; XZB70..PREM202201-202312

MD.GRAY,TRIM1#; MD.GRAY,TRIM2#

58515CMAT, FRONT FLOOR, REAR NO.1

main58540-36A80-B0iXZB60..09S;XZB70..29S;XZB60..25S..5F;XZB70,80..(13S,24S)..HDCR; XZB70..PREM202201-202312

MD.GRAY,TRIM1#; MD.GRAY,TRIM2#

main58540-36A90-B0iXZB80..HDCR202101-202201

58516BMAT, FRONT FLOOR, REAR NO.2

main58540-36B90-B0iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

main58540-36B91-B0iGDB60,70,80..GX,LX202312-202412

MD.GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main64726-26010-B0×2iXZB60..5F;XZB60..09S;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR; XZB70..PREM202201-202312

MD.GRAY,TRIM1#; MD.GRAY,TRIM2#

58521DMAT, ENGINE SERVICE HOLE COVER

main58521-36180-B0iXZB70..PREM202006-202201

MD.GRAY,TRIM1#,2#

main58521-36200-B0iXZB70..(09S,24S)..6FC..LX;XZB60,80..(13S,25S,39S)..6FC..(LX,S)201701

MD.GRAY,TRIM1#

main58521-V4010-B0iGDB60,70,80..LX,S202201-202412

MD.GRAY,TRIM1#

main58521-V4030-B0iGDB60,70..GX202201-202412

MD.GRAY,TRIM1#

58530BCLIP(FOR FRONT FLOOR CARPET)

main64779-26020×2iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

58530FMAT ASSY, HEADER

main58530-36040-B0iXZB70..EX; XZB70..PREM202201-202312

MD.GRAY,TRIM1#; MD.GRAY,TRIM2#

58534AMAT, TRANSMISSION COVER

main58534-36070-B0iXZB60,70..5F202201-202312

MD.GRAY,TRIM1#

58651APLATE, FRONT DOOR MAT, NO.1

main58651-36030-B0iXZB60..5F;XZB60..09S;XZB70..29S,49S;XZB70,80..(13S,24S)..HDCR; XZB70..PREM202201-202312

MD.GRAY,TRIM1#; MD.GRAY,TRIM2#

58665BPLATE, REAR FLOOR, CENTER LOWER NO.1 LH

main58665-36110-B0iXZB60..09S;XZB70..29S;XZB60..25S..5F;XZB70,80..(13S,24S)..HDCR; XZB70..PREM202201-202312

MD.GRAY,TRIM1#; MD.GRAY,TRIM2#

main58665-36120-B0iXZB80..HDCR202101-202201

58694APLATE, MAT SET, UPPER

main58694-36140-B0iXZB60..09S;XZB70..29S;XZB60..25S..5F;XZB70,80..(13S,24S)..HDCR; XZB70..PREM202201-202312

MD.GRAY,TRIM1#; MD.GRAY,TRIM2#

main58694-36230-B0iXZB80..DCR202101

58694CGROMMET(FOR MAT SET PLATE)

main90189-05140×12iXZB60..09S;XZB60..25S..5F;XZB70..21S,29S;XZB70,80..(13S,24S)..HDCR202201-202312

58694DSCREW(FOR MAT SET PLATE)

main93560-55016×14iXZB60..09S;XZB70..(21S,29S)..6FC;XZB60,70..5F..(EX,GX,LX);XZB70,80..(13S,24S)..HDCR201701-202201

58697PLATE, REAR FLOOR MAT VERTICAL, NO.3

main58697-36030-B0iXZB60..09S;XZB70..29S;XZB60..25S..5F;XZB70,80..(13S,24S)..HDCR; XZB70..PREM202201-202312

MD.GRAY,TRIM1#; MD.GRAY,TRIM2#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main62566-36010×2iXZB60..5F;XZB60..09S;XZB70..21S,29S,49S;XZB70,80..(13S,24S)..HDCR202201-202312

9018905140

main90189-05140

9053006001

main90530-06001

9356055016

main93560-55016

19 parts on this diagram · 6 diagrams in section
