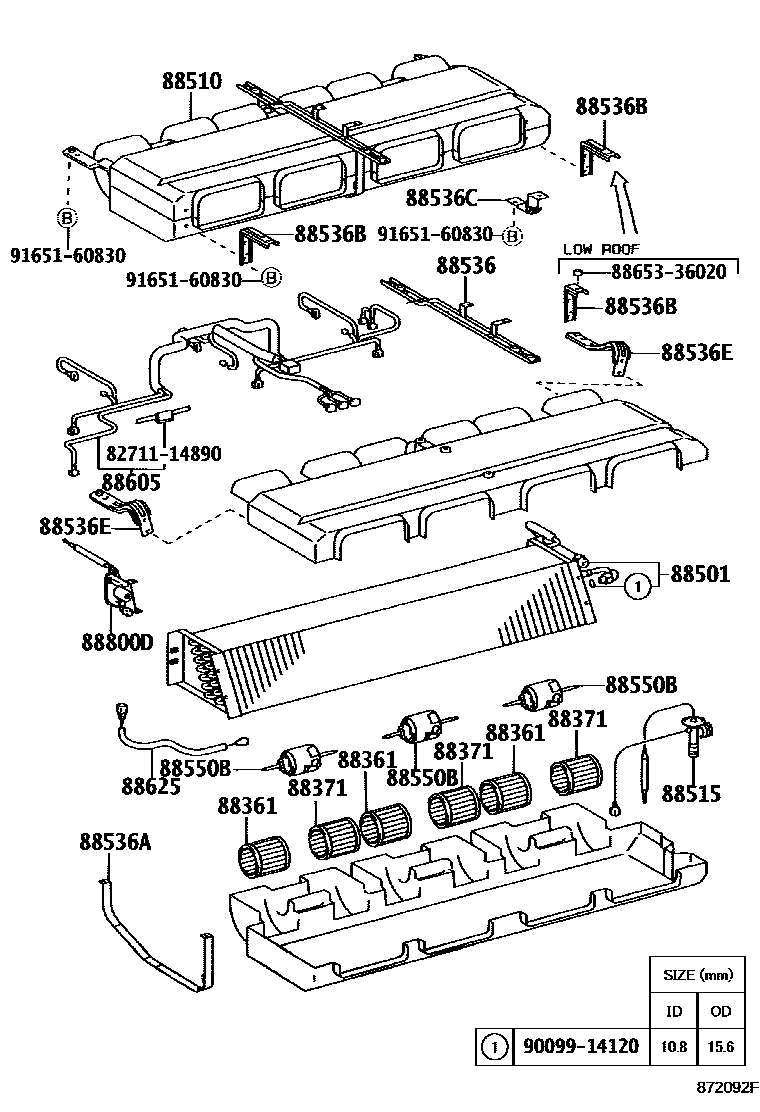

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1����� �-� ���� 0002 1�-� �-� ���� 0003 1�-��-� ����(��-� ��) 0004 1����� �-� ���� 0005 1�-� �-� ���� 0006 1�-� �-� ����(��-� ��) 0007 1����� ������� 0008 1��� ������� 0009 1�-� ����� ������ 0010 1�-� ����� ������ 0011 1�-� ����� 0012 1�-� ����� 0013 1��������

88361FAN, COOLER BLOWER, NO.1

main87105-36060×3iBB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)199301-199907

88371FAN, COOLER BLOWER, NO.2

main87105-36070×3iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-36080iXZB40..5F..IV5;XZB51..6FC..IV5200408-200908

88510UNIT ASSY, COOLER

main88510-36130iBB4#,HZB40,5#..(LX,STD)..WC199301-199309

main88510-36131iHDB51..29S..4FC199505-199705

main88510-36132iBB58,HDB50,HZB40,46,5#..(LX,STD)..WC199907-200408

main88510-36133iXZB4#,50,56..LX,STD201001-201501

main88510-36140iHDB50,HZB50..GX199301-199309

main88510-36141iHDB50,HZB50..GX199309-199907

main88510-36142iHZB40,50..IV5200108-200110

main88510-36143iXZB50..GX201001-201501

main88510-36150iHDB51,HZB41199301-199309

main88510-36151iHDB51,HZB41..CBU199309-199907

main88510-36153iXZB40,51..(EX,GX,SULNG)..(5F,6FC)..CBU200408-200912

main88510-36154iXZB51..SULNG201001-201108

main88510-36172iBZB40,50200408-200912

main88510-36173iBZB40,50..LX201001-201501

main88510-36240iBZB40,50201501

main88510-36250iXZB4#,50,56..LX,STD201501

main88510-36260iXZB50..GX201501

main88510-36270iXZB40,51..EX,GX201501

88515VALVE, COOLER EXPANSION

main88421-36010iBB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC199301-199309

main88421-36011iBB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)199907-200408

main88421-36050iBZB40,50,XZB4#,5#..WC200505-201501

88536BRACKET, COOLING UNIT, NO.1

main88536-36060iBB58,HDB5#,HZB4#,5#..WC..(CBU,IV5)199907-200007

main88536-36061iBB58,BZB40,50,HDB5#,HZB4#,5#..WC..(CBU,IV5)200007-200408

88536ABRACKET, COOLING UNIT, NO.2

main88536-36070iXZB51..SULNG200408-200512

88536BBRACKET, COOLING UNIT, NO.3

main88536-36090×2iBZB40,50..STD200408-201108

main88536-36100×2iXZB51..SULNG..6FC200408-201108

88536CBRACKET, COOLING UNIT, NO.4

main88536-36110iBB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)199301-199907

88536EBRACKET, COOLING UNIT, NO.5

main88536-36120iBB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)199301-199907

main88536-36130iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

88550BMOTOR ASSY, BLOWER

main88550-36020×3iBB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)199301-199907

main88550-36130×3iBZB40,50201501

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-36120iHDB51..29S..4FC;HZB41..26S..4FC199304-199505

main88605-36121iBB58,HDB50,HZB40,46,5#..(LX,STD)..WC199907-200007

main88605-36122iXZB40..6FC..IV5;XZB50..(LX,STD)..(5F,6FC);BZB40,50,XZB4#,56..(LX,STD)..(5F,6FC)..CBU200408-201001

main88605-36123iXZB40,50..LX,STD;BZB40,50,XZB46,56..LX201001-201501

main88605-36130iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199301-199907

main88605-36131iHDB5#,HZB41,50..(EX,GX,SULNG)..CBU199907-200007

main88605-36132iXZB40,50,51..(EX,GX,SULNG)..(5F,6FC)..CBU200408-201001

main88605-36133iXZB51..SULNG201001-201108

main88605-36361iBZB40,50201501

main88605-36430iXZB4#,50,56..LX,STD201501

main88605-36440iXZB40,50,51..EX,GX201501

88625THERMISTOR, COOLER, NO.1

main88625-36140iXZB51..SULNG200408-200512

88800DCOOLING UNIT SERVO

main88800-36010iBZB40,50201501

main88800-36020iXZB40..5F..IV5;XZB51..6FC..IV5200408-200908

8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14890

8865336020PULLEY ASSY, IDLER (FOR COOLER)

main88653-36020

9009914120

main90099-14120

9165160830

main91651-60830

18 parts on this diagram · 13 diagrams in section
