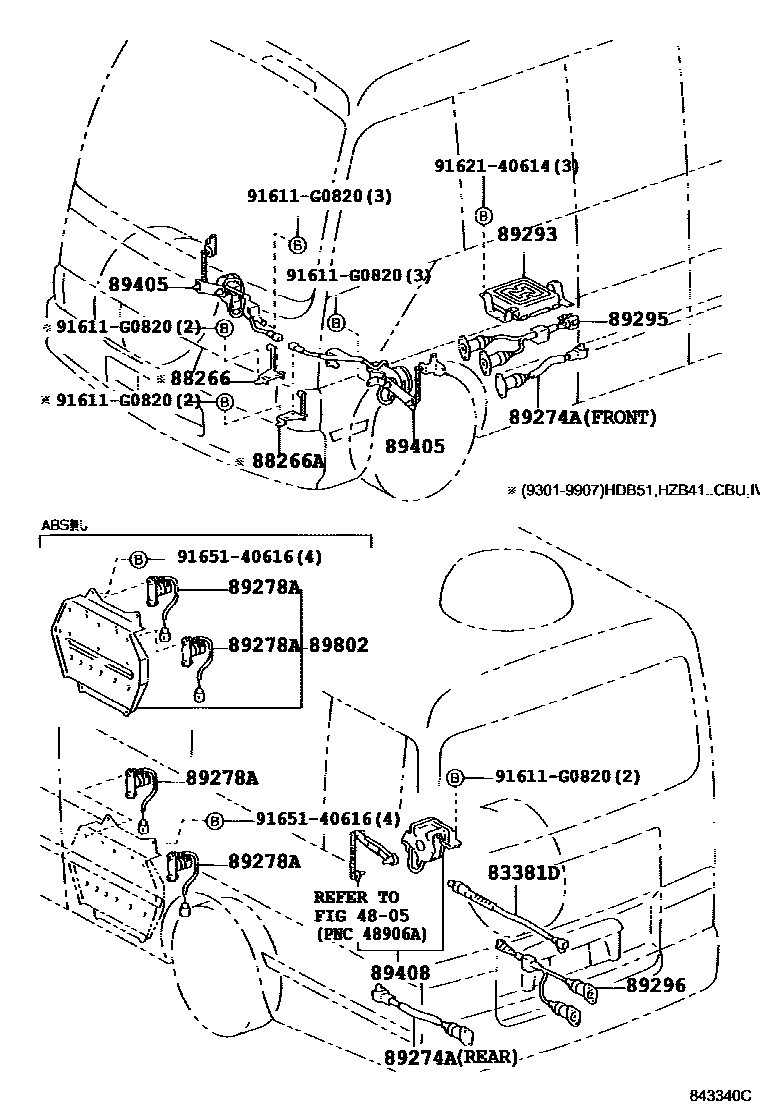

ELECTRONIC MODULATED SUSPENSION

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

83381DSWITCH, AIR SUSPENSION PRESSURE

main83381-36060iHDB51,HZB41199301-199907

main83381-36070iXZB51200408-201501

88266CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-36050iHDB51,HZB41..CBU,IV5199301-199907

88266ACLAMP, AIR SUSPENSION SENSOR, NO.2

main88266-36060iHDB51,HZB41..CBU,IV5199301-199907

89274ASOLENOID, AIR VALVE

main89274-36030iHDB51,HZB41199301-199907

main89274-36040iXZB51201501-201612

89278ARELAY, HEIGHT CONTROL

main89278-36020×2iXZB51..EX..(4FC,6F)200408-200708

89293COMPUTER, SUSPENSION CONTROL

main89293-36010iHDB51,HZB41199301-199705

main89293-36011iHDB51,HZB41199705-199907

89295SOLENOID, SUSPENSION CONTROL, FRONT

main89295-36010iHDB51,HZB41199301-199907

89296SOLENOID, SUSPENSION CONTROL, REAR

main89296-36030iHDB51,HZB41199301-199907

89405SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT

main89405-36010iHDB51,HZB41199301-199907

main89406-36010iXZB51201501

89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89407-36010iHDB51,HZB41199301-199907

89802RELAY SUB-ASSY, AIR SUSPENSION

main89802-36010iHDB51,HZB41..CBU,IV5199301-199907

91611G0820

main91611-G0820

9162140614

main91621-40614

9165140616

main91651-40616

15 parts on this diagram · 1 diagram in section
