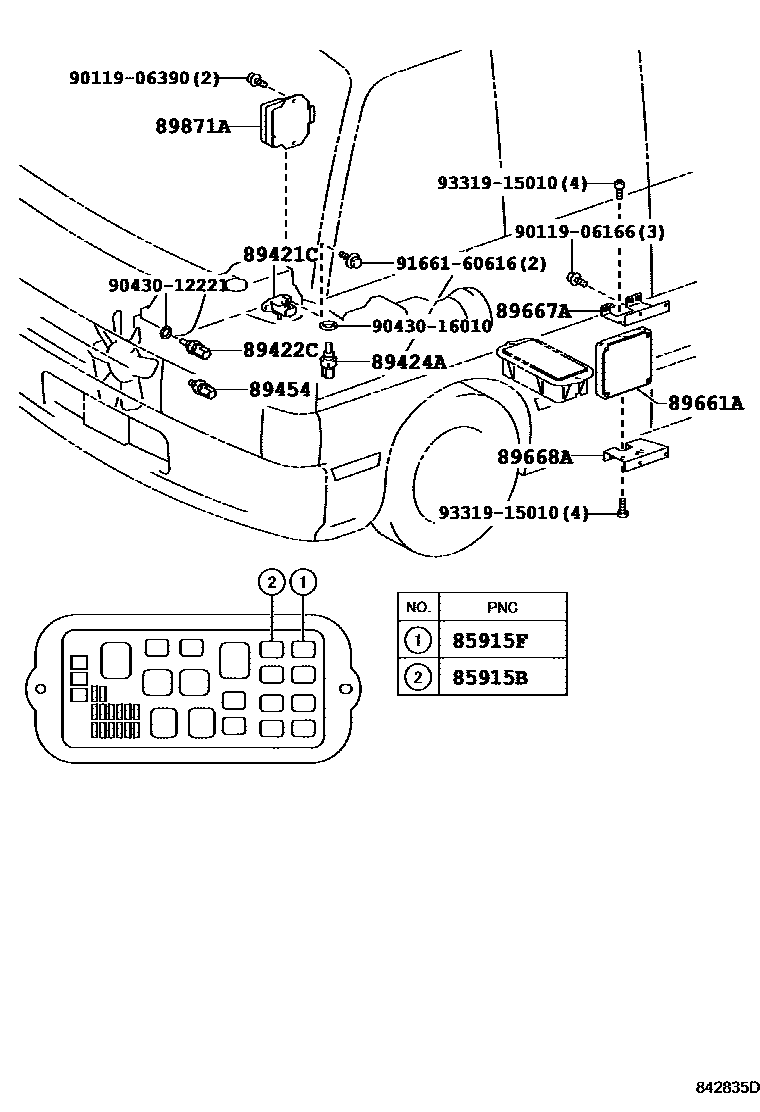

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1 0004 1

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02017iBB58,HDB5#199907-200408

main90987-02027iXZB4#,5#200708-201108

85915FRELAY, SPILL VALVE

main85900-37120iXZB4#,5#200708-201108

main90987-02017iXZB4#,5#201108-201501

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20210iHDB5#199907-200408

main89421-21010iBB58199907-200408

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iBB58,HDB5#199907-200408

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-28020iBB58199907-200408

main89424-60010iHDB5#199907-200408

89454SENSOR, FUEL TEMPERATURE

main89454-60010iBB58,HDB5#199907-200408

89661ACOMPUTER, ENGINE CONTROL

main89661-36030iHDB5#..6F199907-200408

main89661-36040iHDB5#..4FC199907-200408

main89661-36051iBB58199907-200408

main89661-36120iXZB50,51..6F200408-200412

main89661-36121iXZB50,51..6F200501-200511

main89661-36122iXZB50,51..6F200512-200702

main89661-36123iXZB50,51..6F200702-200708

main89661-36130iXZB50,51..HDCR..4FC200408-200412

main89661-36131iXZB50,51..HDCR..4FC200501-200511

main89661-36132iXZB50,51..HDCR..4FC200512-200702

main89661-36133iXZB50,51..HDCR..4FC200702-200708

main89661-36140iXZB40,50..5F200408-200412

main89661-36141iXZB40,50..5F200501-200511

main89661-36142iXZB40,50..5F200512-200702

main89661-36143iXZB40,50..5F200702-200708

main89661-36150iXZB4#,50,56..DCR..4FC200408-200412

main89661-36151iXZB4#,50,56..DCR..4FC200501-200511

main89661-36152iXZB4#,50,56..DCR..4FC200512-200702

main89661-36153iXZB4#,50,56..DCR..4FC200702-200708

main89661-36170iXZB50,51..6FC200512-200702

main89661-36171iXZB50,51..6FC200702-200708

main89661-36240iXZB50..WC..5F;XZB40,51..5F..CBU200708-201108

main89661-36250iXZB4#,50,56..DCR..6FC200708-201108

main89661-36260iXZB51..IV5200708-200908

main89661-36330iXZB40,50,51..5F201108-201501

main89661-36340iXZB4#,50,56..DCR..6FC201108-201501

main89661-36350iXZB50,51..HDCR201108-201501

main89661-36500iXZB40,50,51..5F201501-201612

main89661-36510iXZB4#,50,56..DCR..6FC201501-201612

main89661-36520iXZB50,51..HDCR201501-201612

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-36020iHDB5#199907-200408

main89667-36030iBB58199907-200408

main89667-36050iXZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(09S,20S,26S,29S)..(5F,6FC)..CBU200408-201108

main89667-36060iXZB40,50..STD..4FC200408-200708

main89667-36070iXZB46,56..6FC200408-201108

main89667-36110iXZB4#,5#..EX,GX,LX201501

main89667-36120iXZB46,56201108-201501

main89667-36130iXZB40,50..STD201501

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-36010iHDB5#199907-200408

main89668-36020iBB58199907-200408

main89668-36050iXZB4#,5#..(EX,GX,LX)..(4FC,6F)200408-200708

main89668-36060iXZB46,56..09S200408-200708

main89668-36110iXZB4#,5#..09S,26S,29S201108-201501

main89668-36120iXZB46,56201501

main89668-36130iXZB40,50..STD201108-201501

89871ADRIVER, INJECTOR

main89871-36010iBB58,HDB5#199907-200408

main89871-37010iXZB51..SULNG200408-200512

main89871-37020iXZB4#,5#201108-201501

9011906166

main90119-06166

9011906390

main90119-06390

9043012221

main90430-12221

9043016010

main90430-16010

9166160616

main91661-60616

9331915010

main93319-15010

16 parts on this diagram · 4 diagrams in section
