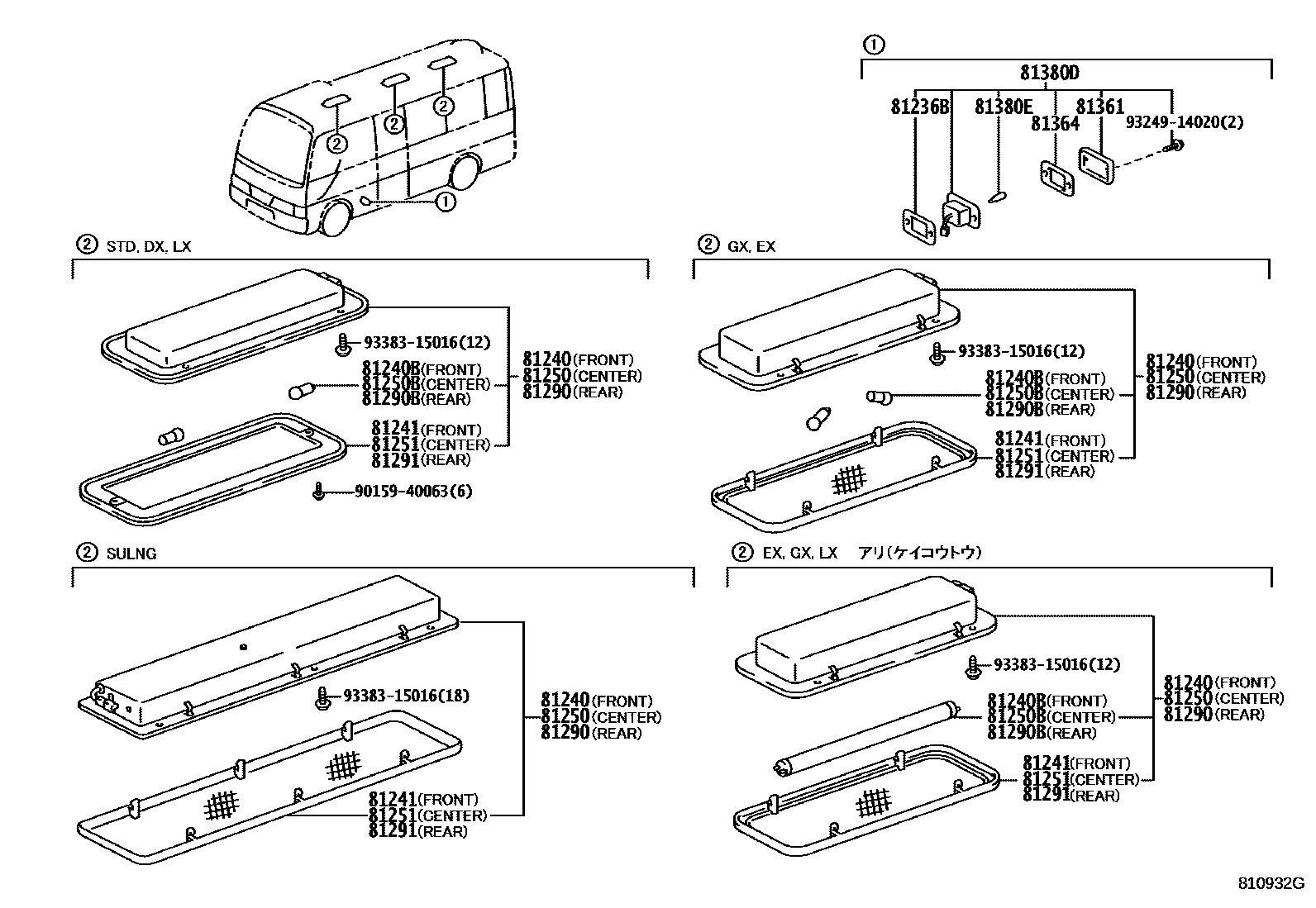

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1

81236BRIM,STEP LAMP

main81236-14016iBZB40,50,XZB40,50..LX..CBU201108-201501

81240LAMP ASSY, ROOM, NO.1

main81240-36010-A0iBB4#,HZB40,5#..DX,LX,STD199301-199505

IVORY,TRIM4#

main81240-36011-A1iHZB40..4FC..IV5; HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5)199907-200108

main81240-36011-B0iHZB40..4FC..IV5; HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5)200108-200408

main81240-36013iXZB50..WOC;XZB51..IV5;XZB40..5F..IV5200708-200908

main81240-36020iHDB5#,HZB41,50..EX,GX199301-199505

main81240-36030iHDB51..SULNG199907-200408

main81240-36031iXZB51..SULNG200708-201108

main81240-36040-B0iBZB40,50200203-200408

MD.CHARCOAL,TRIM1#

main81240-36042iBZB40,50..LX200708-201501

main81240-36060iHZB40,50..LX..4FC;HDB5#,HZB41,50..EX,GX199505-199705

main81240-36062iXZB40,50,51..EX,GX,LX201501

81240BBULB, ROOM LAMP, NO.1

main90981-11032iHDB5#,HZB4#,50..EX,GX,LX199304-199505

main99132-11100×2iBZB40,50..LX200408-201501

main99134-11120×2iHZB40..4FC..IV5; HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5)199907-200408

81241LENS, ROOM LAMP, NO.1

main81027-36010iBZB40,50,XZB4#,5#201501

main81241-36020iHDB51,HZB40..4FC..IV5; HZB40..5F;BB40,HDB50,HZB41,50..EX,GX,LX;HDB51,HZB40..(EX,LX)..(4FC,6F)..CBU199705-199907

main81241-36030iXZB51..SULNG..6FC200408-201108

main81241-90B00iHZB40..4FC..IV5; HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5)199907-200408

81250LAMP ASSY, ROOM, NO.2

main81240-36010-A0iBB4#,HZB40,5#..DX,LX,STD199301-199505

IVORY,TRIM4#

main81240-36011-A1iHZB40..4FC..IV5; HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5)199907-200108

main81240-36011-B0iHZB40..4FC..IV5; HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5)200108-200408

main81240-36013iXZB4#,5#201501

main81240-36020iHDB5#,HZB41,50..EX,GX199301-199505

main81240-36030iHDB51..SULNG199301-199907

main81240-36031iXZB51..SULNG200708-201108

main81240-36040-B0iBZB40,50200203-200408

MD.CHARCOAL,TRIM1#

main81240-36042iBZB40,50..LX200708-201501

main81240-36060iXZB4#..08S,20S200408-200708

main81240-36070iBB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5)199907-200408

main81240-36071iXZB50..29S..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S)..WC..CBU200708-201501

81250BBULB, ROOM LAMP, NO.2

main90981-11032iXZB40..5F..IV5;XZB51..6FC..IV5200408-200908

main99132-11100×2iBZB40,50201501

main99134-11120×2iHZB40..4FC..IV5; HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5)199907-200408

81251LENS, ROOM LAMP, NO.2

main81027-36010iBZB40,50,XZB4#,5#201501

main81241-36020iHDB51,HZB40..4FC..IV5; HZB40..5F;BB40,HDB50,HZB41,50..EX,GX,LX;HDB51,HZB40..(EX,LX)..(4FC,6F)..CBU199705-199907

main81241-36030iXZB51..SULNG..6FC200408-201108

main81241-90B00iHZB40..4FC..IV5; HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5)199907-200408

81290LAMP ASSY, ROOM, NO.3

main81240-36010-A0iBB4#,HZB40,5#..DX,LX,STD199301-199505

IVORY,TRIM4#

main81240-36011-A1iHZB40..4FC..IV5; HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5)199907-200108

main81240-36011-B0iHZB40..4FC..IV5; HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,49S)..(CBU,IV5)200108-200408

main81240-36013iXZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU200708-201501

main81240-36020iHDB5#,HZB41,50..EX,GX199301-199505

main81240-36030iHDB51..SULNG199301-199907

main81240-36031iXZB51..SULNG200708-201108

main81240-36040-B0iBZB40,50200203-200408

MD.CHARCOAL,TRIM1#

main81240-36042iBZB40,50201501

main81240-36060iHDB5#,HZB41,50..EX,GX199301-199304

main81240-36080iXZB40,50,51..(26S,29S)..WC200408-200708

main81240-36082iXZB40,50,51..EX,GX,LX201501

81290BBULB, ROOM LAMP, NO.3

main90981-11032iXZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB40,51..(26S,29S)..WC..(5F,6FC)..CBU200408-201501

main99132-11100×2iBZB40,50201501

main99134-11120×2iHZB40..4FC..IV5; HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,49S)..(CBU,IV5)199907-200408

81291LENS, ROOM LAMP, NO.3(FOR REAR)

main81027-36010iBZB40,50,XZB4#,5#201501

main81241-36020iHDB51,HZB40..4FC..IV5; HZB40..5F;BB40,HDB50,HZB41,50..EX,GX,LX;HDB51,HZB40..(EX,LX)..(4FC,6F)..CBU199705-199907

main81241-36030iXZB51..SULNG..6FC200408-201108

main81241-90B00iHZB40..4FC..IV5; HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,BZB40,50,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5)199907-200408

81361LENS, STEP LAMP

main81361-90511iBB4#,5#,HDB5#,HZB4#,5#..CBU,IV5199301-199907

81364GASKET, STEP LAMP

main81364-90501iXZB51..SULNG200408-200512

81380DLAMP ASSY, STEP

main81380-36010iXZB4#,5#..5F,6FC200408-200908

main81380-36011iXZB4#,5#..DX,EX,GX,LX,STD200908-201501

main81380-36020iBZB40,50200408-200908

main81380-36021iBZB40,50201501

81380EBULB (FOR STEP LAMP)

main99132-12050iBZB40,50..LX200408-201501

main99134-12030iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200408-200908

9015940063

main90159-40063

9324914020

main93249-14020

9338315016

main93383-15016

17 parts on this diagram · 4 diagrams in section
