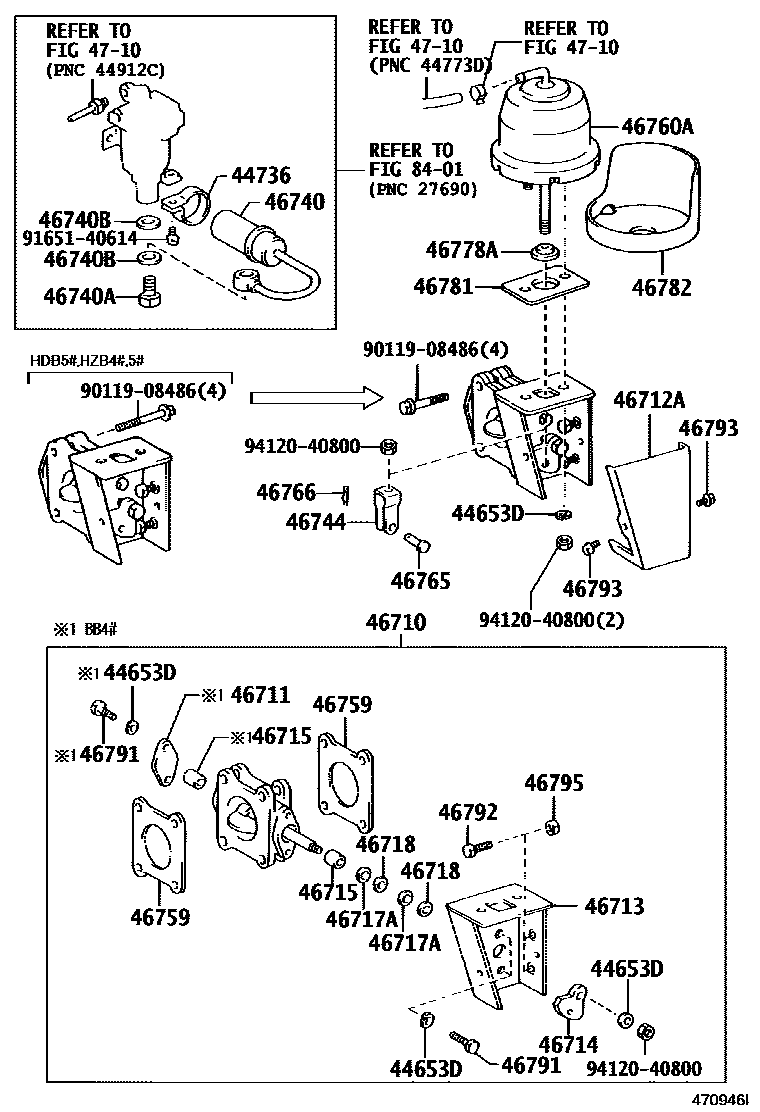

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

44653DWASHER, EXHAUST VALVE COVER

main44653-55010×7iBB4#199301-199907

44736BRACKET, AIR CLEANER

main44736-36050iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

46710VALVE ASSY, EXHAUST BRAKE

main46710-36080iBB4#199301-199907

main46710-36170iBB5#,HZB4#,5#199611-199907

main46710-36260iBB58200108-200408

main46710-36270iHDB5#,HZB4#,5#200108-200408

main46710-EV010iXZB4#,5#201108-201210

main46710-EV030iXZB4#,5#201210-201501

46711COVER, EXHAUST VALVE

main46711-36010iBB4#199301-199907

46712COVER, EXHAUST VALVE LINK

main46712-EV010iXZB4#,5#201108-201210

main46712-EV030iXZB4#,5#201210-201501

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36060iBB4#,55,HDB5#,HZB4#,5#199301-199611

main46712-36270iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

46713BRACKET, EXHAUST VALVE

main46713-36060iBB58200108-200110

main46713-36270iBB58,HDB5#,HZB4#,5#200110-200408

main46713-EV010iXZB4#,5#201108-201210

main46713-EV020iXZB4#,5#201210-201501

46714LEVER, EXHAUST VALVE

main46714-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main46714-EV010iXZB4#,5#201108-201501

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iBB4#,55,HDB5#,HZB4#,5#199301-199611

main46715-36060iBB4#,HDB5#,HZB4#,5#199301-199611

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010×2iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main46717-36270×2iHDB5#,HZB4#,5#200204-200408

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010×2iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main46718-36270×2iHDB5#,HZB4#,5#200204-200408

46740CLEANER ASSY, EXHAUST RETARDER

main46740-36090iXZB51..SULNG200408-200512

46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12097iHDB5#,HZB4#,5#199907-200408

46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)

main90430-12247×2iXZB51..SULNG200408-200512

46744CLEVIS, EXHAUST BRAKE ROD CLEVIS

main46744-25010iBB4#,55,HDB5#,HZB4#,5#199301-199611

main46774-36270iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

46759GASKET, EXHAUST RETARDER

main46759-36030×2iBB4#199301-199907

main46759-36040×2iBB5#,HDB5#,HZB4#,5#199301-199907

46760CYLINDER ASSY, EXHAUST RETARDER VACUUM

main46760-EV020iXZB4#,5#201108-201210

main46760-EV060iXZB4#,5#201210-201501

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-36250iBB4#,HDB5#,HZB4#,5#199301-199907

main46760-36260iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

main46760-65010iBB5#199512-199907

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

46778BEARING, VACUUM CYLINDER

main46778-36060iBB5#199512-199907

main46778-EV010iXZB4#,5#201108-201501

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36060iHDB5#,HZB4#,5#199907-200408

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-28010iBB58,HDB5#,HZB4#,5#199907-200408

main46781-36060iBB4#,5#,HDB5#,HZB4#,5#199301-199907

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36130iXZB4#,5#..4FC,5F,6F200408-200708

main46782-36290iXZB40,50..5F200708-201108

main46782-65010iBB5#199512-199907

main46782-EV010iXZB4#,5#201108-201210

main46782-EV030iXZB4#,5#201210-201501

46791BOLT, EXHAUST VALVE COVER

main46791-25041×2iXZB4#,5#201501

main46791-36010×4iBB4#199301-199907

main91611-B0816×2iBB58,HDB5#,HZB4#,5#199907-200110

main91612-60816×2iBB5#,HDB5#,HZB4#,5#199301-199907

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iBB4#,5#,HDB5#,HZB4#,5#199301-199907

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iBB4#,5#,HDB5#,HZB4#,5#199301-199907

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iBB4#,5#,HDB5#,HZB4#,5#199301-199907

4710EXHAUST BRAKE TUBE & CLAMP

→ Go to FIG 47-10

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908486

main90119-08486

9165140614

main91651-40614

9412040800

main94120-40800

33 parts on this diagram · 5 diagrams in section
