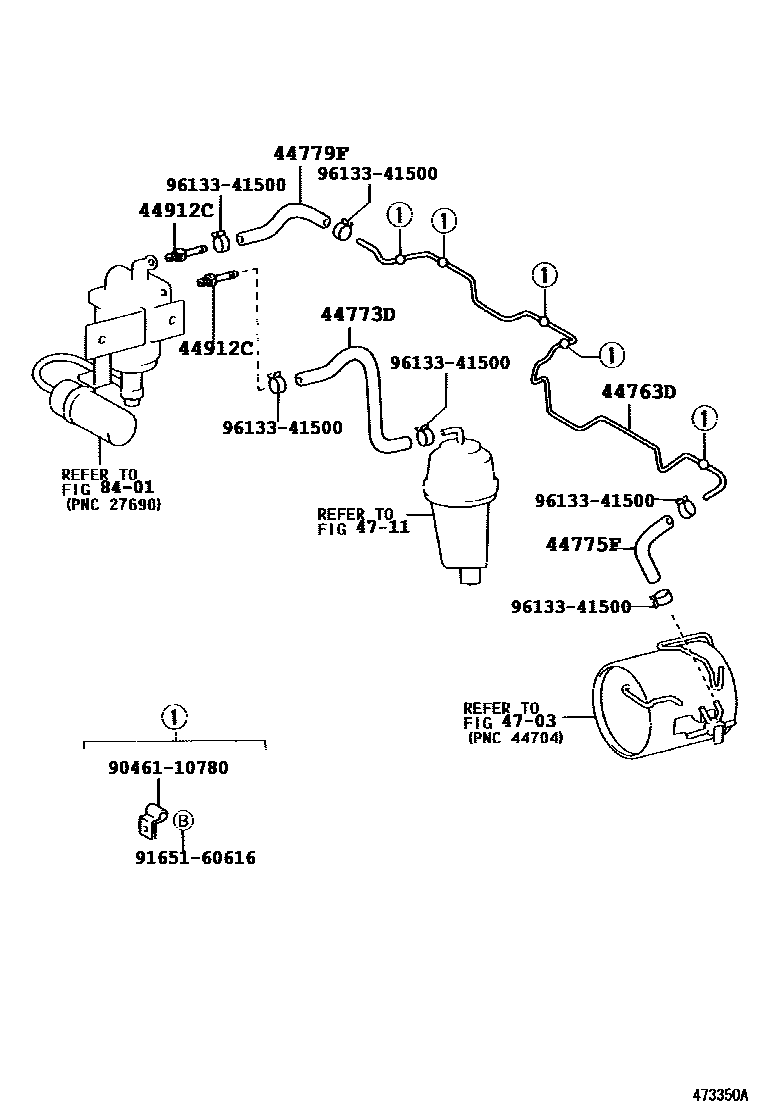

EXHAUST BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

44763DTUBE, HOSE TO HOSE, NO.1

main44763-36040iXZB4#,5#200408-200512

main44763-36041iXZB50..WOC;XZB40..5F..IV5;XZB51..6FC..IV5200512-200908

main44763-36042iXZB4#,5#201501

main44763-36060iBB58199907-200408

44773DHOSE, SOLENOIDO TO RETARDER

main44773-36160iHDB5#,HZB4#,5#199907-200408

main44773-36170iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

main44773-36190iXZB4#,5#201501

main95447-09320iBB58199907-200408

44775FHOSE, WAY TO CONNECTOR

main44775-36030iXZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD200408-200703

main44775-36100iXZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU200704-201501

main95447-09420iBB58199907-200408

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main44778-36110iBB58199907-200408

main44779-36100iBB4#,HDB5#,HZB4#,5#199301-199907

main44779-36110iXZB51..SULNG200408-200512

main44779-36120iXZB4#,5#..4FC,6F200704-200708

main44779-36121iXZB4#,5#201501

main95447-09260iBB55199512-199601

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319×2iHDB5#,HZB4#,5#199907-200408

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

4711EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

→ Go to FIG 47-11

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046110780

main90461-10780

9165160616

main91651-60616

9613341500

main96133-41500

11 parts on this diagram · 4 diagrams in section
