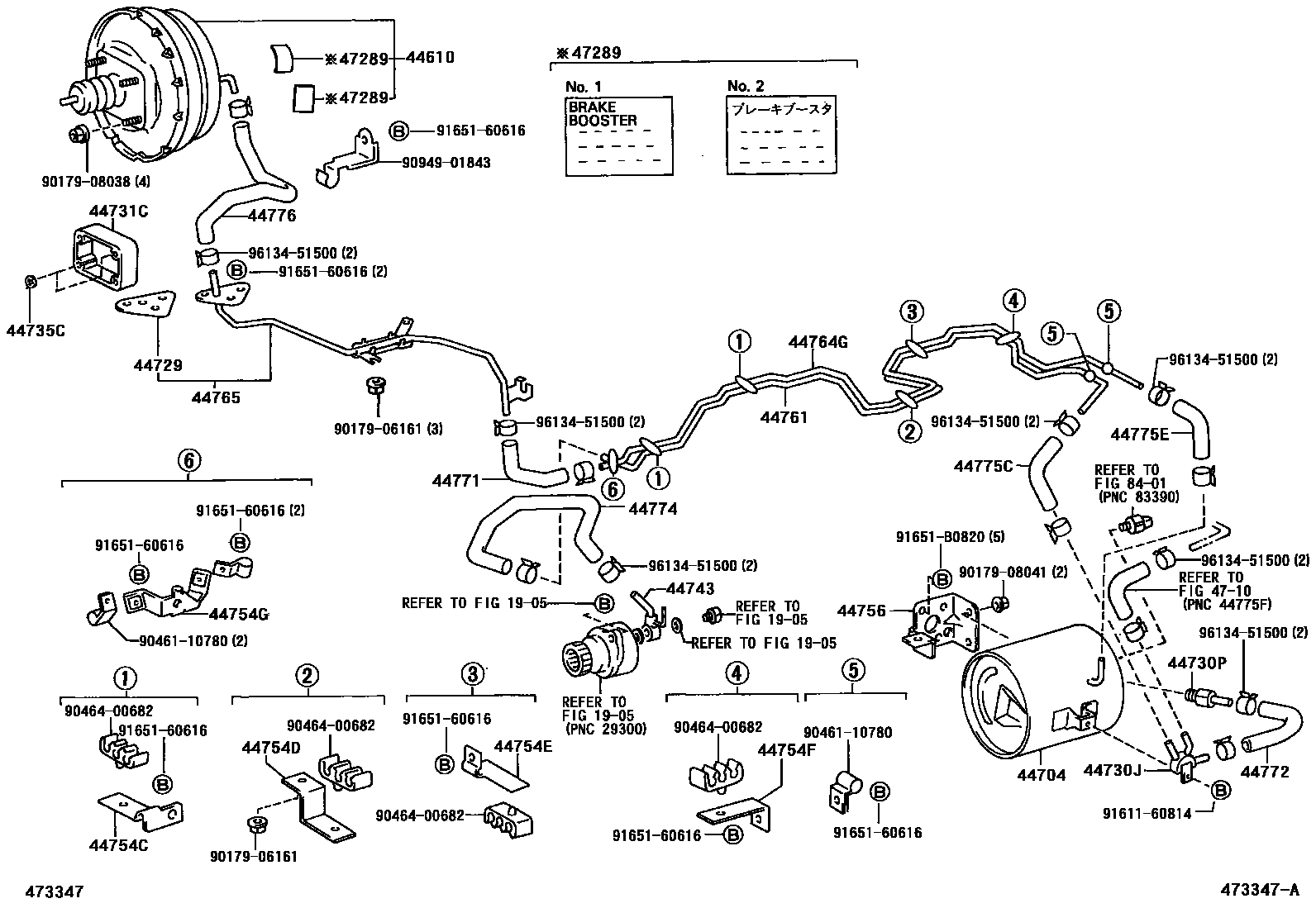

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1��(ABS)

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-36440iBB4#..WOC199301-199907

main44610-36480iBB4#,HZB40..(LX,STD)..WC; BB4#..WOC199301-199907

main44610-36520iHZB40..LX199705-199907

main44610-36600iXZB4#..(LX,STD)..4FC200408-200708

main44610-36610iBB58199907-200408

main44610-36620iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

44704RESERVOIR SUB-ASSY, VACUUM

main44704-36260iXZB50,51..6F200408-200708

main44704-36270iBB58,HDB5#,HZB4#,5#..4FC199907-200408

44729GASKET, VACUUM TUBE

main44729-36020iBB4#,HDB5#,HZB4#,5#199301-199907

44730JWAY(FOR BOOSTER VACUUM)

main90413-09037iBB4#,5#;HDB5#,HZB4#,5#..4FC199301-199907

main90413-09040iBZB40,50200203-200408

main90414-09001iHDB5#,HZB4#,5#..MTM199907-200408

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iXZB4#,5#..(EX,GX,LX,STD)..4FC; XZB50,51..6F200408-200708

44731CBRACKET, BRAKE BOOSTER

main44731-35120iHZB40,46199907-200408

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010×2iBB4#,HZB40199301-199907

44743UNION(FOR VACUUM PUMP)

main29612-58010iBB5#199512-199907

main29612-58020iBB58199907-200408

main90405-09131iBB4#199301-199907

main90405-09142iHDB5#,HZB4#,5#199301-199907

main90405-09181iBZB40,50200203-200408

44754CBRACKET, VACUUM TUBE, NO.1

main44754-36090×2iHDB5#,HZB4#,5#199907-200408

44754DBRACKET, VACUUM TUBE, NO.2

main44754-36110iBB4#,HDB5#,HZB4#,5#199301-199907

44754EBRACKET, VACUUM TUBE, NO.3

main44754-36120iXZB51..SULNG200408-200512

main44754-36150iXZB4#,5#201501

44754FBRACKET, VACUUM TUBE, NO.4

main44754-36130iBZB40,50,XZB51..(STD,SULNG)..(5F,6FC)200408-201108

44754GBRACKET, VACUUM TUBE, NO.5

main44754-36140iBB4#,HDB5#,HZB4#,5#199301-199907

44756BRACKET, VACUUM RESERVOIR

main44757-36060iBZB40,50,HDB5#,HZB4#,5#199907-200408

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-36140iBB4#,HDB5#,HZB4#,5#199301-199705

main44761-36180iBB4#,HDB5#,HZB4#,5#199705-199907

main44761-36250iBZB40,50201501

main44761-36260iXZB51..SULNG200408-200512

main44761-36261iXZB4#,5#..5F,6FC200608-200908

main44761-36262iXZB4#,5#201501

44764GTUBE, CONNECTOR TO BRAKE BOOSTER

main44764-36480iBB4#,HDB5#,HZB4#,5#199301-199705

main44764-36500iBB5#199512-199907

main44764-36520iBB4#,HDB5#,HZB4#,5#199705-199907

main44764-36550iBB58199907-200408

main44764-36590iBZB40,50200203-200408

main44764-36600iXZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

44765TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2

main44765-36180iBB4#199301-199705

main44765-36200iHDB5#,HZB4#,5#..5F199301-199705

main44765-36210iHDB5#,HZB4#,5#..4FC199301-199705

main44765-36250iHDB5#,HZB4#,5#..MTM199705-199907

main44765-36260iBB58199907-200408

main44765-36290iHDB5#,HZB4#,5#..4FC199705-199907

main44765-36320iBB4#199705-199907

main44765-36340iXZB4#,5#..6FC200408-200908

main44765-36350iHDB5#,HZB4#,5#..MTM199907-200108

main44765-36351iXZB50,51..6F200408-200708

main44765-36360iBZB40,50..LX200408-201501

main44765-36370iXZB4#,5#..(EX,GX,LX,STD)..6FC200908-201501

main44765-36380iXZB40,50,51..5F201501

44771HOSE, VACUUM TUBE CONNECTOR

main44771-36240iHDB5#,HZB4#,5#199301-199907

main44771-36250iBB4#199301-199705

main44771-36300iBB4#199705-199907

main90445-17141iBZB40,50,XZB4#,5#201501

main95447-09280iBB58199907-200408

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-36090iXZB51..SULNG200408-200512

main44772-36100iXZB4#,5#..4FC; XZB50,51..6F200704-200708

44774HOSE, UNION TO CONNECTOR TUBE

main44774-36220iBB4#199301-199907

main44774-36230iHDB5#,HZB4#,5#199301-199907

main44774-36300iHDB5#,HZB4#,5#199907-200408

main44774-36360iBZB40,50201501

main44774-36380iXZB40,50,51..5F,6F,6FC200408-200703

main44774-36400iXZB4#,5#..4FC200706-200708

main44774-36430iXZB4#,5#200908-201108

main44774-36440iXZB4#,5#201501

main95446-09400iBB58199907-200408

main95447-09320iBB5#199512-199907

44775CHOSE, CONNECTOR TO WAY

main44775-36030iXZB4#,5#..(EX,GX,LX,STD)..4FC200408-200705

main44775-36100iXZB4#,5#..4FC200706-200708

44775EHOSE, WAY TO CONNECTOR

main44775-36030iBB4#,HDB5#,HZB4#,5#199301-199907

main44775-36060iXZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD200408-200703

main44775-36090iXZB4#,5#..4FC,6F200704-200708

main44775-36100iBZB40,50..LX200704-201501

44776HOSE, BRAKE BOOSTER

main44776-36090iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main44776-36120iHDB51,HZB41..IV5;BZB40,50,HDB5#..MTM199907-200408

main44776-36170iXZB40..5F..IV5200408-200908

4710EXHAUST BRAKE TUBE & CLAMP

→ Go to FIG 47-10

47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION

main47289-60010iBB4#,5#,HDB5#,HZB4#,5#199301-199907

main47289-60020iBB4#,5#,HDB5#,HZB4#,5#199301-199907

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906161

main90179-06161

9017908038

main90179-08038

9017908041

main90179-08041

9046110780

main90461-10780

9046400682

main90464-00682

9094901843

main90949-01843

9161160814

main91611-60814

9165160616

main91651-60616

91651B0820

main91651-B0820

9613451500

main96134-51500

37 parts on this diagram · 7 diagrams in section
