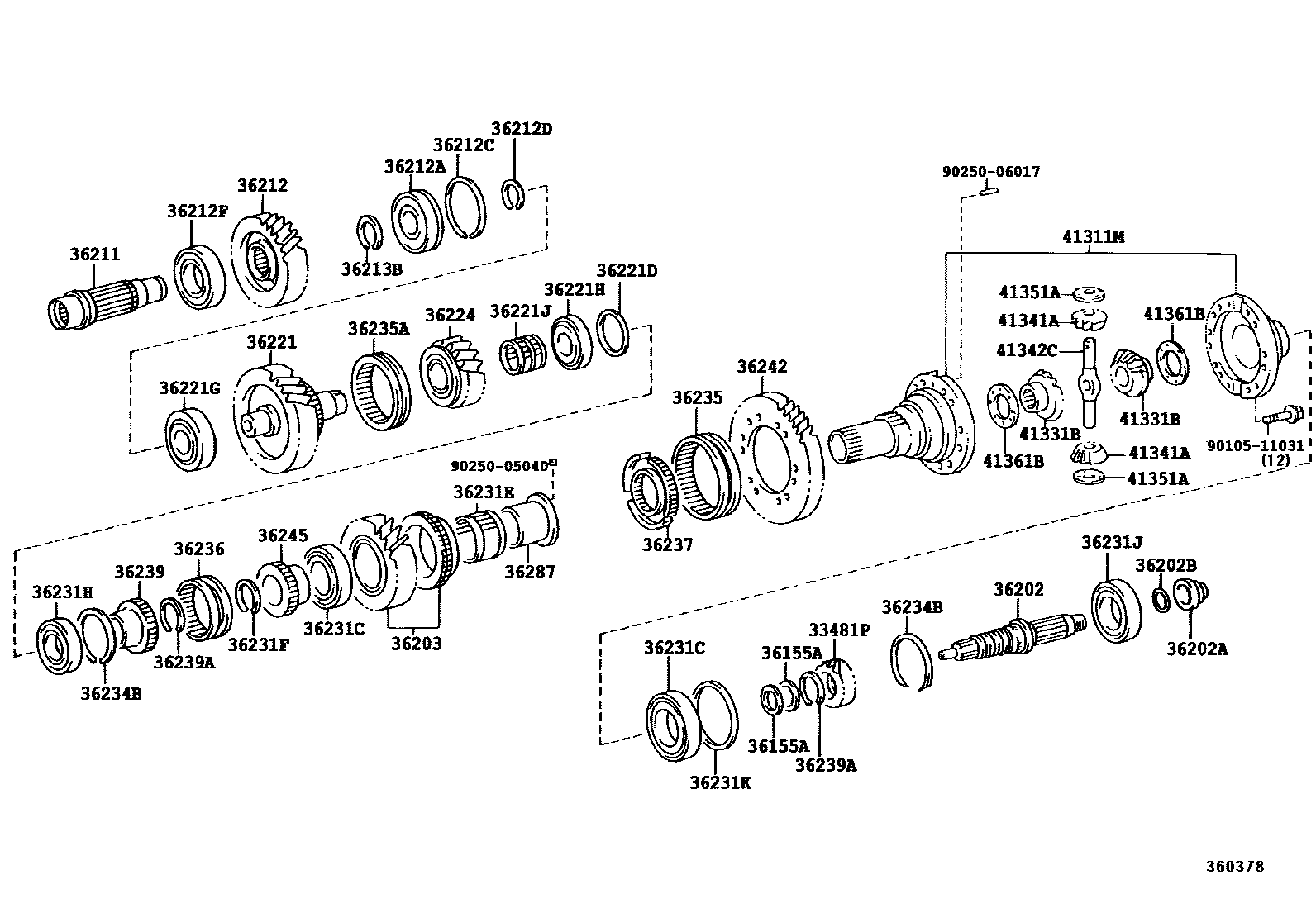

TRANSFER GEAR
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
36155ARING, TRANSFER OIL SEAL
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36202ANUT(FOR TRANSFER OUTPUT REAR SHAFT)
36202BRING, O(FOR TRANSFER OUTPUT REAR SHAFT)
36203GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36211SHAFT, TRANSFER INPUT
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
36221DWASHER, PLATE(FOR TRANSFER IDLER GEAR)
36221GBEARING (FOR TRANSFER ILDER GEAR), FRONT
36221HBEARING (FOR TRANSFER ILDER GEAR), REAR
36221JBEARING (FOR TRANSFER IDLER GEAR LOWER)
36231CBEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231KWASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE)
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36235ASLEEVE (FOR TRANSFER IDLER GEAR)
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36239HUB, TRANSFER DRIVE CLUTCH
36239ARING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB)
36245PIECE, TRANSFER FRONT DRIVE GEAR
36287BUSH, TRANSFER HIGH SPEED OUTPUT GEAR
41311MCASE, CENTER DIFFERENTIAL
41331BGEAR, CENTER DIFFERENTIAL SIDE
41341APINION, CENTER DIFFERENTIAL
41342CSHAFT, CENTER DIFFERENTIAL PINION
41351AWASHER, CENTER DIFFERENTIAL PINION TRUST
41361BWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
9010511031
main90105-11031
9025005040
main90250-05040
9025006017
main90250-06017
44 parts on this diagram · 2 diagrams in section
