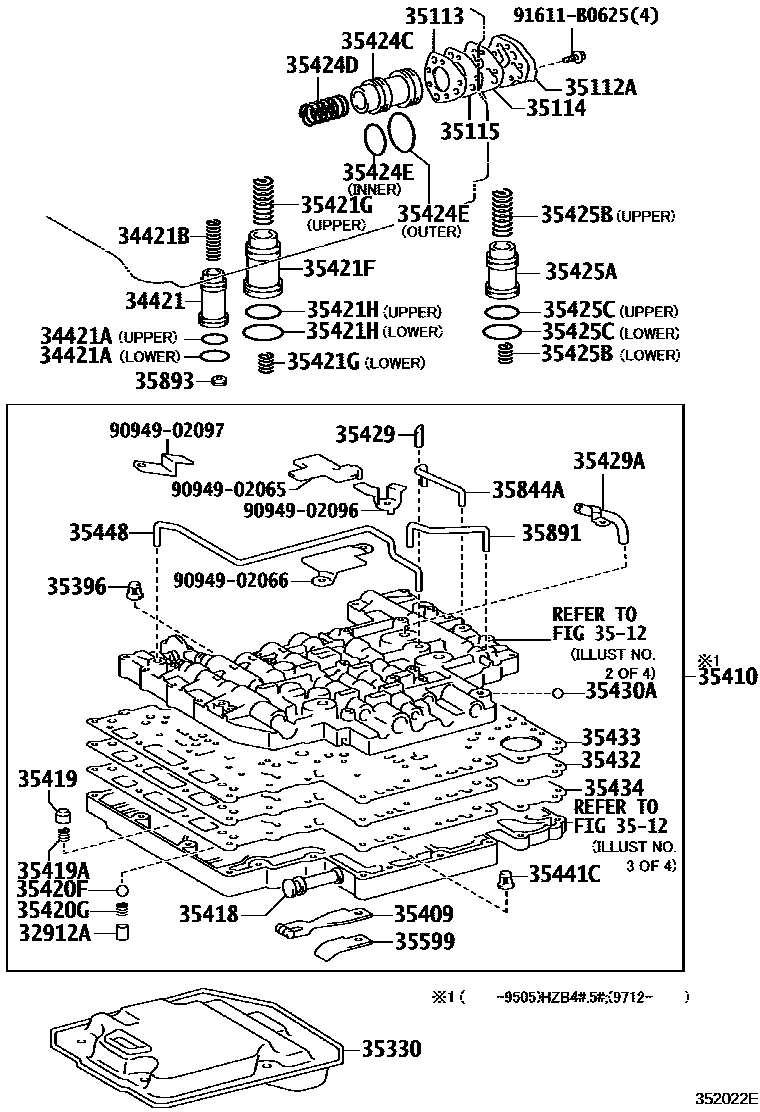

VALVE BODY & OIL STRAINER (ATM)

0001 1A441E,A442E,A443F 0003 1A441E,A442E,A443F 0005 1A441E,A442E,A443F 0007 1A441E,A442E,A443F 0009 1A442E,A443F 0010 1A442E,A443F 0011 1A442E,A443F 0012 1A442E,A443F 0013 1A444E 0014 1A860E,A861E 0015 1A860E,A861E

32912ACAGE, CHECK VALVE(FOR VALVE BODY)

main32912-60010×2iBB58,HDB5#,HZB4#,5#..4FC199907-200408

34421PISTON, OVERDRIVE BRAKE ACCUMULATOR

main34421-36010iHDB5#,HZB4#,5#..4FC199301-199511

main34421-37010iBB5#,HDB5#,HZB4#,5#..4FC199511-199907

34421ARING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

main90301-26003iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main90301-29003iBB58,HDB5#,HZB4#,5#..4FC199907-200408

34421BSPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

main90501-32013iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main90501-32041iHDB5#..4FC199907-200408

main90501-34009iBB58199907-200408

35112ACOVER, FRONT CLUTCH ACCUMULATOR

main35112-36010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main35112-60010iXZB4#,5#..4FC200408-200708

35113GASKET, FRONT CLUTCH ACCUMLATOR, NO.2

main35113-60010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main35113-60020iBB58,HDB5#,HZB4#,5#..4FC199907-200408

35114GASKET, FRONT CLUTCH ACCUMLATOR, NO.1

main35114-60010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main35114-60020iXZB4#,5#..4FC200408-200708

35115PLATE, FRONT CLUTCH ACCUMULATOR

main35115-36010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main35115-60010iBB58,HDB5#,HZB4#,5#..4FC199907-200408

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35330STRAINER ASSY, VALVE BODY OIL

main35330-36010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main35330-36020iHDB5#..4FC199907-200408

main35330-37010iXZB4#,5#..6FC200512-201501

main35330-60040iBB58199907-200408

35396STRAINER, THROTTLE OIL

main35396-36020iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-36020iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35410BODY ASSY, TRANSMISSION VALVE

main35410-36162iHZB4#,5#..4FC199301-199505

main35410-36181iHZB4#,5#..4FC199712-199801

main35410-36182iHZB4#,5#..4FC199801-199907

main35410-36191iHDB5#..4FC199712-199801

main35410-36192iHDB5#..4FC199801-199907

main35410-36200iHZB4#,5#..4FC199907-200408

main35410-36210iHDB5#..4FC199907-200408

main35410-36220iBB58199907-200408

main35410-37011iBB58199712-199801

main35410-37012iBB58199801-199907

35418VALVE, MANUAL

main35418-36020iBB5#,HDB5#,HZB4#,5#..4FC199301-199710

main35418-60010iBB58,HDB5#,HZB4#,5#..4FC199710-199907

35419VALVE, CHECK, NO.1

main35419-36010iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-12129iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35420FBALL, CHECK, NO.1

main90360-10006×2iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35420GSPRING, BARREL SHAPED

main90503-04004×2iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35421FPISTON, ACCUMULATOR, NO.2

main35402-60020iHZB4#,5#..4FC199505-199907

main35402-60030iHDB5#,HZB4#,5#..4FC199301-199505

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90501-20110iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main90501-22044iXZB4#,5#..4FC200408-200708

main90501-24031iHZB4#,5#..4FC199907-200408

main90501-38007iHDB5#..4FC199505-199907

main90501-40028iHZB4#,5#..4FC199301-199907

main90501-40037iBB5#199512-199907

35421HRING (FOR ACCUMULATOR PISTON NO.2)

main90301-29003iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main90301-37004iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

35424CPISTON, C-1 ACCUMULATOR

main35424-36010iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main35424-60020iBB58,HDB5#,HZB4#,5#..4FC199907-200408

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-26076iBB5#,HDB5#,HZB4#,5#..(DSL2,DSL4,TD2)..4FC199301-199907

main90501-26083iXZB4#,5#..4FC200408-200708

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-22003iXZB4#,5#..4FC200408-200708

main90301-24002iHZB4#,5#..4FC199907-200408

main90301-28003iXZB4#,5#..4FC200408-200708

main90301-28009iBB58,HDB5#..4FC199907-199911

35425APISTON, C-2 ACCUMULATOR

main35405-60030iHDB5#,HZB4#,5#..4FC199301-199505

main35405-60050iHZB4#,5#..4FC199505-199907

main35405-60060iHDB5#..4FC199505-199907

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-17032iHZB4#,5#..4FC199907-200408

main90501-18098iHDB5#,HZB4#,5#..4FC199505-199907

main90501-18113iXZB4#,5#..4FC200408-200708

main90501-31011iHZB4#,5#..4FC199907-200408

main90501-31014iHZB4#,5#..4FC199505-199907

main90501-32013iBB58199907-200408

main90501-32040iXZB4#,5#..4FC200408-200708

main90501-34009iHDB5#..4FC199505-199907

main90501-34011iBB5#199512-199907

main90501-40028iHDB5#..4FC199301-199505

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-28003iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

main90301-33006iBB58,HDB5#,HZB4#,5#..4FC199907-200408

35429TUBE, LINE PRESSURE

main35429-36010iBB58,HDB5#,HZB4#,5#..4FC199907-200408

35429ATUBE, LINE PRESSURE

main35429-60010iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35430ABALL (FOR REAR UPPER VALVE BODY)

main90360-06004×9iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35432PLATE, VALVE BODY, NO.1

main35432-36040iHDB5#,HZB4#,5#..4FC199301-199311

main35432-36041iHDB5#,HZB4#,5#..4FC199311-199505

main35432-36060iBB58,HDB5#..4FC199907-200408

main35432-60100iBB5#,HDB5#,HZB4#,5#..4FC199505-199710

main35432-60101iBB58,HDB5#,HZB4#,5#..4FC199710-199801

main35432-60102iBB58,HDB5#,HZB4#,5#..4FC199801-199907

35433GASKET, VALVE BODY, NO.1

main35433-36020iHDB5#,HZB4#,5#..4FC199301-199311

main35433-36021iBB5#,HDB5#,HZB4#,5#..4FC199311-199710

main35433-36022iBB58,HDB5#,HZB4#,5#..4FC199710-199801

main35433-36023iHZB4#,5#..4FC199907-200408

main35433-60030iBB58,HDB5#..4FC199907-200408

35434GASKET, VALVE BODY, NO.2

main35434-36020iHDB5#,HZB4#,5#..4FC199301-199311

main35434-36021iBB5#,HDB5#,HZB4#,5#..4FC199311-199710

main35434-36022iBB58,HDB5#,HZB4#,5#..4FC199710-199801

main35434-36023iBB58,HDB5#,HZB4#,5#..4FC199801-199907

main35434-60030iBB58,HDB5#..4FC199907-200408

35441VALVE, LOW COAST SHIFT CONTROL

main35441-36020iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

35441CSTRAINER, SOLENOID OIL

main35441-36010×3iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

35448TUBE, 2-3 SHIFT VALVE APPLY

main35448-36010iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35599COVER, MANUAL DETENT SPRING

main35599-60010iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35844ATUBE, ACCUMULATOR BACK PRESSURE, NO.1

main35844-36010iBB58,HDB5#,HZB4#,5#..4FC199907-200408

35891TUBE, OVERDRIVE DIRECT CLUTCH

main35891-36010iBB5#,HDB5#,HZB4#,5#..(09S,15S,20S,26S,29S,49S)..4FC..(CBU,IV5)199301-199907

35893GASKET, CENTER SUPPORT APPLY

main35893-36010×4iBB5#,HDB5#,HZB4#,5#..4FC199301-199907

9094902065

main90949-02065

9094902066

main90949-02066

9094902096

main90949-02096

9094902097

main90949-02097

91611B0625

main91611-B0625

45 parts on this diagram · 11 diagrams in section
