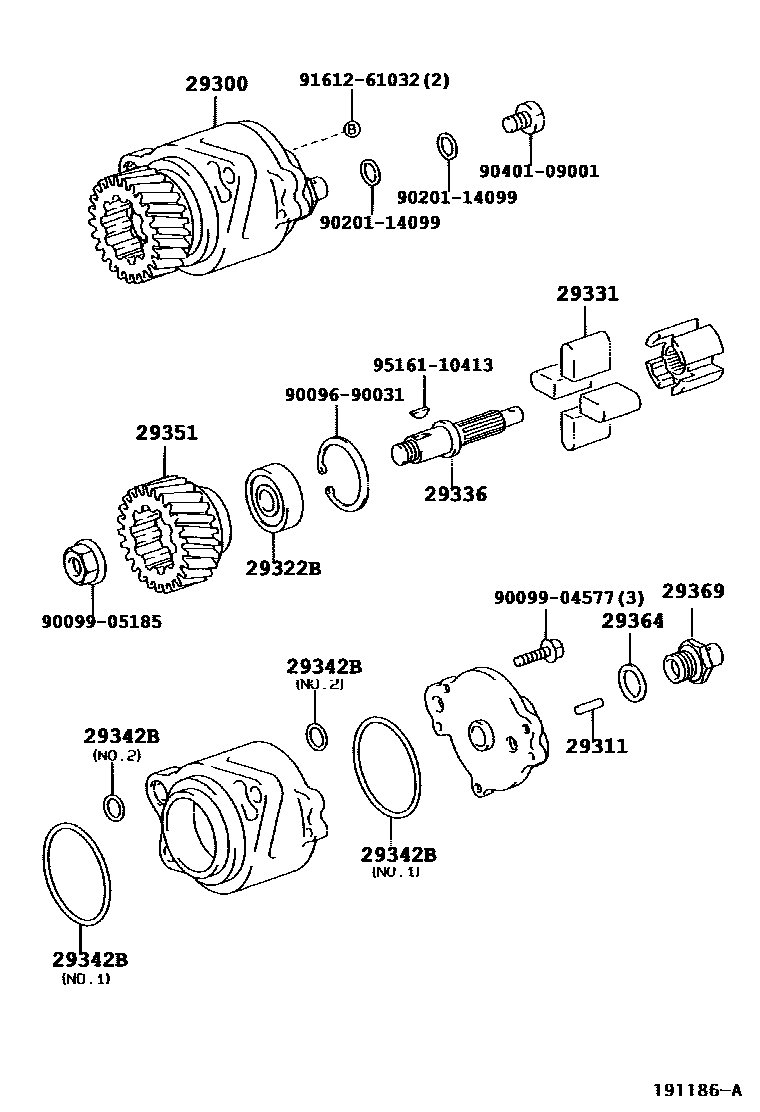

VACUUM PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

29300PUMP ASSY, VACUUM

main29300-17010i1HZ..HZB4#,5#200108-200408

main29300-17030i1HDFTE..HDB5#200108-200408

main29300-58040i15BFTE..BB58199907-200408

main29300-58050i15BF,3B..BB4#,5#199301-199902

main29300-58060i1BZFPE..BZB40,50200408-201501

main29300-78060iN04C..XZB4#,5#200408-201010

main29300-78061iN04C..XZB4#,5#201010-201202

main29300-E0051iN04C..XZB4#,5#201309-201501

main29300-E0090iN04C..XZB4#,5#201506-201612

main29300-E0100iN04C..XZB4#,5#201202-201309

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU200408-201202

mainSM21200518×2iN04C..XZB4#,5#201501-201506

29322BBEARING, VACUUM PUMP

main90099-10185i1BZFPE..BZB40,50201501

mainS291721160iN04C..XZB4#,5#201501-201506

29331BLADE, VACUUM PUMP, A

main29331-27010×5i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

main29331-58050×4i1H#..HDB5#,HZB4#,5#; 3B..BB4#199301-199405

main29331-67020×5iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

main29331-EV020×5iN04C..XZB4#,5#201506-201612

mainS293311100×5iN04C..XZB4#,5#201309-201501

29336SHAFT, VACUUM PUMP

main29336-58040i1BZFPE..BZB40,50..STD200408-201108

main29336-58050iN04C..XZB51..SULNG..6FC200408-201108

main29336-58060i15BF,3B..BB4#,58199902-199907

mainS293361030iN04C..XZB4#,5#201309-201501

29342PACKING, VACUUM PUMP

main29343-EV020iN04C..XZB4#,5#201202-201309

main29343-EV030iN04C..XZB4#,5#201506-201612

mainSZ01046050iN04C..XZB4#,5#201309-201501

29342BRING, O

main29342-17010i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main29342-58010i15BFTE,1BZFPE..BB58,BZB40,50; 1H#..HDB5#,HZB4#,5#199907-200408

main29342-64010×2i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

mainSZ01046051iN04C..XZB4#,5#201309-201501

29351GEAR, VACUUM PUMP

main29351-17010i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main29351-17030i1HDFTE..HDB5#200108-200408

main29351-58050i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

main29351-78061iN04C..XZB51..SULNG201010-201108

mainS136331050iN04C..XZB4#,5#201501-201506

29364WASHER, VACUUM PUMP

main29364-66010iN04C..XZB51..SULNG201010-201501

29369VALVE SUB-ASSY, CHECK

main29369-64030iN04C..XZB4#,5#..DX,EX,GX,LX,STD201010-201202

main29369-EV020iN04C..XZB4#,5#201202-201309

main29369-EV060iN04C..XZB4#,5#201506-201612

mainS293011270iN04C..XZB4#,5#201501-201506

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9020114099

main90201-14099

9040109001

main90401-09001

9161261032

main91612-61032

9516110413

main95161-10413

17 parts on this diagram · 7 diagrams in section
