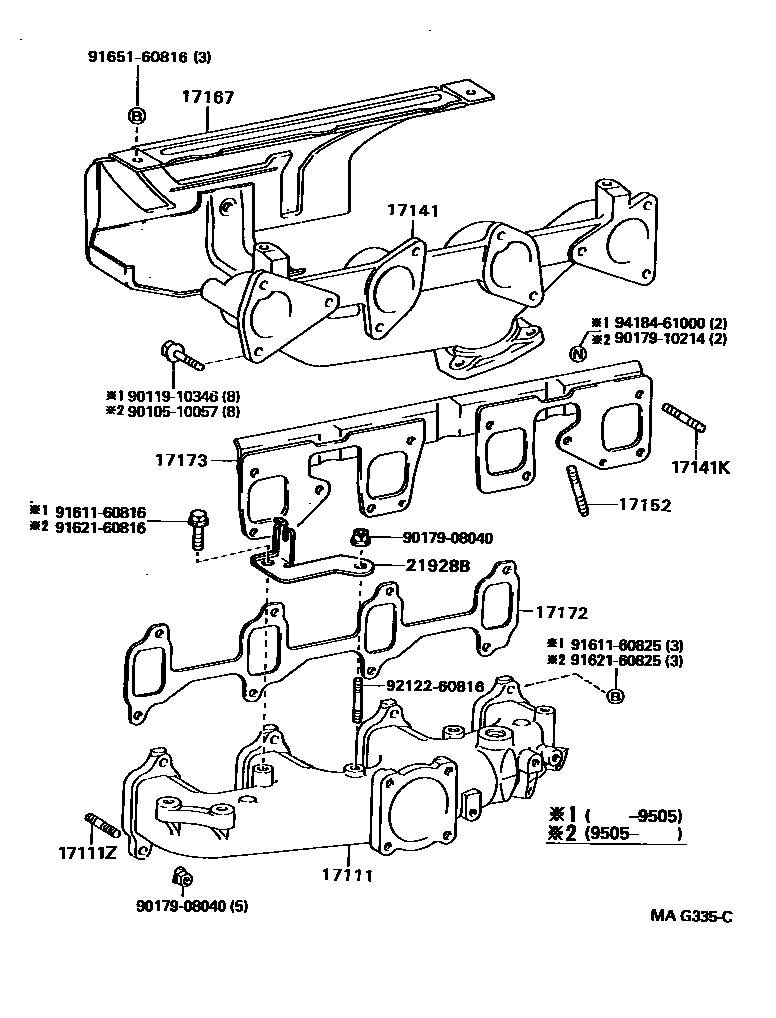

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

17111MANIFOLD, INTAKE

main17101-17020i1HDFT..HDB5#199505-199907

main17101-48011i1BZFPE..BZB40,50..STD200408-201108

main17111-17011i1HDT,1HZ..HDB5#,HZB4#,5#199301-199709

main17111-17012i1HZ..HZB4#,5#199709-199805

main17111-17013i1HZ..HZB4#,5#199805-199905

main17111-17014i1HZ..HZB4#,5#199907-200002

main17111-17015i1HZ..HZB4#,5#200002-200408

main17111-17030i1HDFTE..HDB5#199907-200104

main17111-17031i1HDFTE..HDB5#200104-200408

main17111-56200i3B..BB4#199301-199505

main17111-58040i15BF..BB5#199512-199907

main17111-58090i3B..BB4#199505-199907

main17111-58120i15BFTE..BB58199907-200408

main17111-78050iN04C..XZB4#,5#200408-201108

main17111-E0351iN04C..XZB4#,5#201108-201501

main17111-E0352iN04C..XZB4#,5#201607-201612

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08352×5i3B..BB4#199301-199907

main92132-60820×2i15BF..BB5#199512-199907

17141MANIFOLD, EXHAUST

main17141-17010i1HZ..HZB4#,5#199301-199805

main17141-17011i1HZ..HZB4#,5#199805-199907

main17141-17020i1HDT..HDB5#199301-199505

main17141-17030i1HDFT..HDB5#199505-199904

main17141-17031i1HDFTE..HDB5#199907-200408

main17141-56060i3B..BB4#199301-199907

main17141-58030i15BF..BB5#199512-199907

main17141-58031i1BZFPE..BZB40,50201501

main17141-58070i15BFTE..BB58199907-200408

main17141-78081iN04C..XZB4#,5#..(DX,EX,GX,LX,STD)..(4FC,5F,6F)200408-200708

main17141-78100iN04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU200708-201108

main17141-78190iN04C..XZB50,51..6FC200512-200708

main17141-78210iN04C..XZB50,51..HDCR..CBU200708-201108

main17141-E0340iN04C..XZB50,51..HDCR201108-201501

main17141-E0370iN04C..XZB4#,5#..DCR201501

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90031-16069×6iN04C..XZB51..SULNG..6FC200408-201108

main90116-10063×2i15BF,3B..BB4#,5#199505-199907

main90116-10098×2i3B..BB4#199301-199505

main90116-10198×4i1BZFPE..BZB40,50..STD200408-201108

mainSZ12610012×4iN04C..XZB4#,5#201501

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90031-16091×3iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU200408-201108

main90116-10087×3i3B..BB4#199301-199505

main90126-10006×3i15BFTE,1BZFPE..BB58,BZB40,50; 1H#..HDB5#,HZB4#,5#199907-200408

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-17030i1HZ..HZB4#,5#199301-199802

main17167-17031i1HZ..HZB4#,5#199802-199907

main17167-17040i1HDT..HDB5#199301-199505

main17167-17050i1HDFT..HDB5#199505-199907

main17167-17060i1HDFTE..HDB5#199907-200108

main17167-17061i1HDFTE..HDB5#200108-200205

main17167-17062i1HDFTE..HDB5#200205-200408

main17167-17080i1HZ..HZB4#,5#199907-200408

main17167-56060i3B..BB4#199301-199907

main17167-58040i15BF..BB5#199512-199907

main17167-58060i15BFTE..BB58199907-200108

main17167-58061i15BFTE..BB58200108-200408

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-56010i3B..BB4#199301-199505

main17171-58010i1BZFPE..BZB40,50200203-200408

main17171-58020i3B..BB4#199505-199907

main17171-58030i15BFTE..BB58199907-200408

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-17010×2i1HDT,1HZ..HDB5#,HZB4#,5#199301-199907

main17173-17020×2i1HDFT..HDB5#199505-199907

main17173-56040i3B..BB4#199301-199907

main17173-58030i15BF..BB5#199512-199907

main17173-58050i15BFTE..BB58199907-200408

main17173-78040×4iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU200408-201108

mainS171041880×4iN04C..XZB4#,5#201501-201612

21928BSUPPORT, THROTTLE WIRE

main21928-58080i3B..BB4#199301-199907

main21928-58100i15BF..BB5#199512-199907

9010510057

main90105-10057

9011910346

main90119-10346

9017908040

main90179-08040

9017910214

main90179-10214

9161160816

main91611-60816

9161160825

main91611-60825

9162160816

main91621-60816

9162160825

main91621-60825

9165160816

main91651-60816

9212260816

main92122-60816

9418461000

main94184-61000

20 parts on this diagram · 19 diagrams in section
