V-BELT

1601WATER PUMP

→ Go to FIG 16-01

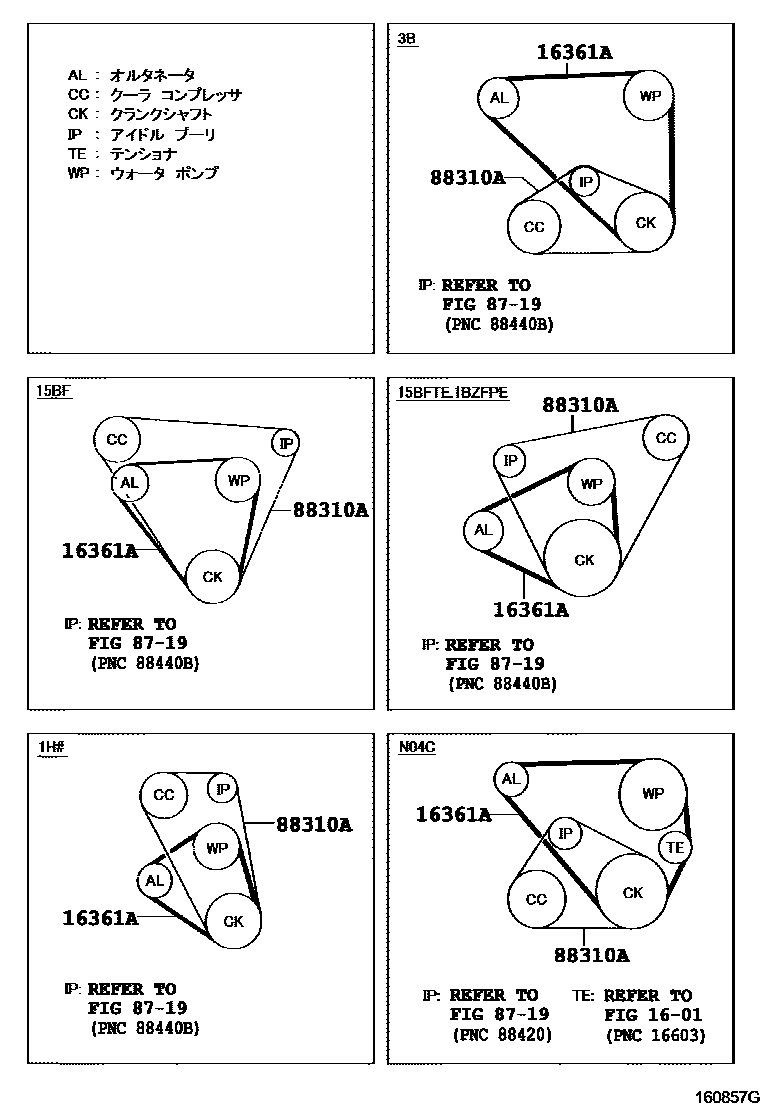

16361ABELT, V(FOR FAN & ALTERNATOR)

main90038-39010iN04C..XZB51..SULNG200408-200512

main90038-39016iN04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU; N04C..XZB50..IV5;N04C..XZB40..6FC..IV5200907-201501

main90916-02215i1BZFPE..BZB40,50..LX200203-200408

main90916-02239i3B..BB40..STD..WOC199301-199907

main90916-02330i1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,49S)..CBU199301-199801

main90916-02331i1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG199301-199907

main90916-02375i3B..BB4#..HRF..LX199301-199907

main90916-02418i15BF..BB5#199512-199907

main90916-02452i1H#..HDB50,HZB4#,5#..CBU200108-200408

main90916-02480i15BFTE..BB58199907-200408

mainSZ91049277iN04C..XZB4#,5#201501

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02227iBZB40,50200203-200408

main90916-02387iHDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC199301-199506

main90916-02419iHDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC199506-199703

main90916-02420iBB55199512-199705

main90916-02444iXZB4#,5#201501

main90916-02450iBB58..WC199907-200408

main90916-02451iHDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC199703-199907

main99367-31350iHDB5#,HZB4#,5#..WC199907-200408

4 parts on this diagram · 1 diagram in section
