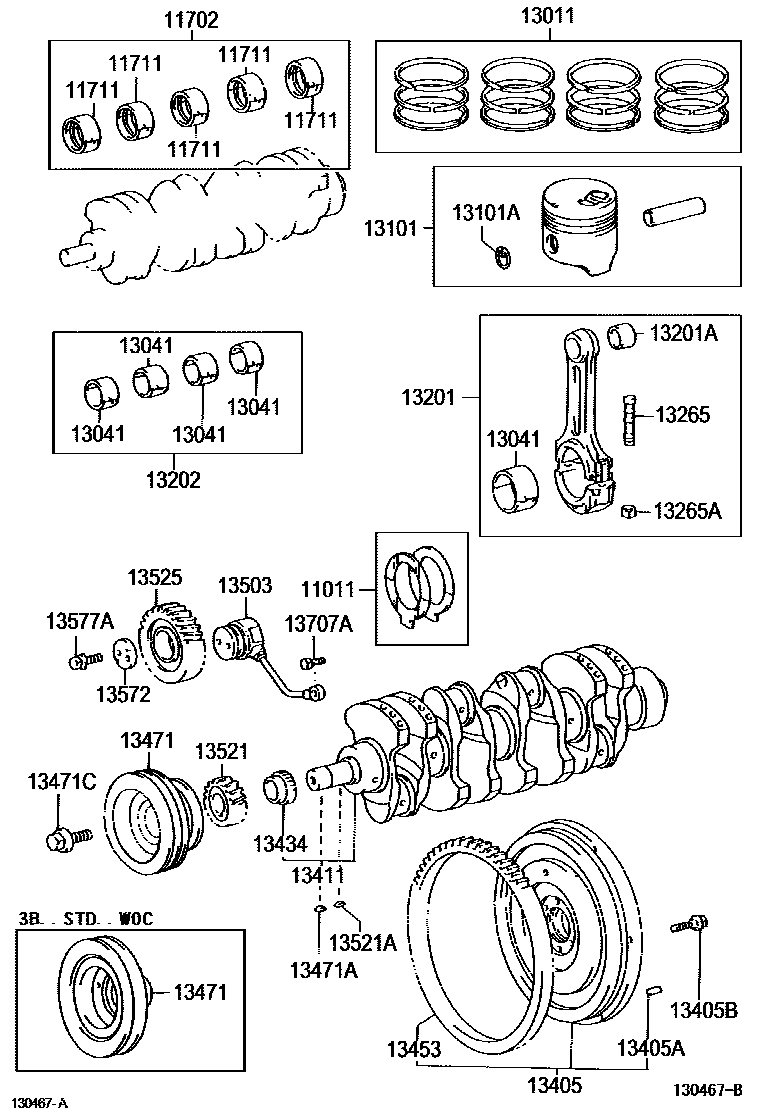

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0010 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-17010i1HD#,1HZ..HDB5#,HZB4#,5#199301-199907

main11011-56020i1BZFPE..BZB40,50201501-201611

main11011-58010i15BFTE..BB58199907-200408

main11011-78010iN04C..XZB51..SULNG200408-200512

main11011-E0030iN04C..XZB4#,5#201501

main11012-56020i1BZFPE..BZB40,50200203-200408

main11012-58010i15BFTE..BB58199907-200408

main11013-56020i1BZFPE..BZB40,50..LX200408-201501

main11013-58010i15BFTE..BB58199907-200408

11702BEARING SET, CRANKSHAFT

main11701-78100iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

main11701-E0040iN04C..XZB51..SULNG201107-201108

main11701-E0070iN04C..XZB4#,5#201501

main11704-17010i1HD#,1HZ..HDB5#,HZB4#,5#199301-199801

main11704-17011i1H#..HDB5#,HZB4#,5#199907-200408

main11704-56030i15BF,3B..BB4#,5#199301-199712

main11704-56031i15BF,3B..BB4#,58199712-199905

main11704-56032i1BZFPE..BZB40,50201501-201612

main11704-58020i15BFTE..BB58199907-200408

main11704-E0010iN04C..XZB4#,5#201108-201405

main11704-E0040iN04C..XZB4#,5#201501

main11705-17010i1HD#,1HZ..HDB5#,HZB4#,5#199301-199801

main11705-17011i1H#..HDB5#,HZB4#,5#199801-199907

main11705-56030i15BF,3B..BB4#,5#199301-199712

main11705-56031i15BF,3B..BB4#,58199712-199905

main11705-56032i1BZFPE..BZB40,50..STD200408-201108

main11705-58020i15BFTE..BB58199907-200408

main11705-E0010iN04C..XZB4#,5#201108-201405

main11705-E0040iN04C..XZB4#,5#201501

main11706-E0010iN04C..XZB4#,5#201108-201405

main11706-E0020iN04C..XZB4#,5#201406-201501

main11707-56030i15BF,3B..BB4#,5#199301-199712

main11707-56031i15BF,3B..BB4#,58199712-199905

main11707-56032i1BZFPE..BZB40,50200203-200408

main11707-58020i15BFTE..BB58199907-200408

main11707-E0010iN04C..XZB4#,5#201108-201405

main11707-E0020iN04C..XZB4#,5#201501

main11708-78010iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

main11708-78020iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)200408-200708

main11708-78030iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU200408-201108

main11708-78040iN04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU200408-201108

11711BEARING, CRANKSHAFT

main11701-17010-02×7i1HD#,1HZ..HDB5#,HZB4#,5#199301-199801

main11701-17010-03×7i1HD#,1HZ..HDB5#,HZB4#,5#199301-199801

main11701-17010-04×7i1HD#,1HZ..HDB5#,HZB4#,5#199301-199801

main11701-17010-05×7i1HD#,1HZ..HDB5#,HZB4#,5#199301-199801

main11701-17010-06×7i1HD#,1HZ..HDB5#,HZB4#,5#199301-199801

main11701-17011-02×7i1H#..HDB5#,HZB4#,5#199801-199907

main11701-17011-03×7i1H#..HDB5#,HZB4#,5#199801-199907

main11701-17011-04×7i1H#..HDB5#,HZB4#,5#199907-200408

main11701-17011-05×7i1H#..HDB5#,HZB4#,5#199907-200408

main11701-17011-06×7i1H#..HDB5#,HZB4#,5#199801-199907

main11701-17011-07×7i1H#..HDB5#,HZB4#,5#199907-200408

main11701-56020-01×5i15BF,3B..BB4#,5#199301-199712

main11701-56020-02×5i15BF,3B..BB4#,5#199301-199712

main11701-56021-01×5i15BF,3B..BB4#,58199712-199905

main11701-56021-02×5i15BF,3B..BB4#,58199712-199905

main11701-56022-01×5i1BZFPE..BZB40,50..LX200408-201501

main11701-56022-02×5i15BF,3B..BB4#,58199905-199907

main11701-58020-01×5i15BFTE..BB58199907-200408

main11701-58020-02×5i15BFTE..BB58199907-200408

13011RING SET, PISTON

main13011-17011i1H#..HDB5#,HZB4#,5#199301-199401

main13011-17020i1H#..HDB5#,HZB4#,5#199401-199501

main13011-17030i1HD#,1HZ..HDB5#,HZB4#,5#199501-199907

main13011-17040i1HDFTE..HDB5#199907-200408

main13011-48040i1BZFPE..BZB40,50200203-200408

main13011-58050i3B..BB4#199301-199905

main13011-58051i3B..BB4#199905-199907

main13011-58090i15BF..BB5#199512-199907

main13011-58110i15BFTE..BB58199907-200408

main13011-78190×4iN04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD200408-200609

main13011-78230×4iN04C..XZB4#,5#..4FC,6F200609-200708

main13013-17011i1H#..HDB5#,HZB4#,5#199301-199401

main13013-17020i1H#..HDB5#,HZB4#,5#199401-199501

main13013-17030i1HD#,1HZ..HDB5#,HZB4#,5#199501-199907

main13013-17040i1HDFTE..HDB5#199907-200408

main13013-48040i1BZFPE..BZB40,50..LX200408-201501

main13013-58050i3B..BB4#199301-199905

main13013-58051i3B..BB4#199905-199907

main13013-58090i15BF..BB5#199512-199907

main13013-58110i15BFTE..BB58199907-200408

main13014-17010i1HZ..HZB4#,5#199907-200408

main13014-48040i1BZFPE..BZB40,50..STD200408-201108

main13014-58050i3B..BB4#199301-199905

main13014-58051i3B..BB4#199905-199907

main13014-58090i15BF..BB5#199512-199907

main13014-58110i15BFTE..BB58199907-200408

main13015-48040i1BZFPE..BZB40,50200203-200408

main13015-58050i3B..BB4#199301-199905

main13015-58051i3B..BB4#199905-199907

main13015-58090i15BF..BB5#199512-199907

main13015-58110i15BFTE..BB58199907-200408

mainS1304E0020×4iN04C..XZB50,51..HDCR201108-201501

13041BEARING, CONNECTING ROD

main13041-17010-02×6i1H#..HDB5#,HZB4#,5#199301-199408

main13041-17010-03×6i1H#..HDB5#,HZB4#,5#199301-199408

main13041-17010-04×6i1H#..HDB5#,HZB4#,5#199301-199408

main13041-17010-05×6i1H#..HDB5#,HZB4#,5#199301-199408

main13041-17010-06×6i1H#..HDB5#,HZB4#,5#199301-199408

main13041-17011-02×6i1H#..HDB5#,HZB4#,5#199907-200408

main13041-17011-03×6i1H#..HDB5#,HZB4#,5#199907-200408

main13041-17011-04×6i1H#..HDB5#,HZB4#,5#199907-200408

main13041-17011-05×6i1H#..HDB5#,HZB4#,5#199907-200408

main13041-17011-06×6i1HD#,1HZ..HDB5#,HZB4#,5#199408-199907

main13041-56040-01×4i3B..BB4#199301-199505

main13041-56040-02×4i3B..BB4#199301-199505

main13041-58020-01×4i15BF,3B..BB4#,5#199505-199712

main13041-58020-02×4i15BF,3B..BB4#,5#199505-199712

main13041-58031-01×4i15BF,3B..BB4#,58199712-199812

main13041-58031-02×4i15BF,3B..BB4#,58199712-199812

main13041-58032-01×4i1BZFPE..BZB40,50..STD200408-201108

main13041-58032-02×4i1BZFPE..BZB40,50..STD200408-201108

main13041-58040-01×4i15BFTE..BB58199907-200408

main13041-58040-02×4i15BFTE..BB58199907-200408

main13041-58050-01×4i1BZFPE..BZB40,50201511

main13041-58050-02×4i1BZFPE..BZB40,50201511

main13041-78060iN04C..XZB51..SULNG200408-200512

main13041-E0610iN04C..XZB51..SULNG201107-201108

main13041-E0690iN04C..XZB4#,5#201501

13101PISTON SUB-ASSY, W/PIN

main13101-17010-01×6i1HZ..HZB4#,5#199301-199505

main13101-17010-02×6i1HZ..HZB4#,5#199301-199505

main13101-17010-03×6i1HZ..HZB4#,5#199301-199505

main13101-17040-01×6i1HDT..HDB5#199301-199410

main13101-17040-02×6i1HDT..HDB5#199301-199410

main13101-17040-03×6i1HDT..HDB5#199301-199410

main13101-17050-01×6i1HDT..HDB5#199410-199505

main13101-17050-02×6i1HDT..HDB5#199410-199505

main13101-17050-03×6i1HDT..HDB5#199410-199505

main13101-17071-01×6i1HZ..HZB4#,5#199505-199907

main13101-17071-02×6i1HZ..HZB4#,5#199505-199907

main13101-17071-03×6i1HZ..HZB4#,5#199505-199907

main13101-17080-01×6i1HDFT..HDB5#199505-199702

main13101-17080-02×6i1HDFT..HDB5#199505-199702

main13101-17080-03×6i1HDFT..HDB5#199505-199702

main13101-17090-01×6i1HDFT..HDB5#199702-199801

main13101-17090-02×6i1HDFT..HDB5#199702-199801

main13101-17090-03×6i1HDFT..HDB5#199702-199801

main13101-17091-01×6i1HDFT..HDB5#199801-199907

main13101-17091-02×6i1HDFT..HDB5#199801-199907

main13101-17091-03×6i1HDFT..HDB5#199801-199907

main13101-17100-01×6i1HZ..HZB4#,5#199907-200408

main13101-17100-02×6i1HZ..HZB4#,5#199907-200408

main13101-17100-03×6i1HZ..HZB4#,5#199907-200408

main13101-17110-01×6i1HDFTE..HDB5#199909-200408

main13101-17110-02×6i1HDFTE..HDB5#199909-200408

main13101-17110-03×6i1HDFTE..HDB5#199909-200408

main13101-48021-01×4i1BZFPE..BZB40,50..STD200408-201108

main13101-48021-02×4i1BZFPE..BZB40,50201501

main13101-48021-03×4i1BZFPE..BZB40,50201501

main13101-58050-01×4i3B..BB4#199301-199907

main13101-58050-02×4i3B..BB4#199301-199907

main13101-58050-03×4i3B..BB4#199301-199907

main13101-58090-01×4i15BF..BB5#199512-199907

main13101-58090-02×4i15BF..BB5#199512-199907

main13101-58090-03×4i15BF..BB5#199512-199907

main13101-58120-01×4i15BFTE..BB58199907-200408

main13101-58120-02×4i15BFTE..BB58199907-200408

main13101-58120-03×4i15BFTE..BB58199907-200408

main13103-17010×6i1HZ..HZB4#,5#199301-199505

main13103-17040×6i1HDT..HDB5#199301-199410

main13103-17050×6i1HDT..HDB5#199410-199505

main13103-17071×6i1HZ..HZB4#,5#199505-199907

main13103-17080×6i1HDFT..HDB5#199505-199702

main13103-17090×6i1HDFT..HDB5#199702-199801

main13103-17091×6i1HDFT..HDB5#199801-199907

main13103-17100×6i1HZ..HZB4#,5#199907-200408

main13103-17110×6i1HDFTE..HDB5#199907-200408

main13103-48021×4i1BZFPE..BZB40,50200203-200408

main13103-58050×4i3B..BB4#199301-199907

main13103-58090×4i15BF..BB5#199512-199907

main13103-58120×4i15BFTE..BB58199907-200408

main13104-17010×6i1HZ..HZB4#,5#199907-200408

main13104-48021×4i1BZFPE..BZB40,50..LX200408-201501

main13104-58050×4i3B..BB4#199301-199907

main13104-58090×4i15BF..BB5#199512-199907

main13104-58120×4i15BFTE..BB58199907-200408

main13105-48021×4i1BZFPE..BZB40,50201501

main13105-58050×4i3B..BB4#199301-199907

main13105-58090×4i15BF..BB5#199512-199907

main13105-58120×4i15BFTE..BB58199907-200408

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90035-21020×8iN04C..XZB51..SULNG200408-200512

main90521-32004×12i1HZ..HZB4#,5#199301-199907

main90521-34002×8i3B..BB4#199301-199907

main90521-36001×2i1HDT..HDB5#199410-199505

main90521-37007×8i1BZFPE..BZB40,50201501

main90521-40002×8i15BFTE..BB58199907-200408

mainSZ52037001×8iN04C..XZB4#,5#201501

13201ROD SUB-ASSY, CONNECTING

main13201-17010×6i1HZ..HZB4#,5#199301-199907

main13201-17020×6i1HDT..HDB5#199301-199501

main13201-17022×6i1HD#..HDB5#199501-199907

main13201-49055×4i1BZFPE..BZB40,50..STD200408-201108

main13201-49056×4i1BZFPE..BZB40,50201511

main13201-59145×4i3B..BB4#199301-199505

main13201-59146i3B..BB4#199505-199907

main13201-59185×4i1BZFPE..BZB40,50200203-200404

main13201-59205×4i15BFTE..BB58199907-200404

main13201-59275×4i15BFTE..BB58200404-200408

main13201-78030×4iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

main13260-E0050×4iN04C..XZB51..SULNG201107-201108

13201ABUSH(FOR CONNECTING ROD SMALL END)

main13271-89102×4iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

main90999-73124×4i3B..BB4#199301-199505

main90999-73126×6i1HZ..HZB4#,5#199301-199907

main90999-73127×6i1HDT..HDB5#199301-199501

main90999-73134×4i1BZFPE..BZB40,50201501

main90999-73137×6i1HDFTE..HDB5#199907-200408

main90999-73141×4i15BFTE..BB58199907-200408

mainS132721400×4iN04C..XZB51..SULNG201106-201108

13202BEARING SET, CONNECTING ROD

main13204-17010i1H#..HDB5#,HZB4#,5#199301-199408

main13204-17011i1HDFTE..HDB5#; 1HZ..HZB4#,5#199907-200408

main13204-56040i3B..BB4#199301-199505

main13204-58020i15BF,3B..BB4#,5#199505-199712

main13204-58031i15BF,3B..BB4#,58199712-199812

main13204-58032i1BZFPE..BZB40,50..LX200408-201501

main13204-58040i15BFTE..BB58199907-200408

main13204-58050i1BZFPE..BZB40,50201511

main13205-17010i1H#..HDB5#,HZB4#,5#199301-199408

main13205-17011i1HD#,1HZ..HDB5#,HZB4#,5#199408-199907

main13205-56040i3B..BB4#199301-199505

main13205-58020i15BF,3B..BB4#,5#199505-199712

main13205-58031i15BF,3B..BB4#,58199712-199812

main13205-58032i1BZFPE..BZB40,50..LX200408-201501

main13205-58040i15BFTE..BB58199907-200408

main13205-58050i1BZFPE..BZB40,50201511

main13207-56040i3B..BB4#199301-199505

main13207-58020i15BF,3B..BB4#,5#199505-199712

main13207-58031i15BF,3B..BB4#,58199712-199812

main13207-58032i1BZFPE..BZB40,50201501-201511

main13207-58040i15BFTE..BB58199907-200408

main13207-58050i1BZFPE..BZB40,50201511

13265BOLT, CONNECTING ROD

main13265-17010×12i1H#..HDB5#,HZB4#,5#199907-200408

main13265-58020×8i1BZFPE..BZB40,50200203-200408

main13265-58030×8i15BFTE..BB58199907-200408

main13265-89103×8iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

main13265-E0010×8iN04C..XZB4#,5#201501

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main13266-58010×8i15BF,3B..BB4#,5#199301-199907

13405FLYWHEEL SUB-ASSY

main13405-17010i1HDT,1HZ..HDB5#,HZB4#,5#..5F199301-199907

main13405-17020i1HDFT..HDB5#..MTM199505-199907

main13405-56040i3B..BB4#199301-199907

main13405-58040i15BF..BB5#199512-199907

main13405-58060i15BFTE..BB58199907-200408

main13405-58070i1BZFPE..BZB40,50..LX200408-201501

main13450-78060iN04C..XZB40,50,51..MTM200408-200610

main13450-78061iN04C..XZB40,50,51..5F200610-200901

main13450-78062iN04C..XZB50..WOC;N04C..XZB40..5F..IV5200901-200908

main13450-78080iN04C..XZB4#,5#..(EX,GX,LX,STD)..4FC200408-200708

main13450-78081iN04C..XZB51..IV5200901-200908

main13450-78120iN04C..XZB40,50,51..5F201008-201501

main13450-E0L40iN04C..XZB51..SULNG201106-201108

main13450-E0L50iN04C..XZB40,50,51..5F201501

main13450-E0P20iN04C..XZB4#,5#..6FC201501

main13451-17020i1HD#,1HZ..HDB5#,HZB4#,5#..4FC199301-199907

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1HD#,1HZ..HDB5#,HZB4#,5#..4FC199301-199907

main90250-10008×2iN04C..XZB50,51..6F200408-200708

main90250-10192×3i1HDT,1HZ..HDB5#,HZB4#,5#..5F; 3B..BB4#199301-199907

mainSM21201024×2iN04C..XZB40,50,51..5F201501

13405BBOLT, FLYWHEEL SETTING

main90031-05112×6iN04C..XZB50,51..6F200408-200708

main90031-09050×6iN04C..XZB4#,5#..(EX,GX,LX,STD)..4FC200408-200708

main90105-12169×8i1HD#,1HZ..HDB5#,HZB4#,5#..MTM199301-199907

main90913-01015×8i1BZFPE..BZB40,50..STD200408-201108

mainS134551550×8iN04C..XZB4#,5#..6FC201501

mainS134551820×8iN04C..XZB40,50,51..5F201501

13411CRANKSHAFT

main13400-78080iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5200803-200908

main13400-78150iN04C..XZB4#,5#..6FC201008-201106

main13401-56040i3B..BB4#199301-199505

main13401-58050i15BF..BB5#199512-199903

main13401-58051i1BZFPE..BZB40,50..LX200408-201501

main13401-58060i3B..BB4#199505-199907

main13401-58080i15BFTE..BB58199907-200408

main13411-17010i1HD#,1HZ..HDB5#,HZB4#,5#199301-199801

main13411-17011i1H#..HDB5#,HZB4#,5#199907-200105

main13411-17012i1H#..HDB5#,HZB4#,5#200105-200408

main13411-78011iN04C..XZB51..SULNG200408-200512

main13411-78081iN04C..XZB51..SULNG201106-201108

main13411-E0071iN04C..XZB4#,5#201501

13434SPLINE, OIL PUMP DRIVE

main13519-56010i15BF,3B..BB4#,5#199301-199903

main13519-56011i1BZFPE..BZB40,50201501

13453GEAR, FLYWHEEL RING

main13453-17010i1HD#,1HZ..HDB5#,HZB4#,5#..MTM199301-199907

main13453-56020i3B..BB4#199301-199907

main13453-78020iN04C..XZB50..WOC;N04C..XZB51..IV5;N04C..XZB40..5F..IV5200901-200908

main13453-89102iN04C..XZB4#,5#..5F,6FC200408-200901

main13453-E0080iN04C..XZB4#,5#..DX,EX,GX,LX,STD201106-201501

13471PULLEY, CRANKSHAFT

main13408-17010i1HDT,1HZ..HDB5#,HZB4#,5#199301-199907

main13408-17020i1HDFT..HDB5#199505-199907

main13408-17040i1H#..HDB5#,HZB4#,5#199907-200408

main13470-48020i1BZFPE..BZB40,50..LX200408-201501

main13470-56181i3B..BB40..STD..WOC199301-199505

main13470-58031i3B..BB4#..DX,LX;3B..BB40..STD..WC; 3B..BB40..STD..WOC199301-199905

main13470-58032i3B..BB4#..DX,LX;3B..BB40..STD..WC; 3B..BB40..STD..WOC199905-199907

main13470-58050i15BF..BB5#199512-199903

main13470-58051i15BFTE..BB58199907-200408

main13470-58060i3B..BB40..STD..WOC199505-199907

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i1BZFPE..BZB40,50..STD200408-201108

main95161-30516i1H#..HDB5#,HZB4#,5#199907-200408

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16037i3B..BB4#199301-199505

main90105-24001i1H#..HDB5#,HZB4#,5#199907-200408

main90901-19032i1BZFPE..BZB40,50201501

main90901-19061i15BFTE..BB58199907-200408

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-56030i3B..BB4#199301-199505

main13504-58010i15BF,3B..BB4#,5#199505-199907

main13504-58020i15BFTE..BB58199907-200408

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-17010i1HZ..HZB4#,5#199907-200408

main13521-17020i1HDFT..HDB5#199505-199907

main13521-17030i1HDFTE..HDB5#199907-200108

main13521-17040i1HDFTE..HDB5#200108-200408

main13521-56030i1BZFPE..BZB40,50200203-200408

main13521-58010i15BFTE..BB58199907-200408

main13521-78090iN04C..XZB4#,5#..6FC201008-201106

mainS135211660iN04C..XZB4#,5#..(EX,GX,LX,STD)..6FC201106-201501

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90032-81009iN04C..XZB4#,5#..DX,EX,GX,LX,STD201008-201501

main90281-06001iN04C..XZB50..WOC;N04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

main95161-30516i1H#..HDB5#,HZB4#,5#199907-200408

main95161-30519i1BZFPE..BZB40,50..LX200408-201501

mainSM17101028iN04C..XZB4#,5#201501

13525GEAR, IDLE, NO.1

main13508-56010i15BF,3B..BB4#,5#199301-199907

main13520-17010i1HDFTE..HDB5#200108-200408

main13520-48010i1BZFPE..BZB40,50201501

main13520-58010i15BFTE..BB58199907-200408

main13525-17010i1HDT,1HZ..HDB5#,HZB4#,5#199301-199907

main13525-17020i1HDFT..HDB5#199505-199907

main13525-17030i1HDFTE..HDB5#199907-200108

13572PLATE, IDLE GEAR THRUST

main13572-17010i1H#..HDB5#,HZB4#,5#199301-199501

main13572-17020i1HD#,1HZ..HDB5#,HZB4#,5#199501-199801

main13572-17021i1HZ..HZB4#,5#199907-200408

main13572-17030i1HDFTE..HDB5#200108-200408

main13572-56020i1BZFPE..BZB40,50201501

main13572-58010i15BFTE..BB58199907-200408

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90105-10194×3i15BFTE..BB58199907-200408

13707AUNION(FOR OIL PIPE, NO.1)

main90401-10026i1BZFPE..BZB40,50..STD200408-201108

28 parts on this diagram · 8 diagrams in section
