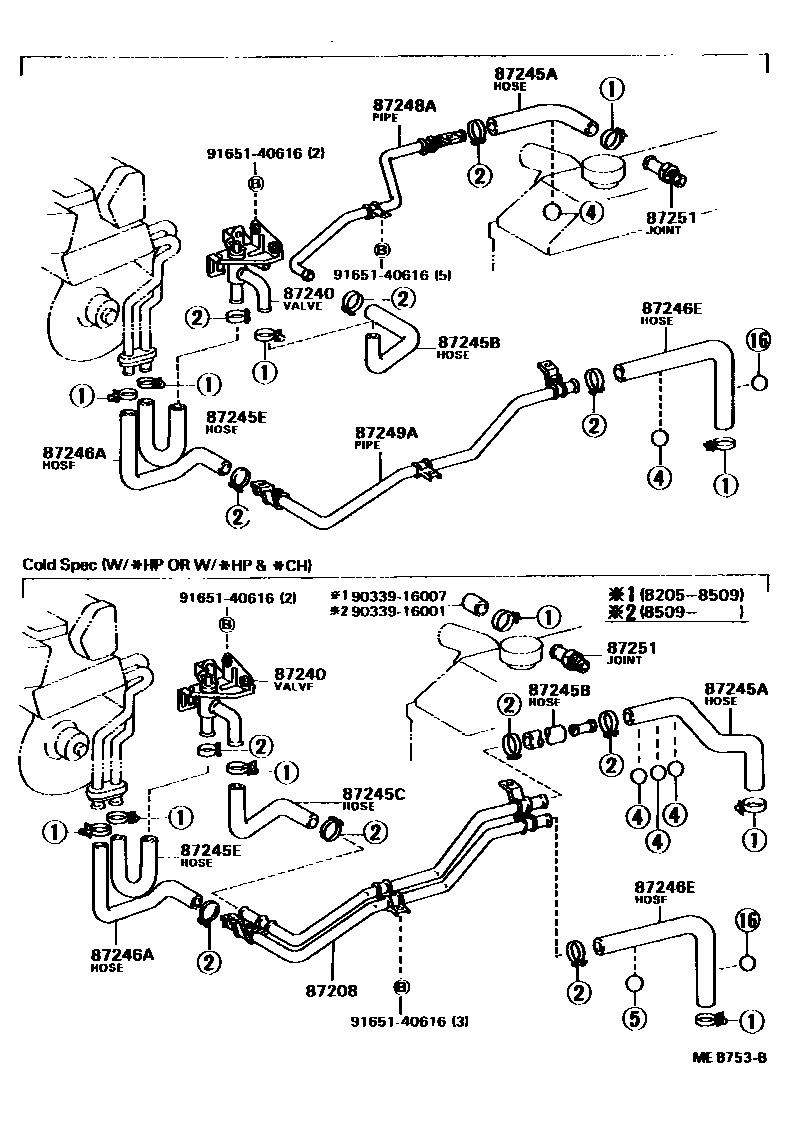

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0010 1 0011 1 0012 1 0013 1 0016 1CAMPING CAR 0017 1 0020 1 0021 1 0022 1 0023 1 0026 1 0028 1 0029 1 0030 1 0031 1 0032 1 0033 1 0034 1 0035 1CAMPING CAR 0036 1CAMPING CAR 0037 1 0038 1 0039 1 0040 1 0041 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-90B00iHB3#198205-199001

main87208-90B05iBB2#,3#; RB2#198205-199301

COLD SPEC

87240VALVE ASSY, HEATER WATER

main87240-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

87245AHOSE, HEATER WATER, INLET A

main87245-90B06iHB30,36198205-199001

main87245-90B10iRB2#..10S,26S198205-199301

COLD SPEC

main87245-90B11iBB2#,3#198205-199301

main87245-90B24iBB2#,3#,HB3#..10S,20S,26S,29S198205-198510

COLD SPEC

main87245-90B36iHB31,32198510-199001

main87245-90B42iHB3#198510-199001

COLD SPEC

main87245-90B71iHDB20,3#,HZB3#199001-199301

main87245-90B85iHDB20,3#,HZB3#199001-199301

COLD SPEC

main99552-30700iRB20198205-198408

*H,L=600

main99556-30700iRB2#198408-199301

87245BHOSE, HEATER WATER, INLET B

main87245-90B01iRB20198205-198408

main87245-90B02iRB2#198408-199301

main87245-90B03iBB2#,3#198205-199301

main87245-90B41iHB3#198510-199001

COLD SPEC

main99552-30500iHB30198205-198408

L=500,COLD SPEC

main99552-30700iBB2#,3#,RB20..26S,29S198205-198408

*H,L=650,COLD SPEC

main99556-30240iHDB20,3#,HZB3#199001-199301

main99556-30250iHDB20,3#,HZB3#199001-199301

main99556-30500iHB3#198408-198510

main99556-30700iBB2#,3#,RB2#..10S,26S,29S198408-199301

87245CHOSE, HEATER WATER ,INLET C

main87245-90B03iBB21,23,24,26,31,36,RB2#..10S,26S,29S198205-199301

COLD SPEC

main87245-90B04iHDB20,3#,HZB3#199001-199301

main87245-90B27iHB3#198205-199001

COLD SPEC

87245EHOSE, HEATER WATER, INLET E

main87245-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

87246AHOSE, HEATER WATER, OUTLET A

main87245-90B01iHDB20,3#,HZB3#199001-199301

main87245-90B04iBB2#,3#,RB2#198205-199301

87246EHOSE, HEATER WATER, OUTLET E

main87245-90B05iHB30,36198205-199001

main87245-90B25iBB2#,3#198205-199301

main87245-90B37iHB31,32198510-199001

main87245-90B67iHDB20,3#,HZB3#199001-199301

main99552-30500iRB20198205-198408

*H,L=460

main99556-30500iRB2#198408-199301

87248APIPE, HEATER WATER INLET, A

main87208-90B02iHB3#198205-199301

COLD SPEC

main87208-90B07iRB2#198205-199301

main87208-90B34iHDB20,3#,HZB3#199001-199301

main87208-90B37iHDB20,3#,HZB3#199001-199301

COLD SPEC

87249APIPE, HEATER WATER OUTLET, A

main87208-90B01iHB3#198205-199301

COLD SPEC

main87208-90B08iRB2#198205-199301

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-14010iRB2#198205-199301

main87251-30200×2iBB2#,3#,HB3#198205-199301

NO.1

main87251-60010iBB2#,3#,HB30,36198205-199301

NO.2

main87251-90B00iBB2#,3#198205-199301

NO.3

main87251-95400iHB31,32198510-199001

NO.2

9033916001

main90339-16001

9033916007

main90339-16007

9165140616

main91651-40616

14 parts on this diagram · 32 diagrams in section
