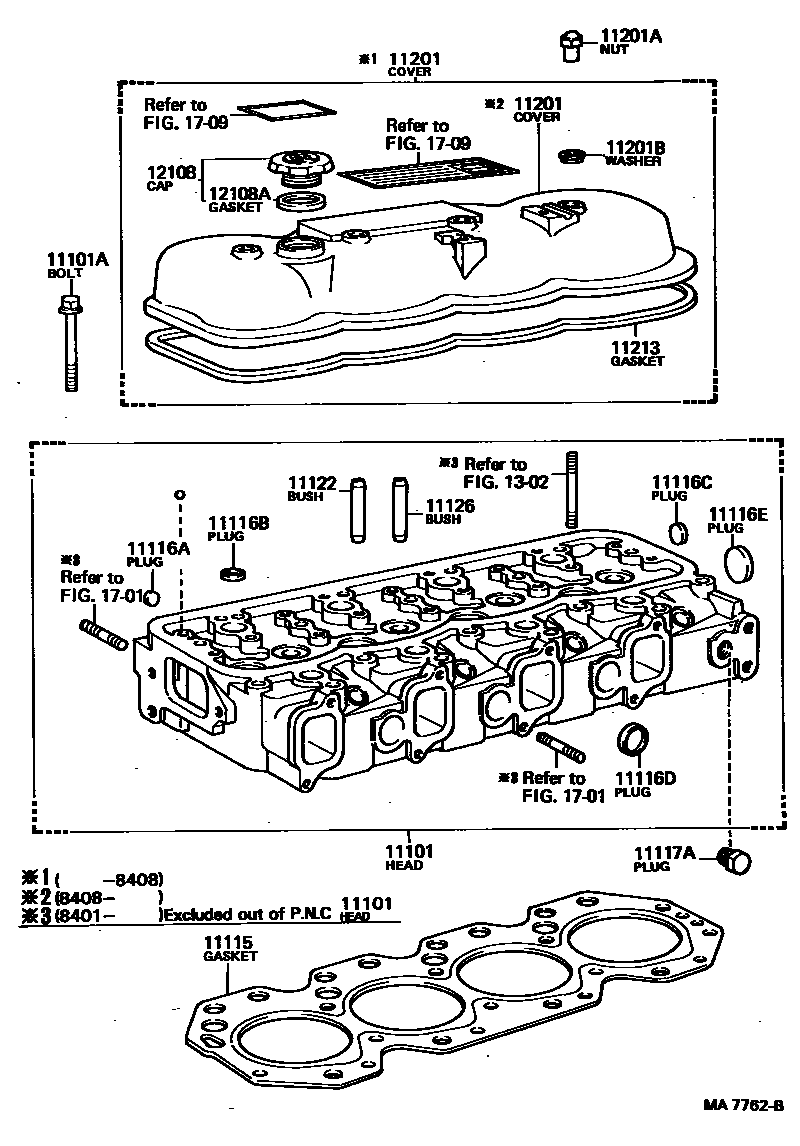

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX119-25
*12-1.25PX166.5-21
*12-1.25PX119-25
*12-1.25PX122.5-60
11115GASKET, CYLINDER HEAD
MARK 1,MARK 1
MARK 3,MARK 3
MARK 5,MARK 5
11116APLUG, TIGHT, NO.1
OD=12
OD=12
OD=20
OD=25
11116BPLUG, TIGHT, NO.2
OD=25
OD=25
OD=35
OD=40
11116CPLUG, TIGHT, NO.3
OD=21
OD=30
OD=40
11116DPLUG, TIGHT, NO.4
OD=28
OD=28
OD=45
OD=50
11116EPLUG, TIGHT, NO.5
OD=40
OD=25
OD=40
11117APLUG, W/HEAD TAPER SCREW, NO.1
W/O RR HEATER
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11201COVER SUB-ASSY, CYLINDER HEAD
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
1302CAMSHAFT & VALVE
1701MANIFOLD
1709CAUTION PLATE & NAME PLATE (ENGINE)
20 parts on this diagram · 9 diagrams in section
