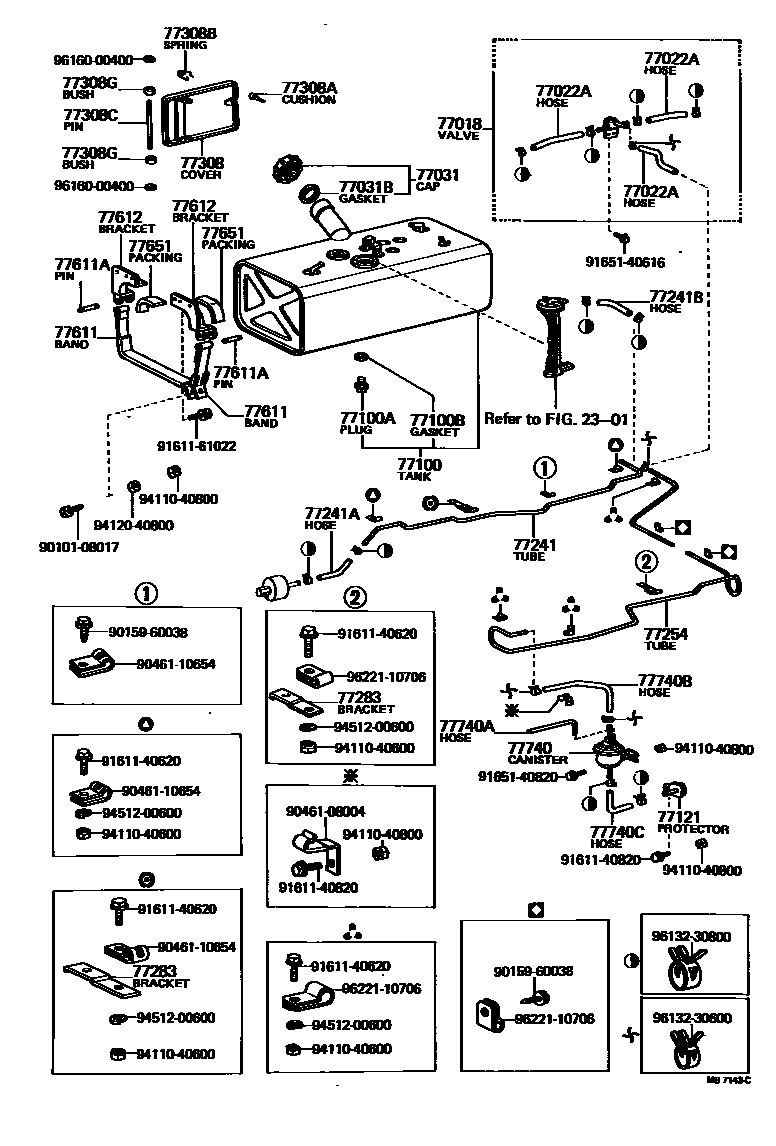

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2301FUEL PUMP & PIPE

→ Go to FIG 23-01

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36071iBB1#197708-198204

main77018-36090iRB1#197708-198204

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06034iBB10,RB11197708-197904

main95332-06040iBB1#,RB11197904-198204

main95332-08028×2iBB10,RB11197708-197904

main95332-08030×2iBB1#,RB1#197904-198204

77031CAP ASSY, FUEL TANK

main77310-12041iRB11197708-197911

main77310-55080iBB10197708-197911

77031BGASKET (FOR FUEL TANK CAP)

main77316-12040iRB11197708-197911

main77316-27010iBB10197708-197911

77100TANK ASSY, FUEL

main77001-36251iBB1#197708-198204

main77001-36340iRB1#197911-198204

main77001-36909iRB11197708-197911

77100APLUG(FOR FUEL TANK)

main90105-12018iBB1#,RB1#197708-198204

77100BGASKET(FOR FUEL TANK)

main90430-12245iBB1#,RB1#197708-198204

77121PROTECTOR, FUEL TUBE

main77243-36010iBB1#197708-198204

main77258-36010iRB1#197708-198204

77241TUBE, FUEL MAIN, NO.1

main77251-36233iRB11197708-197911

main77251-36321iBB1#197708-198004

main77251-36322iBB11198004-198204

main77251-36570iRB1#197911-198204

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95332-08020iRB1#197911-198204

main95335-08017iRB11197708-197911

L=170

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95332-08030iBB1#,RB12,13197708-198204

main95335-08015iRB11197708-197911

L=150

77254TUBE, FUEL EMISSION, NO.1

main77263-36011iRB1#197708-198204

77283BRACKET, FUEL TUBE

main77283-36040×2iBB1#,RB1#197708-198008

main77283-36041×2iBB11,RB13198008-198204

77308COVER SUB-ASSY, FUEL INLET BOX

main58802-90502iBB1#,RB1#197708-198204

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05080×2iBB1#,RB1#197708-198204

77308BSPRING, TORSION(FOR FUEL INLET BOX COVER)

main58827-90500iBB1#,RB1#197708-198204

77308CPIN, STRAIGHT(FOR FUEL INLET BOX COVER)

main58824-90501iBB1#,RB1#197708-198204

77308GBUSH(FOR FUEL INLET BOX COVER)

main58829-90500×2iBB1#,RB1#197708-198204

77611BAND, FUEL TANK

main77601-36070×2iBB1#,RB1#197708-198007

RH

main77601-36071×2iBB11,RB1#198007-198204

RH

main77602-36020×2iBB1#,RB1#197708-198007

LH

main77602-36021×2iBB11,RB1#198007-198204

LH

77611APIN (FOR FUEL TANK BAND)

main77629-36010×4iBB1#,RB1#197708-198204

77612BRACKET SUB-ASSY, FUEL TANK

main77501-36011×2iBB1#,RB1#197708-198204

RH

main77502-36011×2iBB1#,RB1#197708-198204

LH

77651PACKING, FUEL TANK BRACKET

main77651-36060×4iBB1#,RB1#197708-198007

main77651-36061×4iBB11,RB1#198007-198204

77740CANISTER ASSY, CHARCOAL

main77740-20131iRB11197708-197802

main77740-20160iRB1#197802-198204

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main90445-08167iRB1#197708-198005

L=1500

main90445-08209iRB1#198005-198204

77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main95332-06046iRB11197708-197904

main95332-06060iRB1#197904-198204

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main95332-08015iRB11197708-197904

main95332-08020iRB1#197904-198204

9010108017

main90101-08017

9015960038

main90159-60038

9046108004

main90461-08004

9046110654

main90461-10654

9161140620

main91611-40620

9161140820

main91611-40820

9161161022

main91611-61022

9165140616

main91651-40616

9165140820

main91651-40820

9411040600

main94110-40600

9411040800

main94110-40800

9412040800

main94120-40800

9451200600

main94512-00600

9613230600

main96132-30600

9613230800

main96132-30800

9616000400

main96160-00400

9622110706

main96221-10706

44 parts on this diagram · 5 diagrams in section
