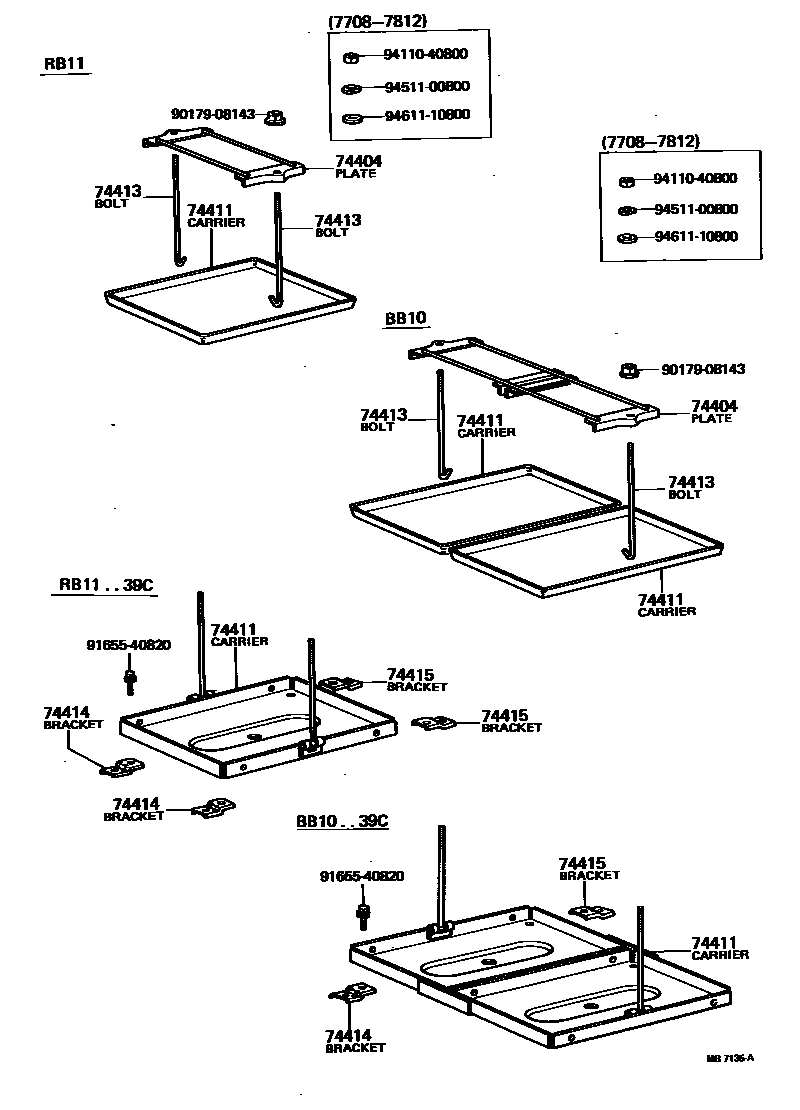

BATTERY CARRIER

74404PLATE SUB-ASSY, BATTERY SET

main58807-90740iBB1#197708-198204

main74404-60030iRB11197708-197812

main74404-90351iRB1#..21S,22S,25S,26S197812-198204

74411CARRIER, BATTERY

main57402-90743iRB1#..39C197708-198204

main57402-90744iBB1#..39C197708-198204

main57428-90740×2iBB1#,RB1#197708-198204

74413BOLT, BATTERY CLAMP

main58849-90500×2iBB1#,RB1#..21S,22S,25S,26S197708-198204

74414BRACKET, BATTERY, FR

main57554-90740×2iBB1#,RB1#..39C197708-198204

74415BRACKET, BATTERY, REAR

main57555-90740×2iBB1#,RB1#..39C197708-198204

9017908143

main90179-08143

9165540820

main91655-40820

9411040800

main94110-40800

9451100800

main94511-00800

9461110800

main94611-10800

10 parts on this diagram · 1 diagram in section
