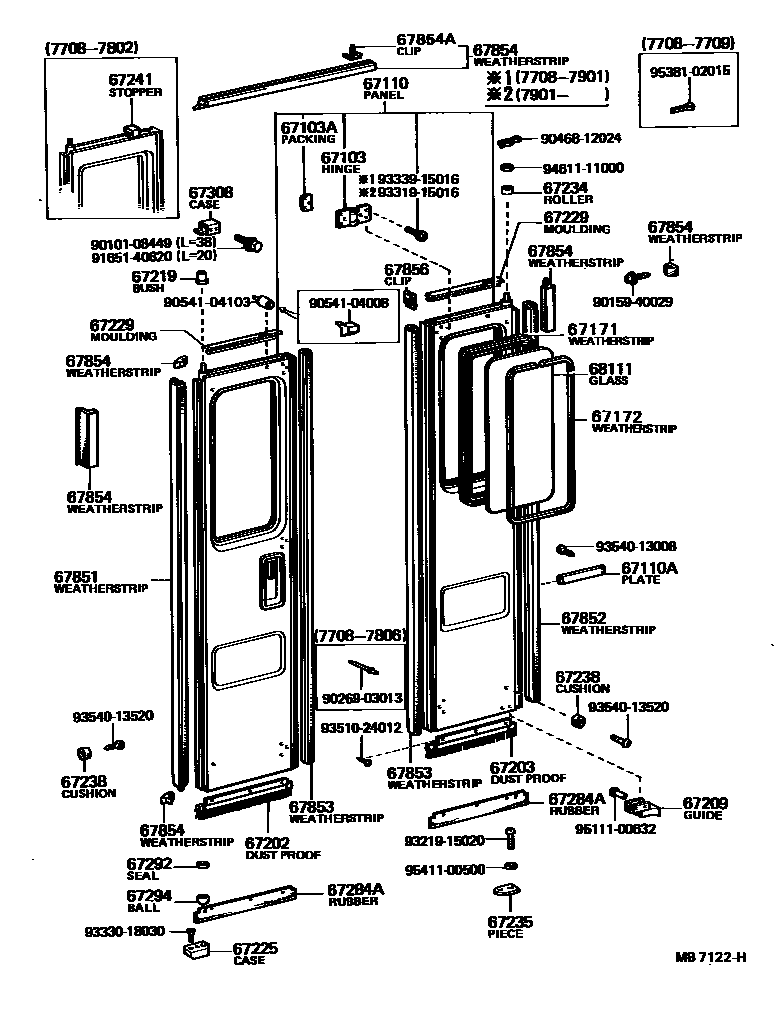

CENTER DOOR PANEL & GLASS

67103HINGE SUB-ASSY, CENTER DOOR, OUTER

main67103-90500×3iBB10,RB11197708-197709

main67103-90501×3iBB10,RB11197709-197903

main67103-90502×3iBB1#,RB1#197903-198204

67103APACKING, CENTER DOOR HINGE

main67151-90500×6iBB1#,RB1#197708-198204

67110PANEL ASSY, CENTER DOOR

main67110-90505iBB1#,RB1#..21S,22S,25S,26S197708-198204

main67110-90506iBB1#,RB1#..39C197708-198204

main67110-90509iBB11,RB13..25S,26S198008-198204

AUTO DOOR

67110ACAUTION PLATE, CENTER DOOR

main74532-90050iBB1#,RB1#..39C197708-198204

67171WEATHERSTRIP, CENTER DOOR GLASS, OUTER

main68171-90740×2iBB10,RB11197708-197808

main68171-90741×2iBB1#,RB1#197808-198204

67172WEATHERSTRIP, CENTER DOOR GLASS, INNER

main68172-90500×2iBB10,RB11197708-197808

main68172-90501×2iBB1#,RB1#197808-198204

67202DUST PROOF SUB-ASSY, CENTER DOOR, FRONT

main67201-90502iBB1#,RB1#197708-198204

67203DUST PROOF SUB-ASSY, CENTER DOOR, REAR

main67202-90506iBB1#,RB1#197708-198204

67209GUIDE, CENTER DOOR, LOWER

main67209-90500iBB1#,RB1#197708-198204

67219BUSH, CENTER DOOR UPPER BEARING CASE

main67219-90500iBB10,RB11197708-197807

L=20

main67219-90501iBB1#,RB1#197807-198204

L=10

67225CASE, CENTER DOOR LOWER BEARING, FRONT

main67225-90500iBB1#,RB1#197708-198204

67229MOULDING, CENTER DOOR, UPPER

main67228-90740iBB1#,RB1#..HRF197708-198204

FR

main67229-90740iBB1#,RB1#..HRF197708-198204

RR

67234ROLLER, CENTER DOOR UPPER GUIDE

main67234-90500iBB1#,RB1#197708-198204

67235PIECE, CENTER DOOR UNDER STOPPER

main67239-90500iBB1#,RB1#197708-198204

67238CUSHION, CENTER DOOR

main67224-90500×4iBB1#,RB1#197708-198204

DOOR

main67238-90500iBB1#,RB1#197708-198204

STEP

67241STOPPER, CENTER DOOR, UPPER

main67283-90740×2iBB10,RB11197708-197802

67284ARUBBER, CENTER DOOR LOWER DUST SEAL

main67284-90500×2iBB1#,RB1#197806-198204

67292SEAL, CENTER DOOR FRONT LOWER BEARING

main67292-90500iBB1#,RB1#197708-198204

67294BALL, CENTER DOOR FRONT LOWER BEARING

main67294-90500iBB1#,RB1#197708-198204

67308CASE SUB-ASSY, CENTER DOOR UPPER BEARING

main67308-90500iBB10,RB11197708-197810

main67308-90501iBB1#,RB1#197810-198007

main67308-90503iBB11,RB1#198007-198204

67851WEATHERSTRIP, CENTER DOOR, SIDE, FRONT

main67861-90503iBB10,RB11..21S,22S,25S,26S197708-197808

main67861-90504iBB10,RB11..39C197708-197808

main67861-90507iBB1#,RB1#..21S,22S,25S,26S197808-198204

main67861-90508iBB1#,RB1#..39C197808-198204

67852WEATHERSTRIP, CENTER DOOR, SIDE, REAR

main67862-90505iBB10,RB11..21S,22S,25S,26S197708-197808

main67862-90506iBB10,RB11..39C197708-197808

main67862-90507iBB1#,RB1#..21S,22S,25S,26S197808-198204

main67862-90508iBB1#,RB1#..39C197808-198204

67853WEATHERSTRIP, CENTER DOOR, CENTER

main67863-90500×2iBB10,RB11..21S,22S,25S,26S197708-197808

main67863-90501×2iBB10,RB11..39C197708-197808

main67863-90503×2iBB1#,RB1#..21S,22S,25S,26S197808-198204

main67863-90504×2iBB1#,RB1#..39C197808-198204

67854WEATHERSTRIP, CENTER DOOR UPPER

main67864-90500×2iBB10,RB11197804-197810

L=80

main67865-90501iBB10,RB11197708-197808

L=710

main67865-90502iBB10,RB11197808-197810

L=710

main67865-90503iBB1#,RB1#197810-198204

L=750

main67868-90501iBB10,RB11197708-197808

L=40

main67868-90503iBB1#,RB1#197808-198204

L=40

main67869-90500×2iBB10,RB11197708-197803

L=22

67854ACLIP, CENTER DOOR UPPER WEATHERSTRIP

main67868-30040×7iBB1#,RB1#197808-198204

67856CLIP, CENTER DOOR WEATHERSTRIP

main67866-90500×4iBB10,RB11197708-197901

68111GLASS, CENTER DOOR

main68111-90740×2iBB1#,RB1#..STD197708-198204

main68111-90741×2iBB1#,RB1#..BC;BB1#,RB1#..DLX197708-198204

9010108449

main90101-08449

9015940029

main90159-40029

9026903013

main90269-03013

9046812024

main90468-12024

9054104008

main90541-04008

9054104103

main90541-04103

9165140620

main91651-40620

9321915020

main93219-15020

9331915016

main93319-15016

9333018030

main93330-18030

9333915016

main93339-15016

9351024012

main93510-24012

9354013008

main93540-13008

9354013520

main93540-13520

9461111000

main94611-11000

9511100632

main95111-00632

9538102015

main95381-02015

9541100500

main95411-00500

45 parts on this diagram · 1 diagram in section
