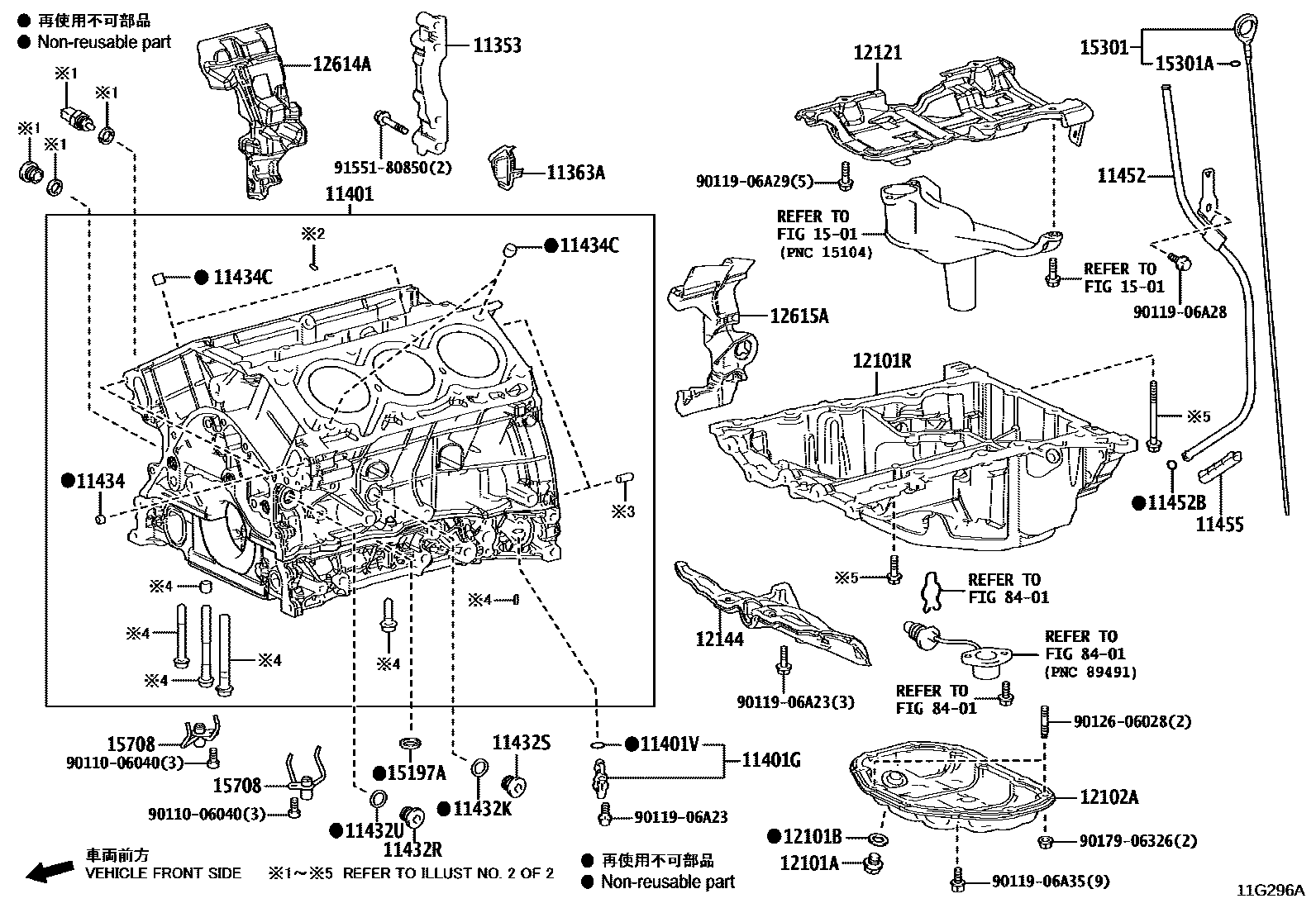

CYLINDER BLOCK
11353STAY, FLYWHEEL HOUSING SIDE
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
11432KGASKET, W/HEAD STRAIGHT SCREW PLUG
11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
11434PIN, STRAIGHT(FOR TIMING CHAIN COVER)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11455PROTECTOR, OIL LEVEL GAUGE GUIDE
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101RPAN SUB-ASSY, OIL, NO.1
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
12144SILENCER, OIL PAN COVER
12614ACOVER, ENGINE, NO.4
12615ACOVER, ENGINE, NO.5
1501ENGINE OIL PUMP
15197AGASKET, OIL PUMP
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15708NOZZLE SUB-ASSY, OIL, NO.1
8401SWITCH & RELAY & COMPUTER
9011006040
main90110-06040
9011906A23
main90119-06A23
9011906A28
main90119-06A28
9011906A29
main90119-06A29
9011906A35
main90119-06A35
9012606028
main90126-06028
9017906326
main90179-06326
9155180850
main91551-80850
36 parts on this diagram · 2 diagrams in section
