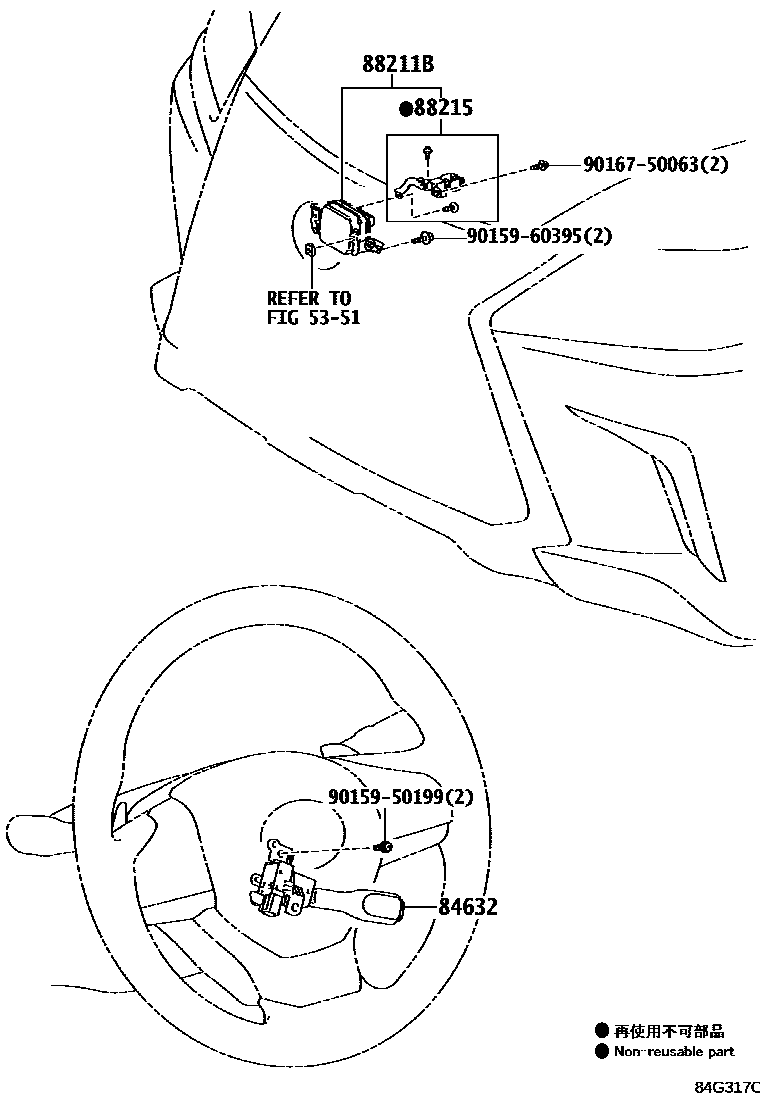

CRUISE CONTROL (AUTO DRIVE)

5351RADIATOR GRILLE

→ Go to FIG 53-51

84632SWITCH, CRUISE CONTROL MAIN

main84632-48010supersedes 84632-30010iURJ201201708

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-47090iURJ201201708-201903

main88210-48071iURJ201201904

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88201-60010iURJ201201708

9015950199

main90159-50199

9015960395

main90159-60395

9016750063

main90167-50063

7 parts on this diagram · 1 diagram in section
