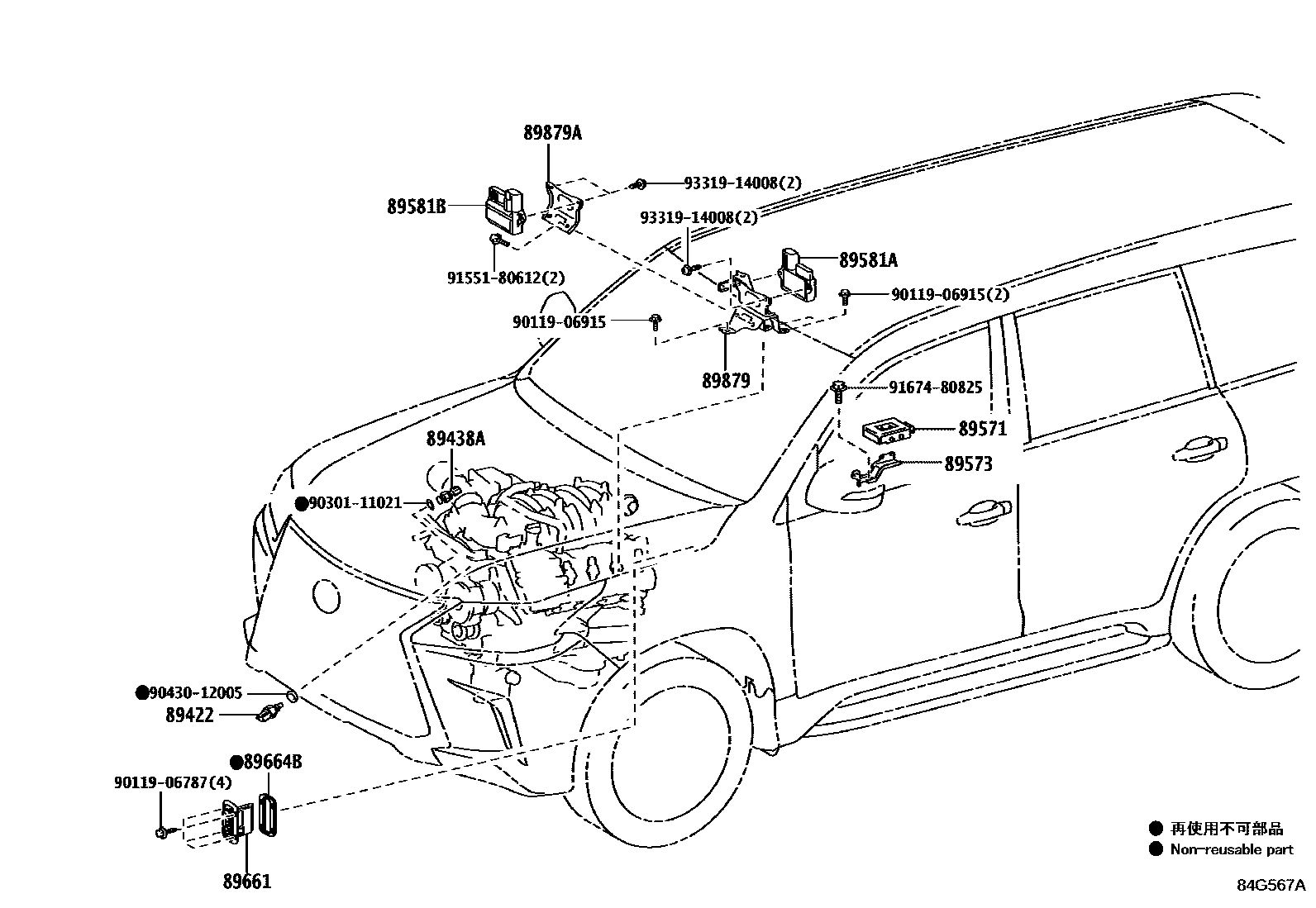

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iURJ201201509

89438ASWITCH, POWER STEERING OIL PRESSURE

main89448-34020iURJ201201509

89571COMPUTER, FUEL PUMP CONTROL

main89571-60060iURJ201201509

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-60072iURJ201201509

89581ADRIVER, AIR INJECTION CONTROL

main89581-60010iURJ201201509

89581BDRIVER, AIR INJECTION CONTROL

main89581-34080iURJ201201509

89661COMPUTER, ENGINE CONTROL

main89661-60Y60iURJ201201509-201808

main89666-60J50iURJ201201808-202006

main89666-60R50iURJ201202006

89664BSEAL, ENGINE CONTROL COMPUTER

main89664-34010iURJ201201509

89879BRACKET, INJECTOR DRIVER

main89589-34020iURJ201201509

89879ABRACKET, INJECTOR DRIVER

main89589-34030iURJ201201509

9011906787

main90119-06787

9011906915

main90119-06915

9030111021

main90301-11021

9043012005

main90430-12005

9155180612

main91551-80612

9167480825

main91674-80825

9331914008

main93319-14008

17 parts on this diagram · 1 diagram in section
