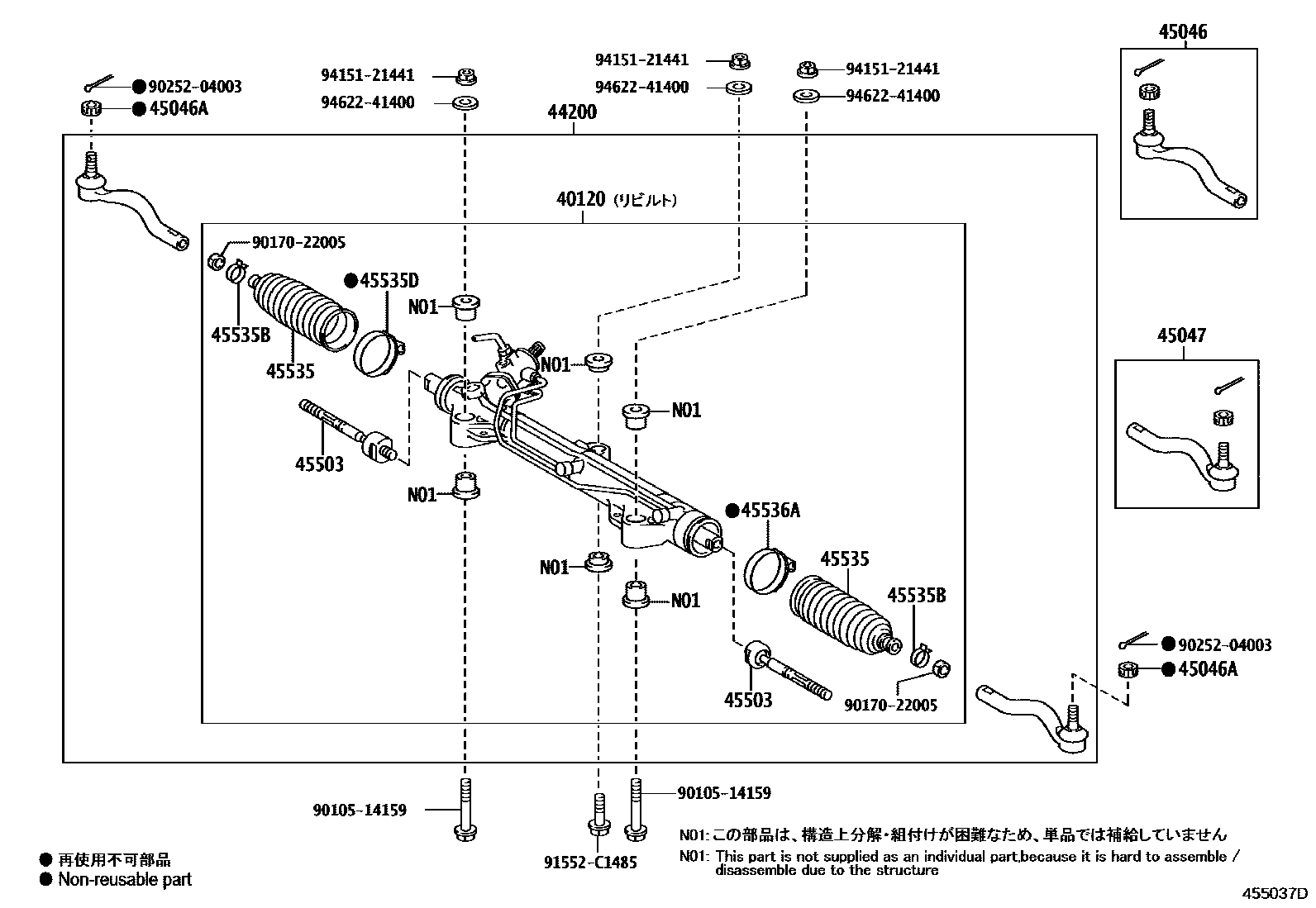

FRONT STEERING GEAR & LINK

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-60130iURJ201201509

44200LINK ASSY, POWER STEERING

main44200-60130iURJ201201509

45046END SUB-ASSY, TIE ROD, RH

main45046-69236iURJ201201509

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16009×2iURJ201201509

45047END SUB-ASSY, TIE ROD, LH

main45047-69146iURJ201201509

45503END SUB-ASSY, STEERING RACK

main45503-60030×2iURJ201201509

45535BOOT, STEERING RACK, NO.1

main45535-60021×2iURJ201201509

45535BCLIP(FOR STEERING RACK BOOT)

main96134-52600×2iURJ201201509

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-76001iURJ201201509

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-76001iURJ201201509

9010514159

main90105-14159

9017022005

main90170-22005

9025204003

main90252-04003

91552C1485

main91552-C1485

9415121441

main94151-21441

9462241400

main94622-41400

16 parts on this diagram · 1 diagram in section
