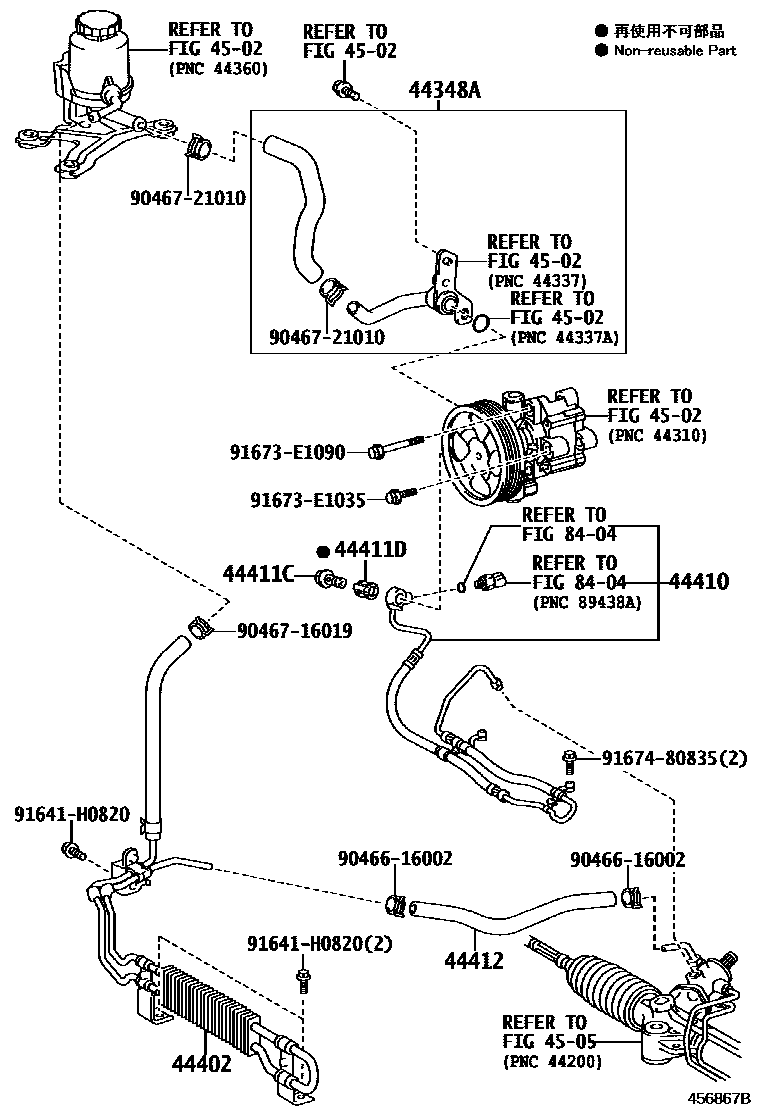

POWER STEERING TUBE

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60480iURJ201201509

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-60031iURJ201201509

44410TUBE ASSY, PRESSURE FEED

main44410-60A10iURJ201201509

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iURJ201201509

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iURJ201201509

44412HOSE, RETURN

main44412-60330iURJ201201509

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9046616002

main90466-16002

9046716019

main90467-16019

9046721010

main90467-21010

91641H0820

main91641-H0820

91673E1035

main91673-E1035

91673E1090

main91673-E1090

9167480835

main91674-80835

16 parts on this diagram · 1 diagram in section
