Toyota 791150 — RADIATOR GRILLE

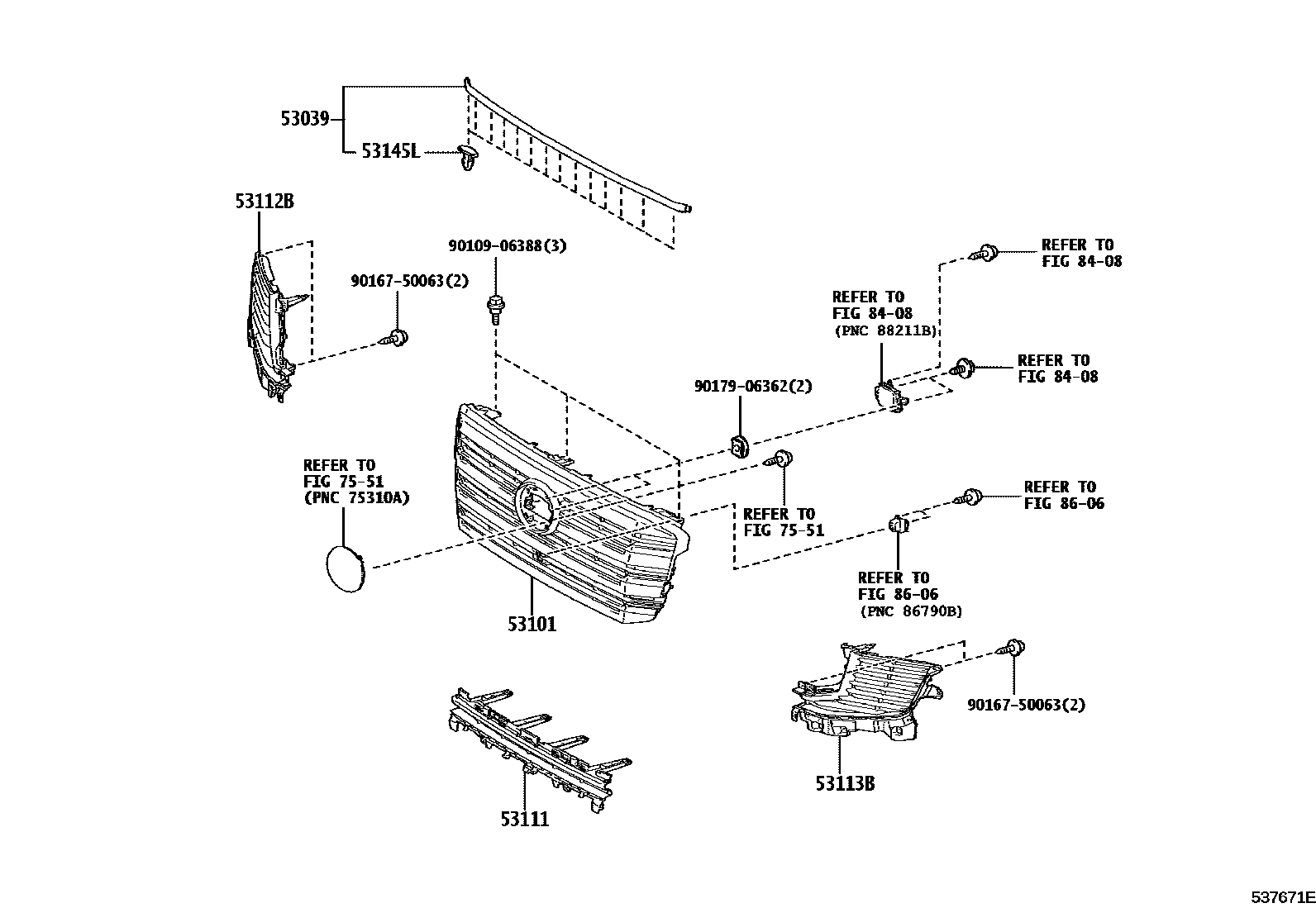

Parts diagram
53039SEAL, RADIATOR, UPPER
53039-60060
53101GRILLE SUB-ASSY, RADIATOR
53101-WY070
53101-WY071
53101-WY072
53101-60L40
53101-60L41
53101-60L42
53111GRILLE, RADIATOR
53111-60B60
53111-60C70
53112BGRILLE, RADIATOR SIDE, RH
53113BGRILLE, RADIATOR SIDE, LH
53145LCLIP, RADIATOR GRILLE
7551EMBLEM & NAME PLATE
→ Go to FIG 75-51
8408CRUISE CONTROL (AUTO DRIVE)
→ Go to FIG 84-08
8606CAMERA & REAR MONITOR DISPLAY
→ Go to FIG 86-06
9010906388
90109-06388
9016750063
90167-50063
9017906362
90179-06362

12 parts on this diagram · 3 diagrams in section

RADIATOR GRILLE for Toyota 791150

This section contains 17 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota 791150. Key components include: FRONT BUMPER & BUMPER STAY, SEAL, RADIATOR, UPPER, GRILLE SUB-ASSY, RADIATOR, GRILLE, RADIATOR, GRILLE, RADIATOR SIDE, RH.
