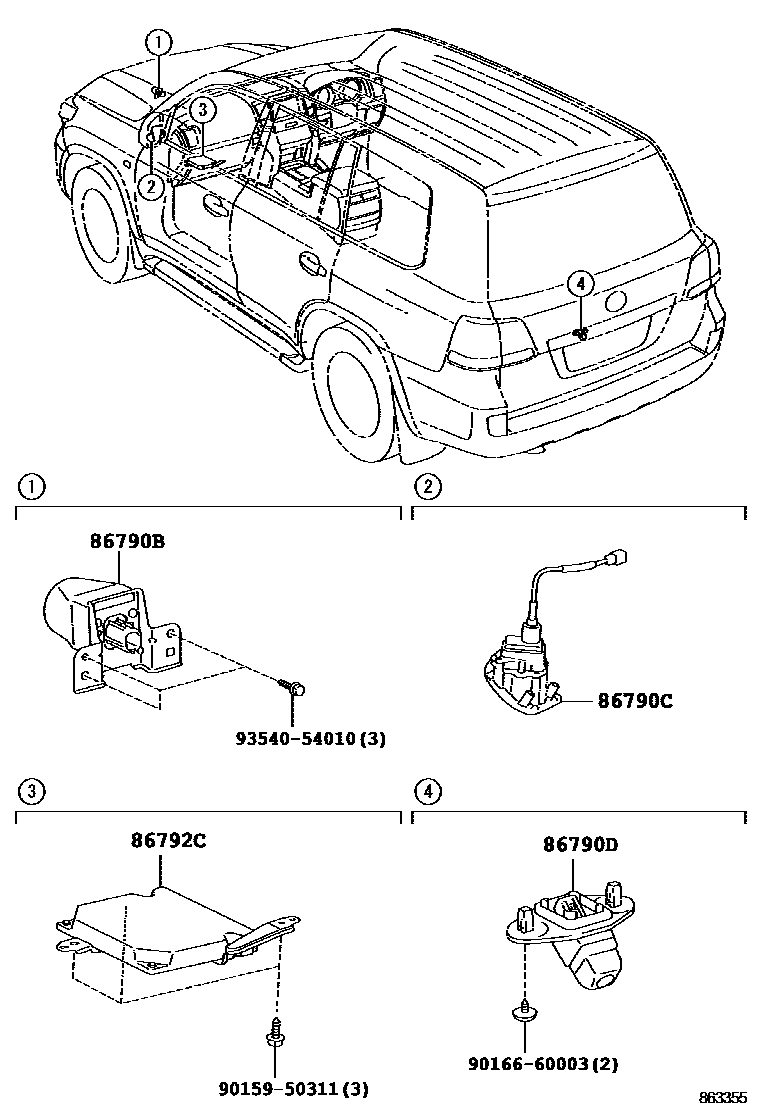

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1 0005 1�������������

86790BCAMERA ASSY, TELEVISION, FR

main86790-60060iURJ202..ZX200905-201109

main86790-60061iURJ202..AX; URJ202..ZX201110-201201

main86790-60200iURJ202..AX,ZX201201-201508

main867B0-60010iURJ202..AX,ZX201508-201606

main867B0-60011iURJ202..AX,ZX201606-201707

main867B0-60012iURJ202..AX,ZX201707-202104

86790CCAMERA ASSY, TELEVISION, SIDE

main86790-60100iURJ202..ZX200905-201201

main86790-60150iURJ202..AX,ZX201201-201508

main86790-60160iURJ202..AX,ZX201201-201508

86790DCAMERA ASSY, TELEVISION, RR

main86790-60080iURJ202..ZX200905-200912

main86790-60081iURJ202..AX; URJ202..ZX201001-201201

main86790-60082iURJ202..AX,ZX201303-201508

main86790-60260iURJ202..AX,ZX201508-202104

main867B0-60040iURJ202..AX,ZX201508-201606

main867B0-60041iURJ202..AX,ZX201606-201707

main867B0-60042iURJ202..AX,ZX201707-202104

86792CCOMPUTER, PARKING ASSIST

main86792-60290iURJ202..AX; URJ202..ZX200905-201201

main86792-60080iURJ202..AX,ZX201508-202104

main86792-60110iUZJ200200709-200905

main86792-60480iURJ202..AX,ZX201201-201508

9015950311

main90159-50311

9016660003

main90166-60003

9354054010

main93540-54010

7 parts on this diagram · 5 diagrams in section
