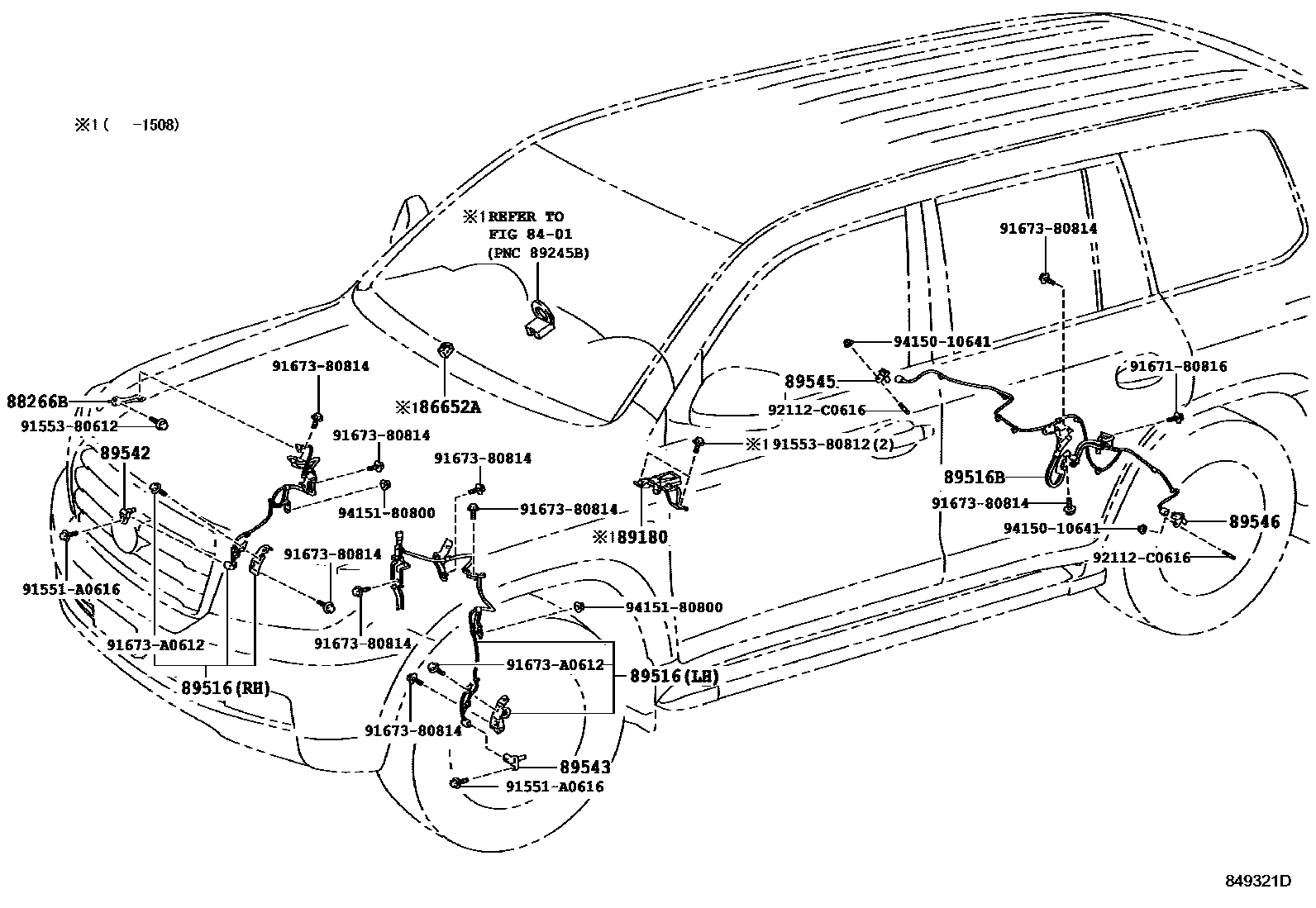

ABS & VSC

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iUZJ200200709-200905

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-60580iUZJ200200709-200905

89180SENSOR ASSY, YAWRATE

main89180-60100iURJ202201201-201508

89516WIRE, SKID CONTROL SENSOR

main89516-60110iUZJ200200709-200905

main89516-60120iURJ202..AX,GX201201-201508

main89516-60140iURJ202..ZX201508-202104

main89516-60150iURJ202..ZX201201-201508

89516BWIRE, SKID CONTROL SENSOR

main89516-60130iUZJ200200709-200905

89542SENSOR, SPEED, FRONT RH

main89542-60050iUZJ200200709-200905

89543SENSOR, SPEED, FRONT LH

main89543-60050iUZJ200200709-200905

89545SENSOR, SPEED, REAR RH

main89542-60050iUZJ200200709-200905

89546SENSOR, SPEED, REAR LH

main89543-60050iUZJ200200709-200905

91551A0616

main91551-A0616

9155380612

main91553-80612

9155380812

main91553-80812

9167180816

main91671-80816

9167380814

main91673-80814

91673A0612

main91673-A0612

92112C0616

main92112-C0616

9415010641

main94150-10641

9415180800

main94151-80800

19 parts on this diagram · 2 diagrams in section
