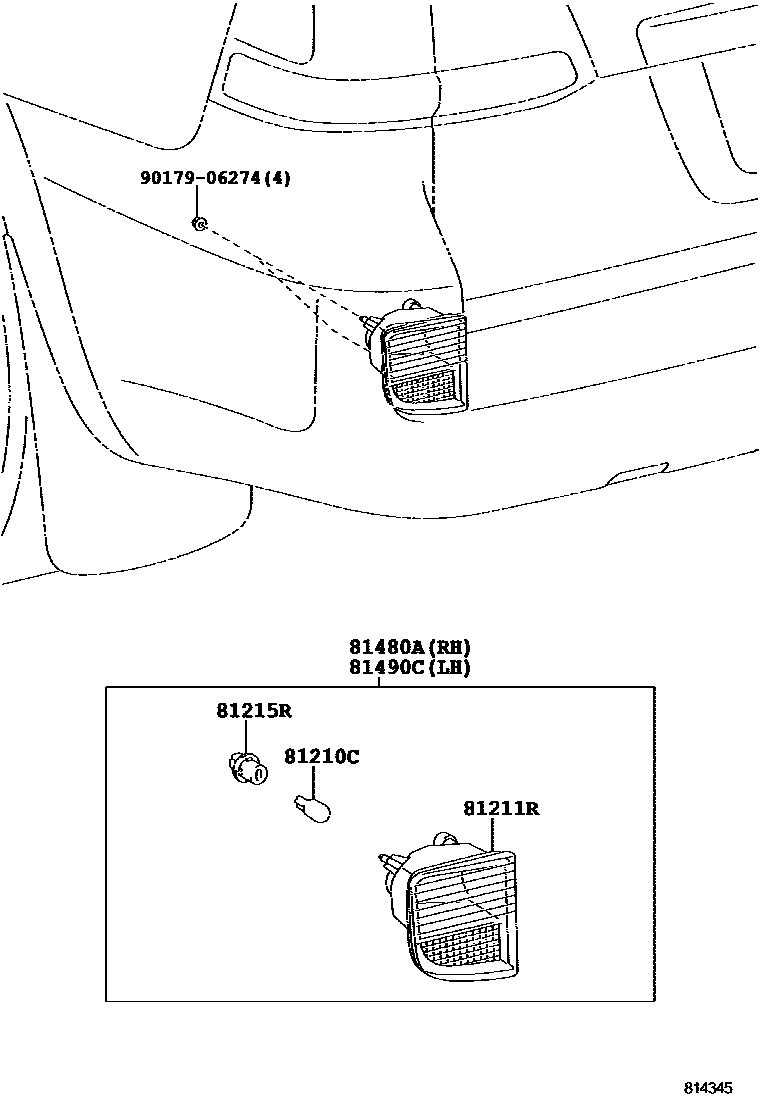

REAR FOG LAMP

0001 1 0002 1

81210CBULB, REAR FOG LAMP

main90981-13043×2iURJ202201201-201508

81211RLENS, REAR FOG LAMP

main81456-60030iURJ202201201-201403

main81456-60031iURJ202201403-201508

main81456-60070iURJ202201508-202104

main81457-60020iURJ202200709-201201

main81457-60021iURJ202201403-201508

main81457-60070iURJ202201508-202104

81215RSOCKET & WIRE, REAR FOG LAMP

main90075-99080×2iUZJ200200709-200905

81480ALAMP ASSY, REAR FOG, RH

main81480-60020iUZJ200200709-200905

main81480-60021iURJ202201403-201508

main81480-60070iURJ202201508-202104

81490CLAMP ASSY, REAR FOG, LH

main81490-60030iUZJ200200709-200905

main81490-60031iURJ202201403-201508

main81490-60070iURJ202201508-202104

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
