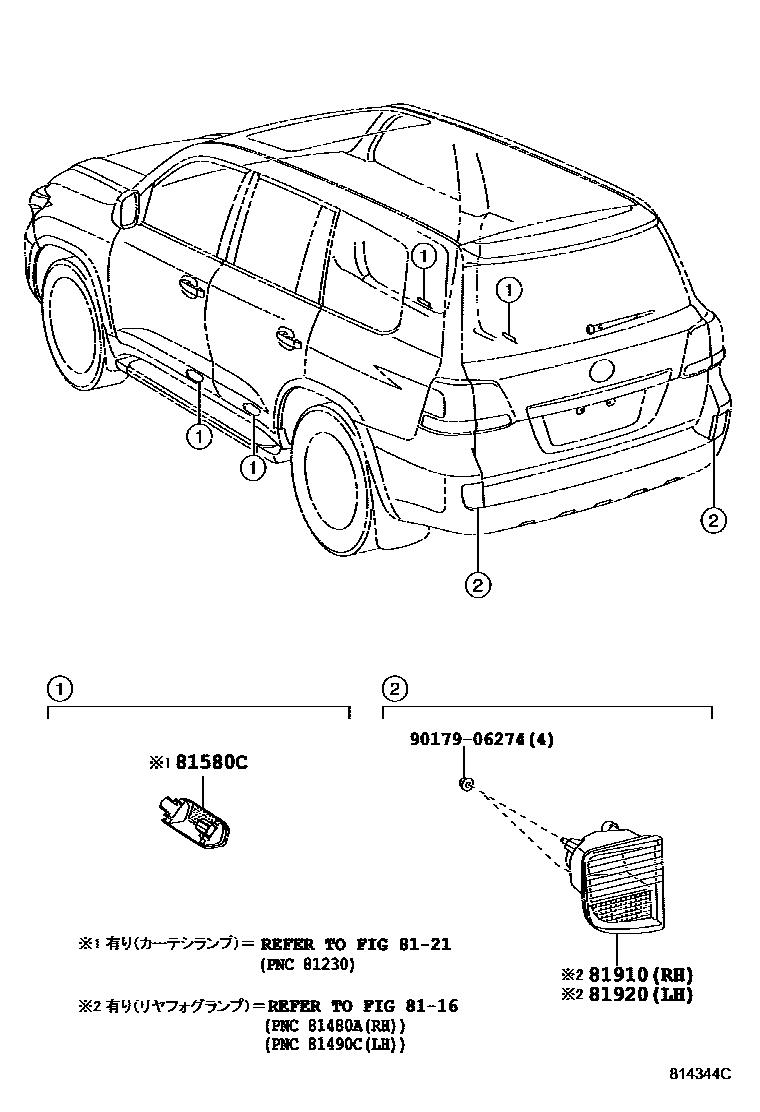

REFLEX REFLECTOR

0001 1 0002 1

8116REAR FOG LAMP

→ Go to FIG 81-16

8121INTERIOR LAMP

→ Go to FIG 81-21

81580CREFLECTOR ASSY, REFLEX

main81911-28020×4iURJ202..GX201008-201201

81910REFLECTOR ASSY, REFLEX, RH

main81480-60010iUZJ200200709-200905

main81480-60030iURJ202200905-201201

main81480-60031iURJ202201403-201508

main81480-60080iURJ202201508-202104

81920REFLECTOR ASSY, REFLEX, LH

main81490-60020iUZJ200200709-200905

main81490-60040iURJ202200905-201201

main81490-60041iURJ202201403-201508

main81490-60080iURJ202201508-202104

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
