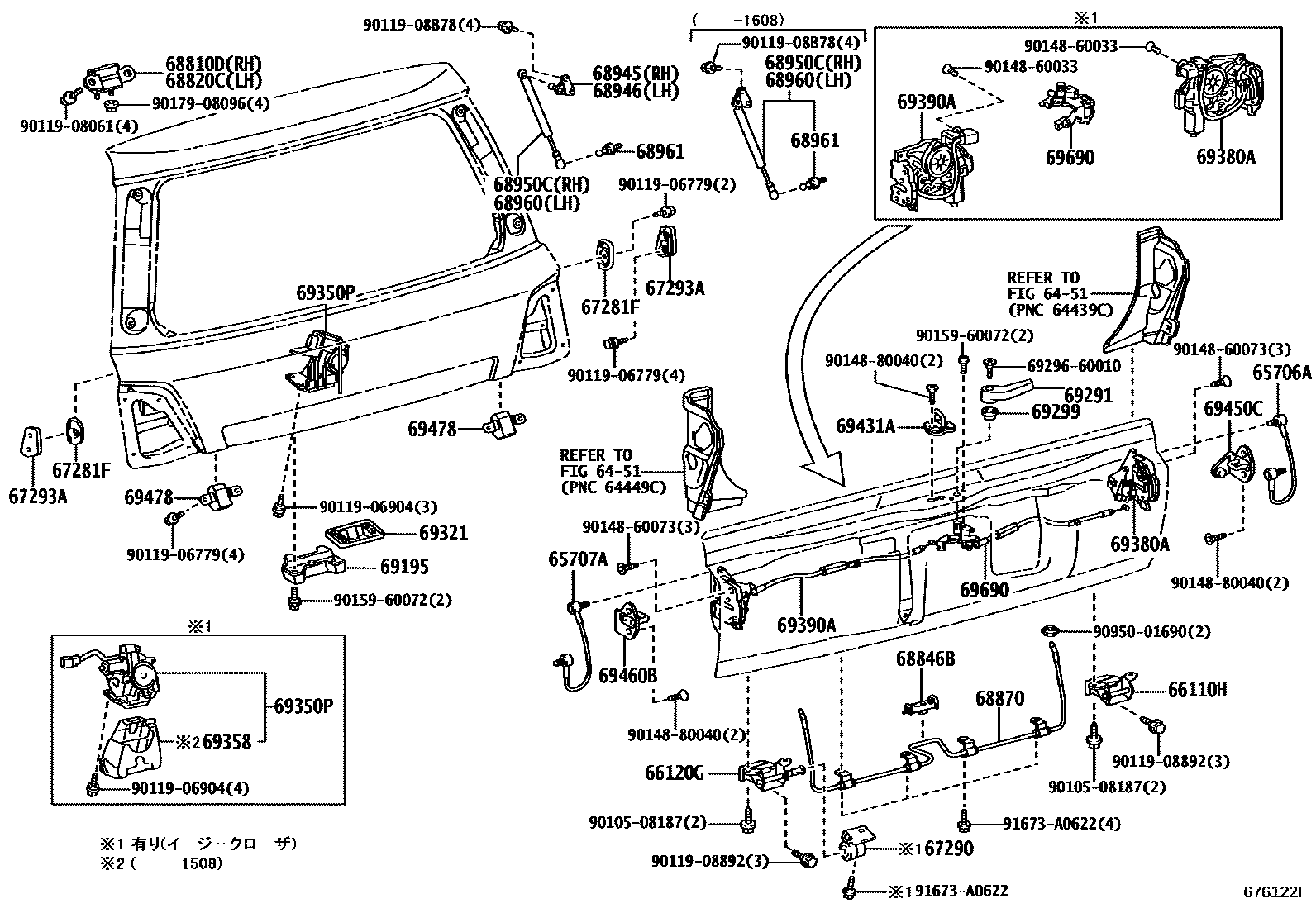

BACK DOOR LOCK & HINGE
6451INSIDE TRIM BOARD
65706ASTAY SUB-ASSY, TAIL GATE, RH
65707ASTAY SUB-ASSY, TAIL GATE, LH
66110HHINGE ASSY, TAIL GATE, RH
66120GHINGE ASSY, TAIL GATE, LH
67281FSTOPPER, BACK DOOR, LOWER
67290DAMPER ASSY, BACK DOOR
67293ACUSHION, BACK DOOR STOPPER
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68846BGUIDE, BACK DOOR TORSION BAR
68870BAR ASSY, BACK DOOR LOWER TORSION
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69291HANDLE ASSY, BACK DOOR INSIDE
69299GROMMET, BACK DOOR HANDLE
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69358PROTECTOR, BACK DOOR LOCK
69380ALOCK ASSY, TAIL GATE, LOWER RH
69390ALOCK ASSY, TAIL GATE, LOWER LH
69431ASTRIKER, REAR SWING GATE LOCK
69450CSTRIKER ASSY, BACK DOOR LOCK, RH
69460BSTRIKER ASSY, BACK DOOR LOCK, LH
69478CUSHION, BACK DOOR LOWER STOPPER
69690CONTROL ASSY, BACK DOOR REMOTE
6929660010SCREW, DOOR INSIDE HANDLE
main69296-60010
9010508187
main90105-08187
9011906779
main90119-06779
9011906904
main90119-06904
9011908061
main90119-08061
9011908892
main90119-08892
9011908B78
main90119-08B78
9014860033
main90148-60033
9014860073
main90148-60073
9014880040
main90148-80040
9015960072
main90159-60072
9017908096
main90179-08096
9095001690
main90950-01690
91673A0622
main91673-A0622
44 parts on this diagram · 2 diagrams in section
