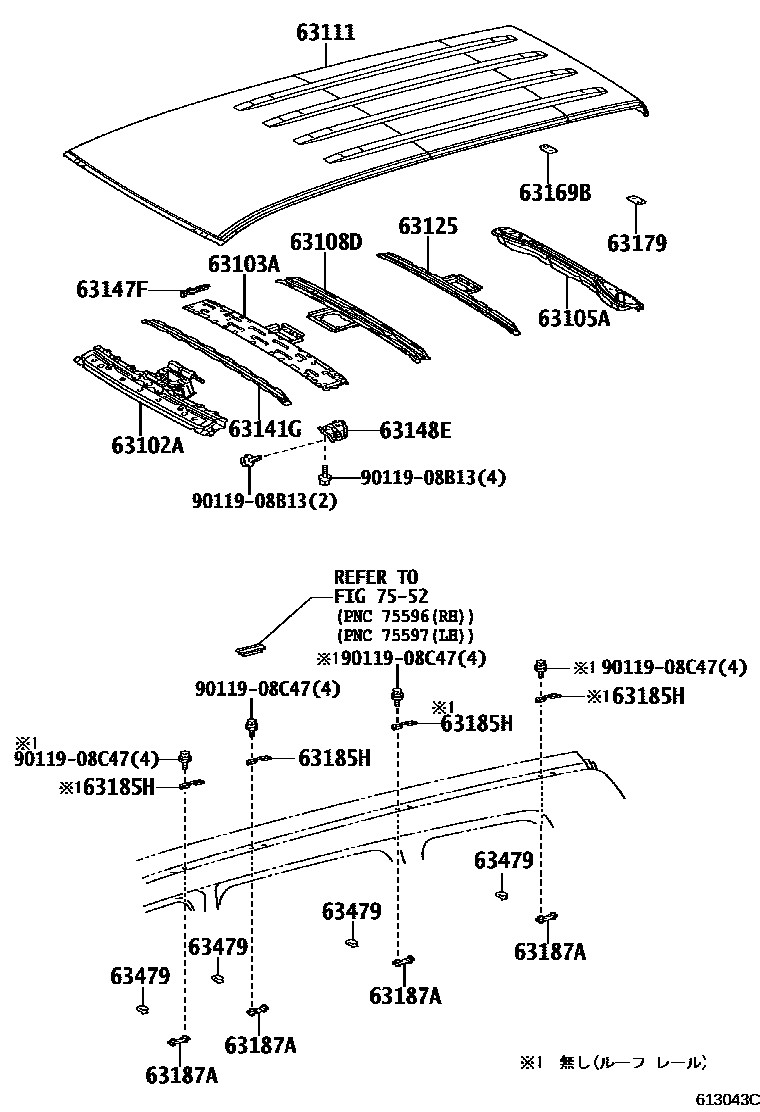

ROOF PANEL & BACK PANEL

0001 1��� ���� 0002 1�������(��� ���) 0003 1��� ��� 0004 1��� �-�

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60110iURJ202..AX; URJ202..GX; URJ202..ZX201508-202104

main63102-60120iURJ202..AX,GX201508-202104

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-60050iURJ202..AX,GX201508-202104

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60280iURJ202201201-201508

63108DSUPPORT SUB-ASSY, ROOF PANEL

main63108-60040iURJ202..AX,GX201201-201508

63111PANEL, ROOF

main63111-60560iURJ202..AX,GX201201-201508

main63111-60570supersedes 63111-60560iUZJ200200709-200905

main63111-60580iURJ202..AX200905-201201

main63111-60590iURJ202..AX; URJ202..ZX200905-201201

main63111-60800iURJ202..AX; URJ202..ZX201508-202104

main63111-60810iURJ202..AX201508-202104

63125REINFORCEMENT, ROOF PANEL, NO.2

main63107-60040iURJ202201201-201508

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60100iUZJ200200709-200905

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-60050iURJ202..AX,GX200709-201201

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-60050iURJ202..AX,GX201508-202104

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-60020iUZJ200200709-200905

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-60010iURJ202201508-202104

63185HBRACKET, ROOF RACK

main63185-42020×2iURJ202200709-201201

63187ABRACKET, ROOF RACK, REAR

main63187-60040×8iUZJ200200709-200905

63479RETAINER, ROOF INNER RACK

main63479-60020×8iUZJ200200709-200905

7552MOULDING

→ Go to FIG 75-52

9011908B13

main90119-08B13

9011908C47

main90119-08C47

17 parts on this diagram · 4 diagrams in section
