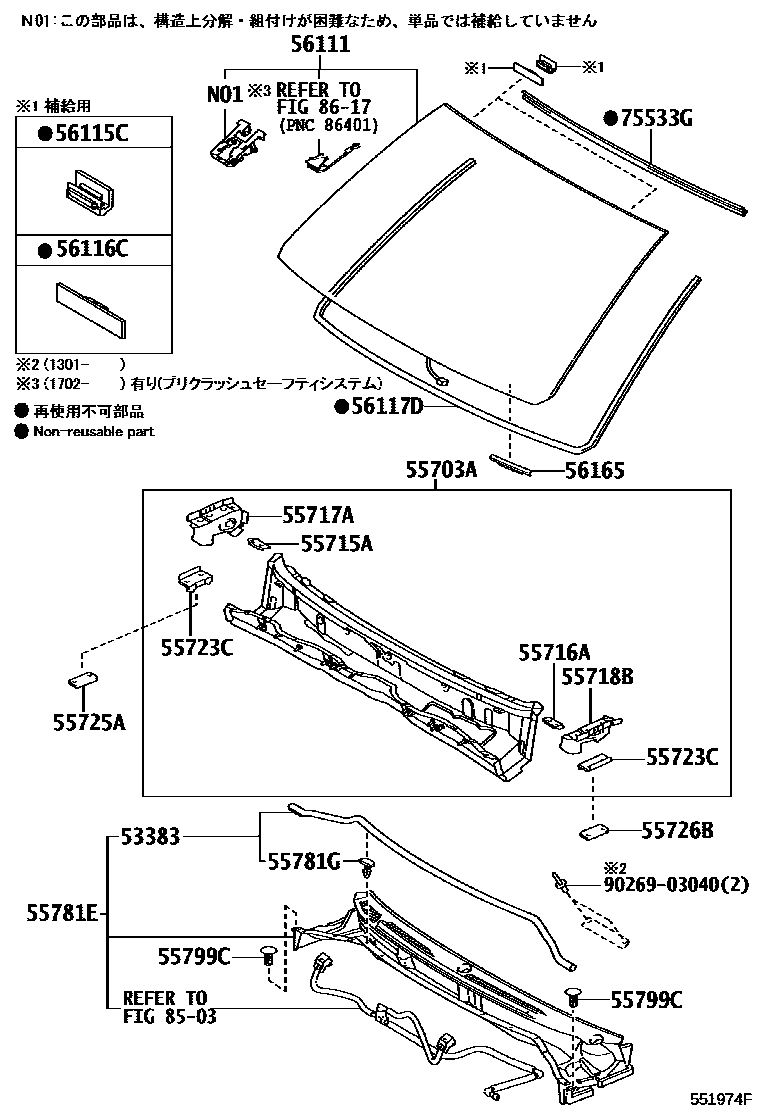

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60070iUZJ200200709-200905

main53383-60120iURJ202201808-202104

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-60330iURJ202201301-201508

main55703-60340iURJ202200709-201201

main55703-60460iURJ202201508-202104

55715ABRACE, COWL TOP TO APRON, RH

main55715-60040iUZJ200200709-200905

55716ABRACE, COWL TOP TO APRON, LH

main55716-60040iURJ202200709-201201

55717APANEL, COWL TOP SIDE, INNER RH

main55717-60050iUZJ200200709-200905

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-60060iUZJ200200709-200905

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-60020×2iURJ202200709-201201

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-60040iUZJ200200709-200905

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-60040iURJ202200709-201201

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60080supersedes 55708-60070iURJ202200709-201008

main55708-60081supersedes 55708-60071iURJ202201009-201201

main55708-60350supersedes 55708-60340iURJ202201808-202104

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×10iURJ202201201-201508

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-60020×2iUZJ200200709-200905

56111GLASS, WINDSHIELD

main56101-60915iURJ202..AX,GX200709-201201

main56101-60933iURJ202..GX201201-201301

main56101-60941iURJ202..GX201301-201308

main56101-60963iURJ202..AX,ZX201508-201702

main56101-6A923iURJ202..GX201708-201908

main56101-6A966iURJ202..GX201908-202104

main56101-60901iURJ202..AX; URJ202..ZX200905-201201

main56101-60902supersedes 56101-60915iUZJ200200709-200905

main56101-60916supersedes 56101-60915iUZJ200200709-200905

main56101-60923supersedes 56101-60936iURJ202..AX,ZX201201-201301

main56101-60940supersedes 56101-60942iURJ202..AX,ZX201301-201308

main56101-60952supersedes 56101-60955iURJ202..AX,ZX201308-201508

main56101-60954supersedes 56101-60955iURJ202..AX,ZX201308-201508

main56101-60956supersedes 56101-60953iURJ202..GX201308-201507

main56101-60960supersedes 56101-6A915iURJ202..AX,ZX201508-201708

main56101-60972iURJ202..AX,ZX201508-201701

main56101-60982iURJ202..AX,ZX201508-201701

main56101-60988iURJ202..GX201508-201608

main56101-6A901iURJ202..GX201508-201701

main56101-6A902iURJ202..GX201507-201508

main56101-6A903iURJ202..AX,ZX201701-201702

main56101-6A907iURJ202..AX,ZX201701-201702

main56101-6A913iURJ202..GX201701-201702

main56101-6A917supersedes 56101-6A921iURJ202..AX,ZX201708-201908

main56101-6A921supersedes 56101-6A915iURJ202..AX,ZX201703-201708

main56101-6A954supersedes 56101-6A960iURJ202..AX,ZX201908-202104

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100×2iURJ202201508-202104

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iURJ202201508-202104

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-60100iURJ202; URJ202..AX,ZX; URJ202..GX201508-201708

56165COVER, FRONT WINDOW INNER MOULDING, LH

main56165-60010iURJ202201301-201508

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-60050iUZJ200200709-200905

main75531-60070iURJ202201311-201412

main75531-60080iURJ202201501-201508

8503WINDSHIELD WASHER

→ Go to FIG 85-03

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9026903040

main90269-03040

21 parts on this diagram · 1 diagram in section
