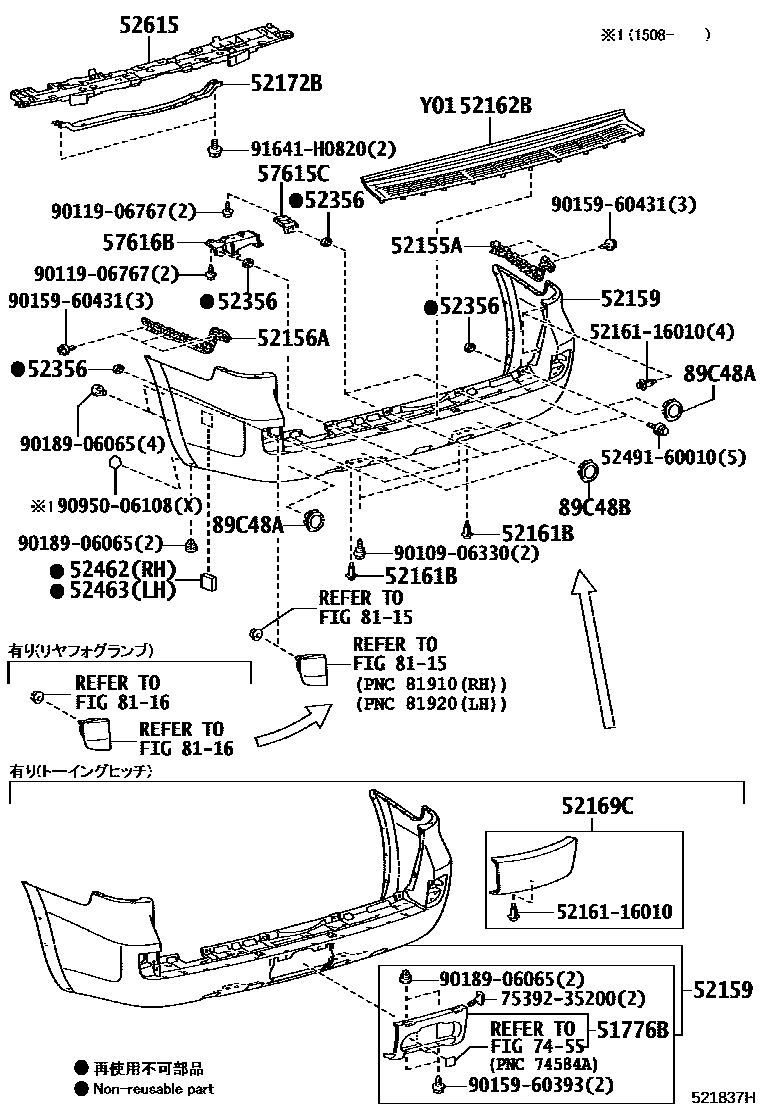

REAR BUMPER & BUMPER STAY

51776BCOVER, REAR STEP, NO.2

main51776-60050iURJ202201708-202104

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-60070iUZJ200200709-200905

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-60070iUZJ200200709-200905

52159COVER, REAR BUMPER

main52159-60280-A1iURJ202..GX201201-201508

WHITE PEARL CS.,070

main52159-60280-B1iURJ202..GX201008-201201

SILVER ME.,1F7

main52159-60280-B2iURJ202..GX201008-201201

GRAY ME.,1G3

main52159-60280-C0iURJ202..GX201201-201508

BLACK,202

main52159-60280-C2iURJ202..GX201201-201508

ATTITUDE BLACK MC.,218

main52159-60280-D0iURJ202..GX201201-201508

DK. RED M.M.,3Q3

main52159-60280-E0iURJ202..GX201201-201508

BEIGE M.M.,4R3

main52159-60280-F0iURJ202..GX201008-201201

GOLD M.M.,5A5

main52159-60280-G0iURJ202..GX201008-201201

GREEN M.M.,6V2

main52159-60300-A1iURJ202,UZJ200..AX,ZX200709-201201

WHITE PEARL CS.,070

main52159-60300-B1iURJ202,UZJ200..AX,ZX200709-201201

SILVER ME.,1F7

main52159-60300-B2iURJ202,UZJ200..AX,ZX200709-201201

GRAY ME.,1G3

main52159-60300-C0iURJ202,UZJ200..AX,ZX200709-201201

BLACK,202

main52159-60300-D0iURJ202,UZJ200..AX,ZX200709-201201

DK. RED M.M.,3Q3

main52159-60300-F0iURJ202,UZJ200..AX,ZX200709-201201

GOLD M.M.,5A5

main52159-60300-G0iURJ202,UZJ200..AX,ZX200709-201201

GREEN M.M.,6V2

main52159-60301-A1iURJ202..AX,ZX201201-201508

WHITE PEARL CS.,070

main52159-60301-B1iURJ202..AX,ZX201201-201508

SILVER ME.,1F7

main52159-60301-B2iURJ202..AX,ZX201201-201508

GRAY ME.,1G3

main52159-60301-C0iURJ202..AX,ZX201201-201508

BLACK,202

main52159-60301-C2iURJ202..AX,ZX201201-201508

ATTITUDE BLACK MC.,218

main52159-60301-D0iURJ202..AX,ZX201201-201508

DK. RED M.M.,3Q3

main52159-60301-E0iURJ202..AX,ZX201201-201508

BEIGE M.M.,4R3

main52159-60740-A1iURJ202..GX201508-202104

WHITE PEARL CS.,070

main52159-60740-B0iURJ202..GX201508-202104

SILVER ME.,1F7

main52159-60740-B1iURJ202..GX201508-202104

GRAY ME.,1G3

main52159-60740-C0iURJ202..GX201508-202104

BLACK,202

main52159-60740-C1iURJ202..GX201508-202104

ATTITUDE BLACK MC.,218

main52159-60740-C2iURJ202..GX201908-202006

SPARKLING BLACK PEARL CS.,220

main52159-60740-D0iURJ202..GX201508-202104

DK. RED M.M.,3Q3

main52159-60740-E0iURJ202..GX201508-201912

BEIGE M.M.,4R3

main52159-60740-E1iURJ202..GX201508-201908

COPPER BROWN MC.,4S6

main52159-60740-J0iURJ202..GX201508-201912

DARK BLUE MC.,8P8

main52159-60760-A1iURJ202..AX,ZX201508-202104

WHITE PEARL CS.,070

main52159-60760-B0iURJ202..AX,ZX201508-202104

SILVER ME.,1F7

main52159-60760-B1iURJ202..AX,ZX201508-202104

GRAY ME.,1G3

main52159-60760-C0iURJ202..AX,ZX201508-202104

BLACK,202

main52159-60760-C1iURJ202..AX,ZX201508-202104

ATTITUDE BLACK MC.,218

main52159-60760-C2iURJ202..AX,ZX201908-202006

SPARKLING BLACK PEARL CS.,220

main52159-60760-D0iURJ202..AX,ZX201508-202104

DK. RED M.M.,3Q3

main52159-60760-E0iURJ202..AX,ZX201508-201912

BEIGE M.M.,4R3

main52159-60760-E1iURJ202..AX,ZX201508-201908

COPPER BROWN MC.,4S6

main52159-60760-J0iURJ202..AX,ZX201508-201912

DARK BLUE MC.,8P8

main52159-6A959-A2iURJ202..AX,ZX201708-202104

main52159-6A959-B2iURJ202..AX,ZX201708-202104

main52159-6A959-B3iURJ202..AX,ZX201708-202104

main52159-6A959-C0iURJ202..AX,ZX201708-202104

main52159-6A959-C2iURJ202..AX,ZX201708-202104

main52159-6A959-D0iURJ202..AX,ZX201708-202104

main52159-6A959-E1iURJ202..AX,ZX201708-201908

main52159-6A959-E2iURJ202..AX,ZX201708-201912

main52159-6A959-J1iURJ202..AX,ZX201708-201912

main52159-6A960-A1iURJ202..GX201708-202104

main52159-6A960-B0iURJ202..GX201708-202104

main52159-6A960-B1iURJ202..GX201708-202104

main52159-6A960-C0iURJ202..GX201708-202104

main52159-6A960-C1iURJ202..GX201708-202104

main52159-6A960-D0iURJ202..GX201708-202104

main52159-6A960-E0iURJ202..GX201708-201912

main52159-6A960-E1iURJ202..GX201708-201908

main52159-6A960-J0iURJ202..GX201708-201912

52161BPIECE, REAR BUMPER

main52161-16010×2iURJ202200709-201201

52162BPLATE, REAR BUMPER, NO.1

main52162-60040iUZJ200200709-200905

52169CCOVER, REAR BUMPER, LOWER

main52169-60190-A0iURJ202..AX,ZX; URJ202..GX201708-202104

main52169-60190-A1iURJ202201708-202104

main52169-60190-B0iURJ202; URJ202..AX,ZX; URJ202..GX201708-202104

main52169-60190-B1iURJ202; URJ202..AX,ZX; URJ202..GX201708-202104

main52169-60190-C0iURJ202; URJ202..AX,ZX; URJ202..GX201708-202104

main52169-60190-C1iURJ202; URJ202..AX,ZX; URJ202..GX201708-202104

main52169-60190-C2iURJ202201908-202006

main52169-60190-D0iURJ202201708-202104

main52169-60190-E0iURJ202; URJ202..AX,ZX201708-202006

main52169-60190-E1iURJ202201708-201908

main52169-60190-J0iURJ202201708-201912

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-60050iUZJ200200709-200905

52356CUSHION, REAR BUMPER STEP

main52356-60050×5iUZJ200200709-200905

52462PAD, REAR BUMPER, RH

main52462-60040iUZJ200200709-200905

main52462-60100iURJ202201508-202104

52463PAD, REAR BUMPER, LH

main52462-60040iUZJ200200709-200905

main52462-60100iURJ202201508-202104

52615ABSORBER, REAR BUMPER ENERGY

main52615-60030iUZJ200200709-200905

main52615-60080iURJ202201201-201501

main52615-60081iURJ202201502-201508

57615CBRACKET, REAR BUMPER ARM

main58357-60020×2iUZJ200200709-200905

57616BBRACKET, REAR BUMPER ARM

main58356-60010iURJ202,UZJ200200709-201201

main58356-60030iURJ202201508-202104

7455CAUTION PLATE

→ Go to FIG 74-55

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8116REAR FOG LAMP

→ Go to FIG 81-16

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-33040-A2×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-33040-B4×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-33040-B5×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-33040-C0×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-33040-D2×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-33040-F1×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-33040-G2×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-33060-A2×2iURJ202..AX,ZX201201-201508

WHITE PEARL CS.,070

main89348-33060-B4×2iURJ202..AX,ZX201201-201508

SILVER ME.,1F7

main89348-33060-B5×2iURJ202..AX,ZX201201-201508

GRAY ME.,1G3

main89348-33060-C0×2iURJ202..AX,ZX201201-201508

BLACK,202

main89348-33060-C6×2iURJ202..AX,ZX201201-201508

ATTITUDE BLACK MC.,218

main89348-33060-D2×2iURJ202..AX,ZX201201-201508

DK. RED M.M.,3Q3

main89348-33060-E3×2iURJ202..AX,ZX201201-201508

BEIGE M.M.,4R3

main89348-33060-G2×2iURJ202..AX; URJ202..ZX201201-201508

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-28090-A1×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-28090-B0×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-28090-B3×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-28090-C0×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-28090-D0×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-28090-F1×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-28090-G0×2iURJ202,UZJ200..AX; URJ202,UZJ200..AX,ZX200709-201201

main89348-71010-A1×2iURJ202..AX,ZX201201-201508

WHITE PEARL CS.,070

main89348-71010-B5×2iURJ202..AX,ZX201201-201508

SILVER ME.,1F7

main89348-71010-B6×2iURJ202..AX,ZX201201-201508

GRAY ME.,1G3

main89348-71010-C0×2iURJ202..AX,ZX201201-201508

BLACK,202

main89348-71010-C3×2iURJ202..AX,ZX201201-201508

ATTITUDE BLACK MC.,218

main89348-71010-D0×2iURJ202..AX,ZX201201-201508

DK. RED M.M.,3Q3

main89348-71010-E4×2iURJ202..AX,ZX201201-201508

BEIGE M.M.,4R3

main89348-71010-G2×2iURJ202..AX; URJ202..ZX201201-201508

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

5249160010BOLT, BUMPER PAD

main52491-60010

7539235200RETAINER, OUTSIDE MOULDING

main75392-35200

9010906330

main90109-06330

9011906767

main90119-06767

9015960393

main90159-60393

9015960431

main90159-60431

9018906065

main90189-06065

9095006108

main90950-06108

91641H0820

main91641-H0820

29 parts on this diagram · 1 diagram in section
