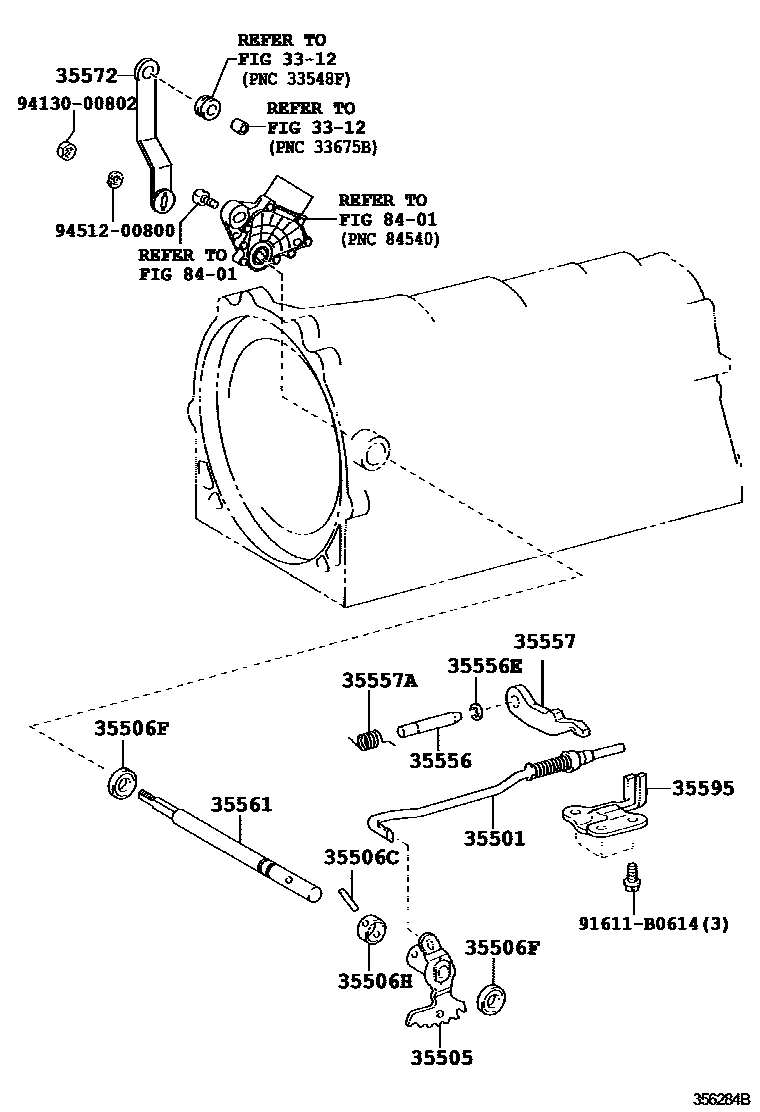

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A750F 0002 1AB60F

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

35501ROD SUB-ASSY, PARKING LOCK

main35501-34020iUZJ200200709-200905

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60060iUZJ200200709-200905

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iUZJ200200709-200905

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iUZJ200200709-200905

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iUZJ200200709-200905

35556SHAFT, PARKING LOCK PAWL

main35556-60020iUZJ200200709-200905

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iUZJ200200709-200905

35557PAWL, PARKING LOCK

main35557-34010iURJ202200905-201201

main35557-60040iUZJ200200709-200905

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iURJ202201508-202104

35561SHAFT, MANUAL VALVE LEVER

main35561-34010iURJ202201201-201508

main35561-50020iUZJ200200709-200905

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-60100iURJ202200905-201201

main35572-60120iUZJ200200709-200905

35595BRACKET, PARKING LOCK PAWL

main35595-34010iURJ202201508-202104

main35595-60030iUZJ200200709-200905

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

17 parts on this diagram · 2 diagrams in section
