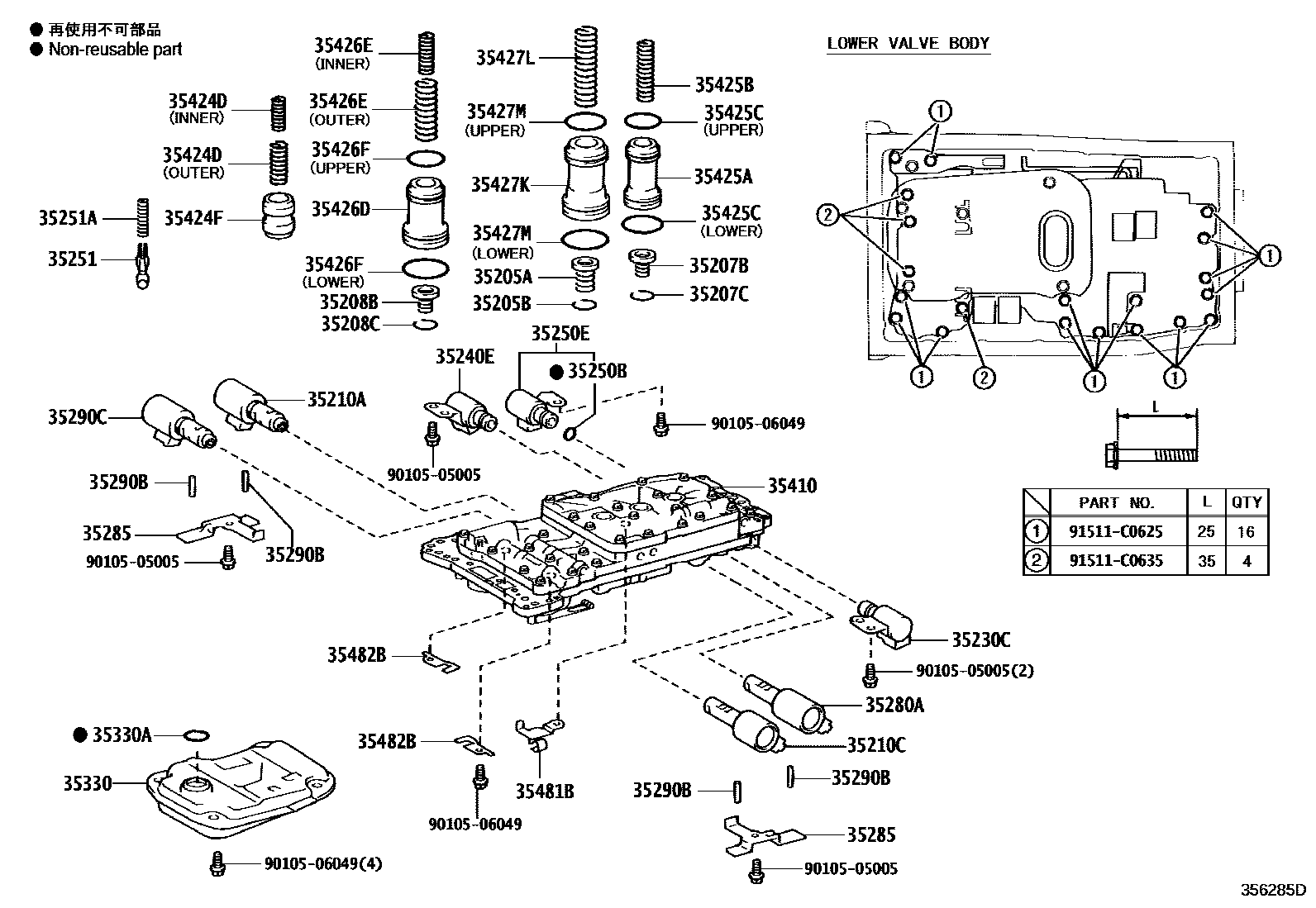

VALVE BODY & OIL STRAINER (ATM)
35205ASPRING SUB-ASSY, B-3 ACCUMULATOR
35205BRING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)
35207BSPRING SUB-ASSY, C-2 ACCUMULATOR
35207CRING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
35208BSPRING SUB-ASSY, C-3 ACCUMULATOR
35208CRING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING)
35210AVALVE, SOLENOID(SL1)
35210CVALVE, SOLENOID(SL2)
35230CVALVE, SOLENOID(SR)
35250BRING, O NO.3(FOR TRANSMISSION SOLENOID)
35250EVALVE, SOLENOID(S2)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)
35290CVALVE, SOLENOID(SLT)
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424FVALVE, C-1 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
35427KPISTON, B-3 ACCUMULATOR
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
35427MRING, O (FOR B-3 ACCUMULATOR PISTON)
35481BCLAMP, VALVE BODY WIRE HARNESS
35482BCLAMP, TEMPERATURE SENSOR
9010505005
main90105-05005
9010506049
main90105-06049
91511C0625
main91511-C0625
91511C0635
main91511-C0635
38 parts on this diagram · 4 diagrams in section
