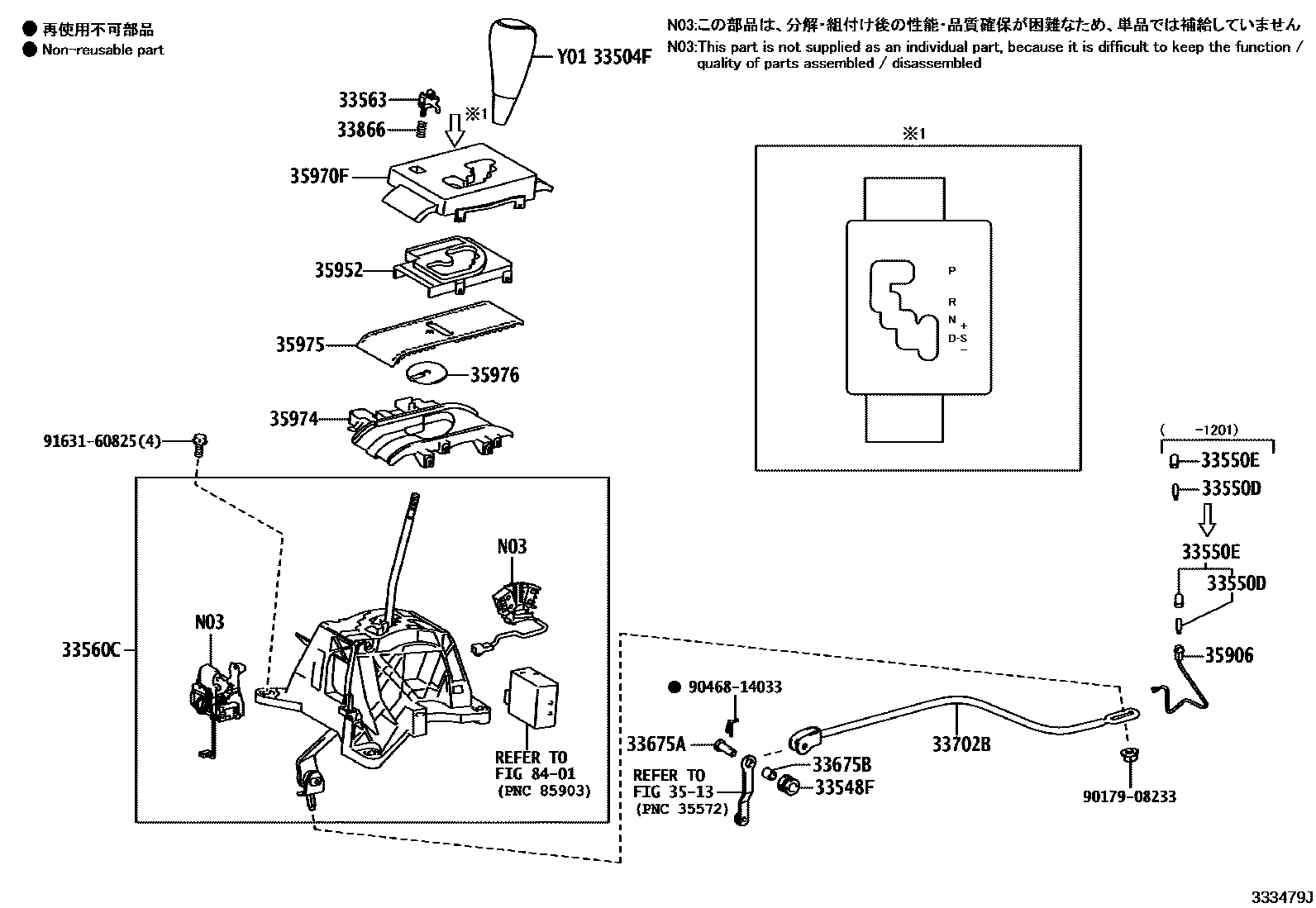

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60220-C0iURJ202..GX201008-201201

BLACK,TRIM1#

main33504-60220-E0iURJ202..GX201008-201201

DK. BROWN,TRIM4#

main33504-60220-E1iURJ202..GX201201-201508

ORCHID BROWN,TRIM0#

main33504-60240-C0supersedes 33504-60230-C0iURJ202..AX; URJ202..ZX200905-201201

main33504-60240-C1iURJ202..AX; URJ202..ZX201201-201302

main33504-60240-E0supersedes 33504-60230-E0iURJ202..ZX200905-201201

DK. BROWN,TRIM4#

main33504-60240-E2iURJ202..AX; URJ202..ZX201201-201302

main33504-60241-C1supersedes 33504-60231-C1iURJ202..AX; URJ202..ZX201302-201508

main33504-60241-E2supersedes 33504-60231-E2iURJ202..AX; URJ202..ZX201302-201508

main33504-60450-C0iURJ202..AX; URJ202..GX; URJ202..ZX201508-202104

BLACK,TRIM1#; BLACK,TRIM1#,2#,42,46; BLACK,TRIM2#,42,46

main33504-60450-E0iURJ202..AX,ZX; URJ202..GX201508-202104

ORCHID BROWN,TRIM0#,4#; ORCHID BROWN,TRIM0#,47

main33504-60241-C2iURJ202..ZX201408-201507

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-60060iUZJ200200709-200905

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-60C00iURJ202201508-201707

main33550-60C01iURJ202201708-202104

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iURJ202,UZJ200200709-201201

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iUZJ200200709-200905

33560CLEVER ASSY, SHIFT, LOWER

main33560-60110iUZJ200200709-200905

main33560-60111iURJ202201212-201508

33563BUTTON, SHIFT LOCK RELEASE

main33563-60130iUZJ200200709-200905

main33563-60210iURJ202201508-202104

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main90240-08054iUZJ200200709-200905

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iUZJ200200709-200905

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-60080iUZJ200200709-200905

main33702-60110iURJ202201201-201508

33866SPRING, SHIFT LOCK RELEASE

main33866-33010iURJ202201508-202104

main33866-42020iUZJ200200709-200905

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-21020iUZJ200200709-200905

main35906-30220iURJ202201508-202104

35952LENS, POSITION INDICATOR

main35952-60020iURJ202201201-201508

main35952-60060iURJ202201508-202104

35970FHOUSING ASSY, POSITION INDICATOR

main35970-60070iURJ202200709-201201

main35970-60280iURJ202201508-202104

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60130iURJ202201201-201508

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-60110iURJ202201201-201508

main35975-60130iURJ202201508-202104

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-60040iURJ202200709-201201

main35976-60060iURJ202201508-202104

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908233

main90179-08233

9046814033

main90468-14033

9163160825

main91631-60825

22 parts on this diagram · 2 diagrams in section
