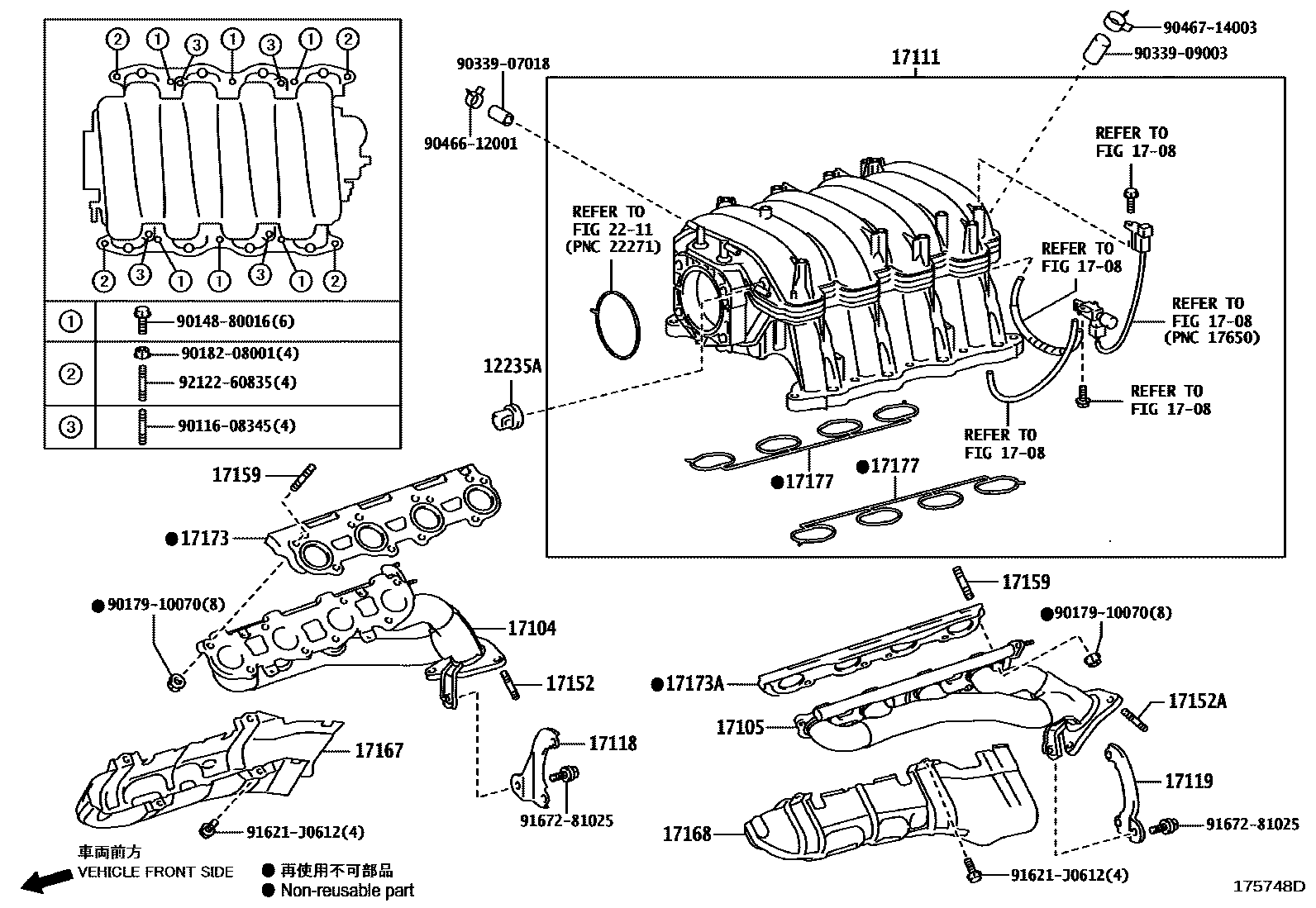

MANIFOLD
12235ACAP, VENTILATION
1708VACUUM PIPING
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17152ABOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211FUEL INJECTION SYSTEM
9011608345
main90116-08345
9014880016
main90148-80016
9017910070
main90179-10070
9018208001
main90182-08001
9033907018
main90339-07018
9033909003
main90339-09003
9046612001
main90466-12001
9046714003
main90467-14003
91621J0612
main91621-J0612
9167281025
main91672-81025
9212260835
main92122-60835
27 parts on this diagram · 2 diagrams in section
