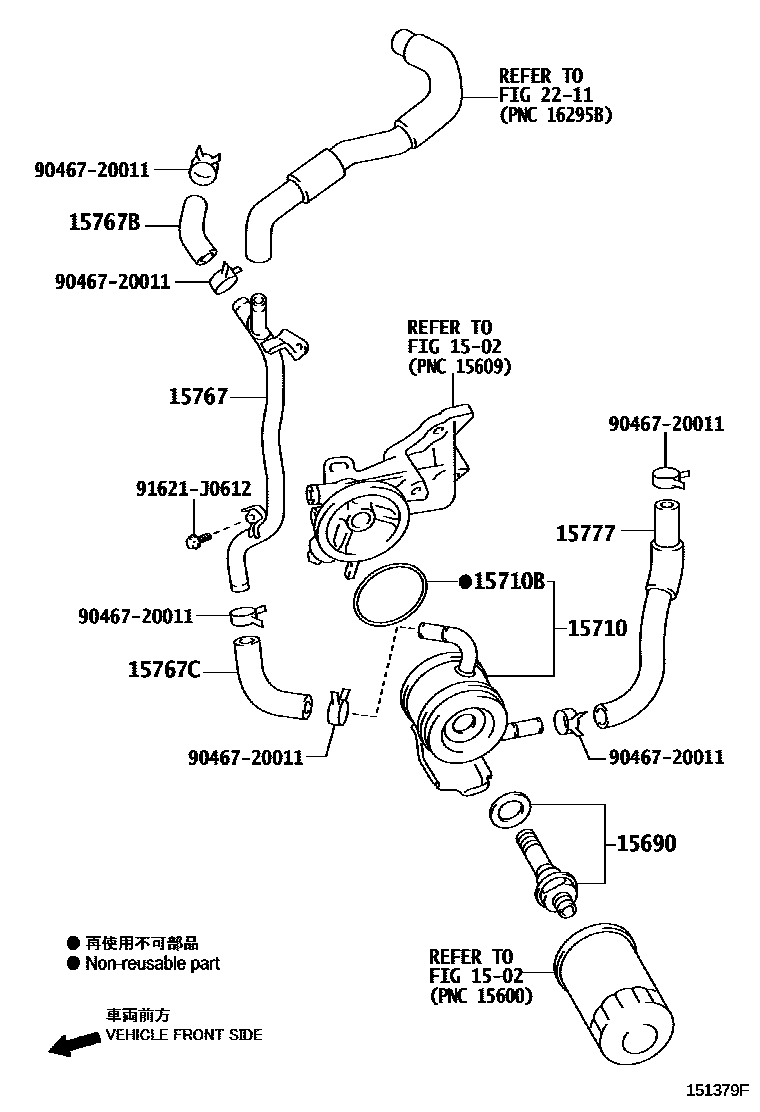

ENGINE OIL COOLER

0001 1 0002 1

1502OIL FILTER

→ Go to FIG 15-02

15690VALVE ASSY, OIL COOLER RELIEF

main15695-50010i2UZFE..UZJ200200709-200905

15710COOLER ASSY, OIL

main15710-38021i1URFE..URJ202201508-202104

main15710-50090i2UZFE..UZJ200200709-200905

15710BRING, O(FOR OIL COOLER)

main90301-21017×2i1URFE..URJ202200905-201201

main90301-67004i2UZFE..UZJ200200709-200905

15767PIPE, OIL COOLER

main15767-50111i2UZFE..UZJ200200709-200905

15767BHOSE, WATER BY-PASS, NO.4

main16281-50030i2UZFE..UZJ200200709-200905

15767CHOSE, WATER BY-PASS, NO.5

main16282-50070i2UZFE..UZJ200200709-200905

15777HOSE, OIL COOLER

main15777-50100i2UZFE..UZJ200200709-200905

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9046720011

main90467-20011

91621J0612

main91621-J0612

11 parts on this diagram · 2 diagrams in section
