TELEPHONE & MAYDAY

0001 1�����A/C 0002 1�����A/C

86705CORD SUB-ASSY, TELEPHONE ANTENNA

main86705-60070iHDJ101200308-200505

main86705-60080iUZJ100..CYG,VXL200308-200505

86741ATRANSCEIVER, TELEMATICS

main86741-46010iHDJ101,UZJ100..CYG,VXL200308-200505

86761ROD, TELEPHONE ANTENNA

main86761-50041iHDJ101,UZJ100..CYG,VXL200308-200505

86762BASE, TELEPHONE ANTENNA

main86762-60020iHDJ101,UZJ100..CYG,VXL200308-200505

87268EPROTECTOR, TELEPHONE ANTENNA

main87268-60040iHDJ101,UZJ100..CYG,VXL200308-200505

8671960090BRACKET, TELEPHONE

main86719-60090

8671960100BRACKET, TELEPHONE

main86719-60100

9011906915

main90119-06915

9014850007

main90148-50007

9018206003

main90182-06003

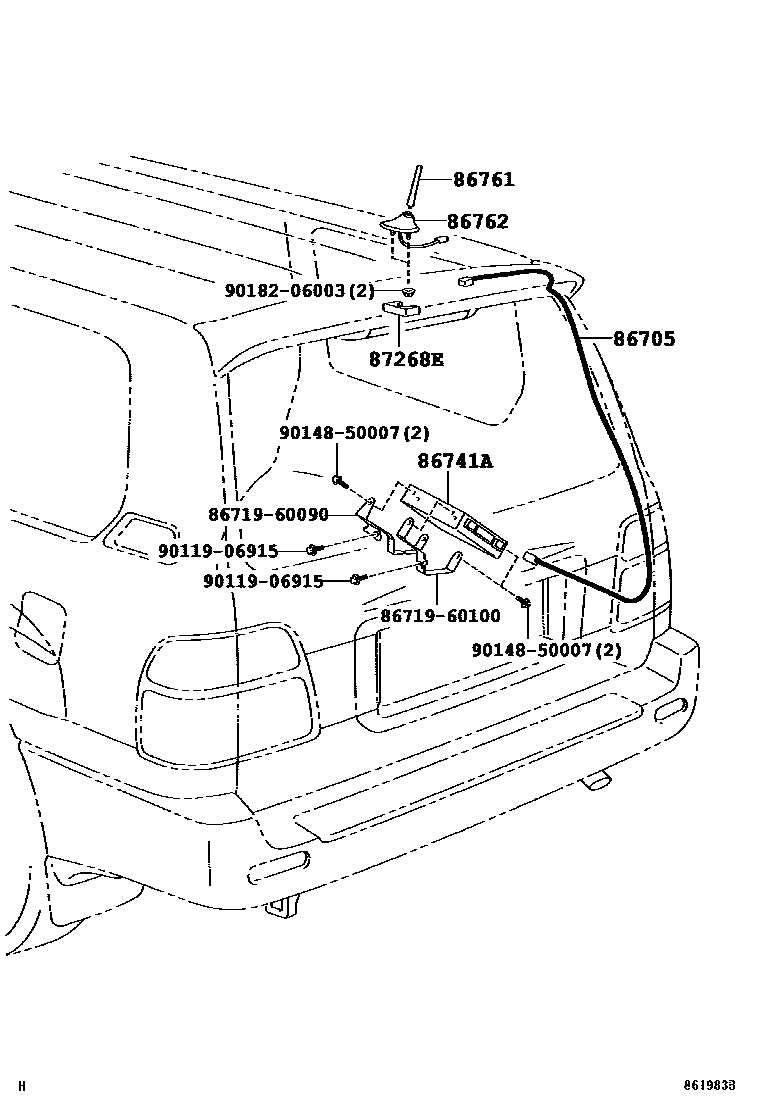

10 parts on this diagram · 2 diagrams in section
