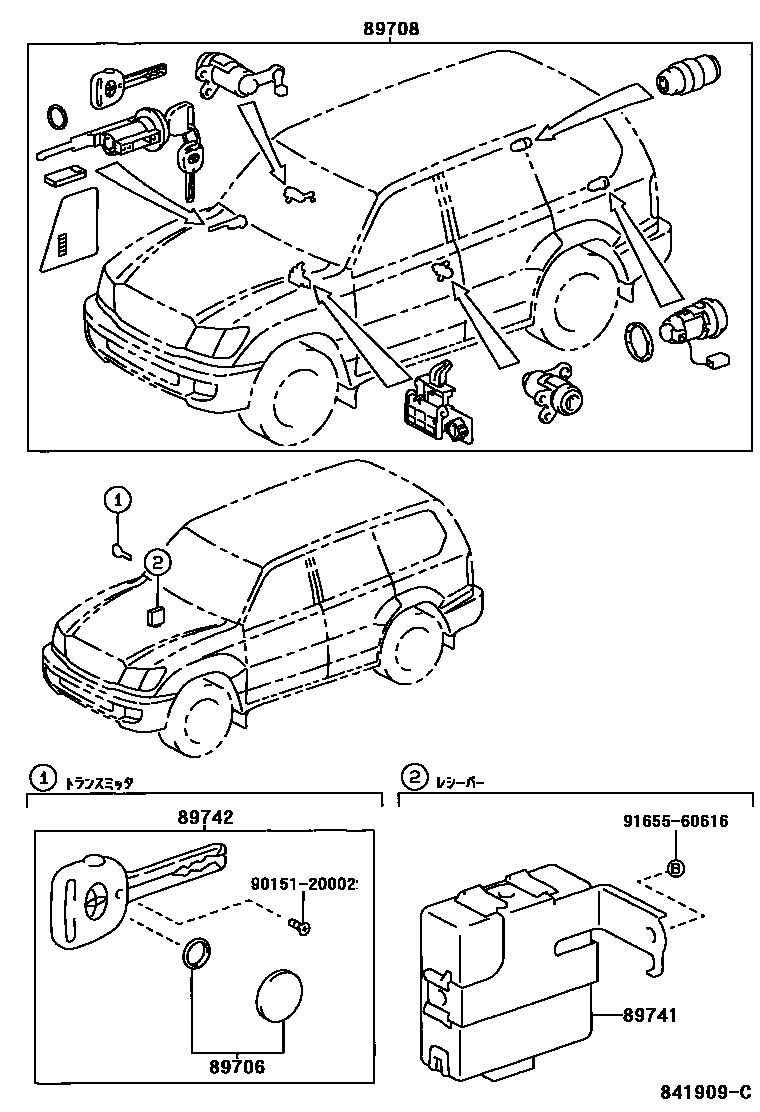

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1

89706BATTERY SET, TRANSMITTER

main89706-50010iHDJ101,UZJ100199801-200005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-60260iHDJ101,UZJ100..VX,VXL199801-200005

main89708-60270iHDJ101,UZJ100..VX,VXL199801-200005

main89708-60280iUZJ100..CYG199901-200005

main89708-60290iUZJ100..CYG199901-200005

89741RECEIVER, DOOR CONTROL

main89741-60050iHDJ101,UZJ100199801-200005

main89741-60051iHDJ101,UZJ100200005-200208

main89741-60400iHDJ101,UZJ100200208-200505

89742TRANSMITTER, DOOR CONTROL

main89742-60060iHDJ101,UZJ100199801-200005

9015120002

main90151-20002

9165560616

main91655-60616

6 parts on this diagram · 3 diagrams in section
